Produkt-Parameter

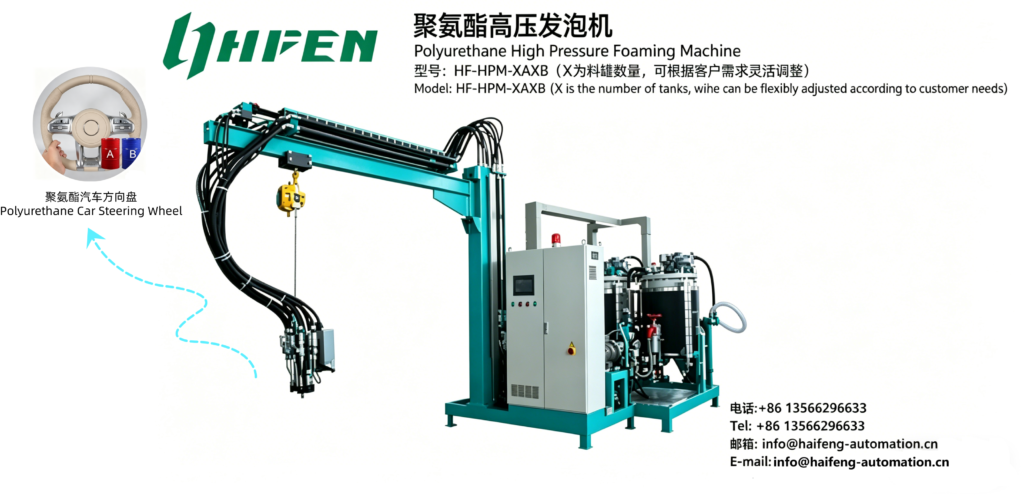

| Parameter | Model：HF-HPM-1A1B-SteeringWheel |
|---|---|
| Gießgeschwindigkeit | 50～800 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:50~70 |
| Tankinhalt | 100L / 150L (Optional, Per Tank) |
| Mischkopfgeschwindigkeit | 6000～10000 r/min |
| Dosiergenauigkeit | ≤±0.3% (Full Dynamic Range) |
| Tank-Konfiguration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 20～45℃ |
| Mischungsdruck | 10～18 MPa |
| Vakuum-Entschäumung | Keine |
| Reinigungssystem | Automatic Air Purge Cleaning (Solvent-Free & Eco-Friendly) |
| Strom | 5,5～7,5 kW |
| Kontrollsystem | PLC + Touchscreen + Speicherung mehrerer Formeln |
| Application System | Polyurethane Integral Skin Foam System |
| Garantie | 1 Jahr |
| Zertifizierung | CE, ISO9001 |
Anwendungsszenarien
Specially designed for the integral skin foaming production of automotive steering wheels, armrests and interior parts. Suitable for the precision molding of automotive interiors, meeting the core requirements of smooth surface, moderate hardness, wear resistance, environmental protection and odorless, suitable for the standardized production of auto parts.
Wesentliche Vorteile
Integral skin foaming molding, smooth and flawless steering wheel surface, comfortable hand feeling.
Precision metering control, accurate product size, suitable for precision molds of steering wheels.
Environmentally friendly solvent-free cleaning, in line with automotive interior environmental protection standards, no odor.
Compact and flexible equipment, suitable for small-batch, multi-style steering wheel production.
