Product Description

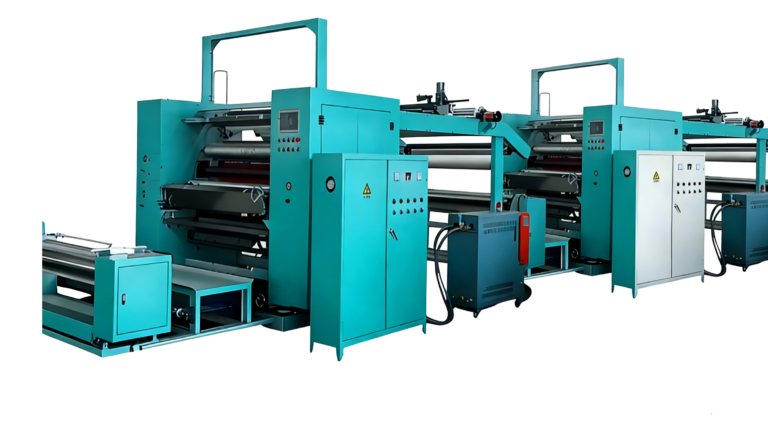

The GJJF-2X4-S6 Coating Machine is a state-of-the-art integrated system, built for efficiency and precision in complex coating tasks. It orchestrates a fully synchronized operation across four key processes—material management, delivery, mixing, and application—all governed by an advanced control system to maintain exacting standards throughout the production cycle.
Key Features
Dual-station efficiency
It’s equipped with two independent workstations that can operate simultaneously or alternately, ramping up production output significantly while keeping coating quality consistent across both stations.
Precision coating control
Thanks to advanced servo-driven coating mechanisms and high-precision metering systems, it delivers exceptional control over coating thickness (typically within ±0.01mm) and ensures even material distribution. This makes it suitable for both thin-film and thicker-layer coating requirements.
Versatile material compatibility
The machine works with a wide variety of coating materials—from adhesives and paints to inks and functional coatings. With adjustable coating speeds (5-50m/min) and pressure settings, it seamlessly handles different material viscosities and substrates.
Intuitive smart operation
It features a user-friendly touchscreen paired with an intelligent control system. Operators can easily preset and tweak parameters like coating speed, temperature, and pressure. Plus, real-time monitoring of coating status and instant fault alerts make troubleshooting quick and straightforward.
Product Parameters
| Parameter | Model: LJJ-1A1B-120S |
|---|---|
| Feed Tanks | 2 (A, B) |
| Tank Volume (L) | 120 |
| Rated Voltage (V) | 380 |
| Unit Power (kW) | 10 |
| Metering Pumps | 2 (1 for A, 1 for B) |
| Pump Speed Range (r/min) | 60-280 |
| Mixing Head Speed (r/min) | 8600 (fixed or adjustable) |
| Metering Accuracy (%) | ≤ ±1.0 |
| Max. Output (g/s) | 100 |
| Control System | Integrated PC + touchscreen |
| Remote Interface | Optional (RS485/Ethernet) |
| Cleaning System | Automatic solvent purge |
Application Areas
| Footwear: Single-density shoe soles, sandal straps, basic insoles. |
|
| Furniture & Bedding: Standard mattress cores, sofa cushion blocks, pillow interiors. |
|
| Packaging: Protective foam blocks, corner pads, shaped inserts. |
|
| Industrial: Simple gaskets, sealing strips, vibration-damping pads. |
|
| General Consumer Goods: Basic sports mats, simple toy components, household padding. |
|
Technical Highlights
Recipe Management
Store and recall multiple formulations for repeatable production.
Process Data Logging
Record key parameters to ensure quality traceability.
Reliable Mechanical Design
Durable components for continuous operation in industrial environments.
Optional Colorant Integration
Add a basic color-dosing system for product customization.
Why Choose Haifeng's 1A1B Low-Pressure Foaming Machine?
Simplicity & Reliability
Straightforward A+B system ensures easy operation, minimal maintenance, and consistent output.
Proven Cost Efficiency
Lower initial investment and reduced energy consumption deliver a fast return on investment.
Consistent Quality
Precise metering and uniform mixing guarantee product consistency across high-volume runs.
Trusted Support
Backed by Haifeng's global service network and responsive technical assistance.
