Product Description

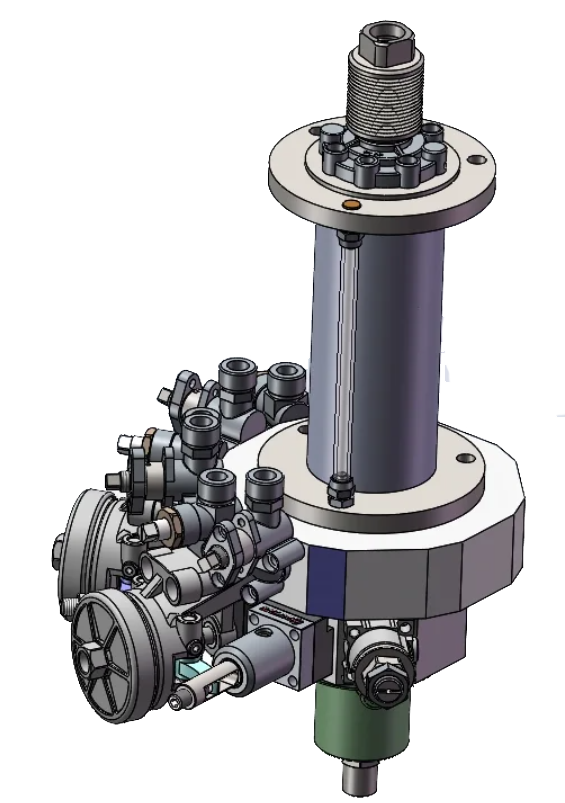

This T-type mixing head is a deeply customized core component for modern polyurethane sole production. Centered on intelligent proportioning technology, it integrates a precision molding mixing head, a polyurethane AB material circulation system, a high-efficiency temperature control module and a fully automatic cleaning device, with a mixing uniformity of ≥98%. The unique T-type flow channel design enables sufficient convection and fusion of raw materials. It can accurately adapt to the diversified production needs of fashion sports shoes, protective safety shoes, casual sandals and other soles, efficiently break through the efficiency and quality bottlenecks of shoe material production, and is a core equipment for automatic pouring of high-end soles.
Key Features
0.1% precision metering output
High-precision metering pump cooperates with needle valve injection head to achieve extremely accurate raw material proportioning output.
Two-color/complex pattern integrated molding
Supports X/Y axis linkage trajectory programming, realizes two-color layered pouring and accurate reproduction of three-dimensional patterns, and enhances product added value.
High-efficiency energy-saving temperature control
The mold is embedded with a multi-layer circulating water circuit, which improves heating efficiency by 40% and reduces comprehensive energy consumption by 65%.
Anti-blocking and anti-coagulation stable operation
Patented pipeline structure + intelligent preheating module prevents solidification of high-viscosity raw materials, reduces equipment failure rate by 80%.
Uniform mixing with T-type flow channel
Unique convection and collision structure fundamentally ensures uniform fusion of raw materials and reduces local performance deviation of finished products.
Fully automatic cleaning and maintenance
Equipped with an automatic cleaning device without manual disassembly, ensuring smooth continuous production.
Product Parameters
| Item | Performance Specification |
|---|---|
| Mixing Head Type | T-type mixing head for polyurethane sole pouring |
| Raw Material Mixing Uniformity | ≥98% |
| Metering Output Precision | 0.1% level |
| Molding Process | Two-color layered pouring, three-dimensional pattern integrated molding |
| Heating Efficiency | Increased by 40% |
| Comprehensive Energy Consumption | Reduced by 65% |
| Equipment Failure Rate | Reduced by 80% |
| Flow Channel Structure | Exclusive T-type convection and collision flow channel |
| Applicable Scenarios | Automatic pouring production of various polyurethane soles |
Application Areas
Polyurethane Shoe Material Intelligent Manufacturing Field
Specially customized for modern sole automatic production lines, it is widely suitable for the pouring and molding of all kinds of polyurethane soles such as fashion sports shoes, protective safety shoes and trendy sandals. It can meet the production needs of high-end soles with two-color, three-dimensional patterns and multi-layer structures, and is a core supporting component for shoe enterprises to realize efficient, high-precision and large-scale sole manufacturing.
Technical Highlights
T-type convection flow channel design for uniform mixing without deviation
The original T-type flow channel layout enables polyurethane raw materials to fully convect and collide in the mixing chamber for more uniform fusion, fundamentally eliminating local deviation of finished product density and hardness, and ensuring the consistency of sole performance.
0.1% high-precision proportioning for more stable molding quality
The high-precision metering pump and needle valve injection head cooperate accurately to achieve 0.1% raw material proportioning output. Combined with a mixing uniformity of ≥98%, the quality of each sole is highly consistent.
Two-color three-dimensional integrated molding to maximize product added value
Equipped with X/Y axis linkage trajectory programming technology, it supports two-color layered pouring and accurate reproduction of complex three-dimensional patterns. It can form high-end soles in one step without secondary processing, greatly improving the market competitiveness of products.
Energy efficiency optimization + anti-blocking design for more worry-free production
The multi-layer circulating water circuit of the mold increases heating efficiency by 40% and directly reduces energy consumption by 65%. The patented pipeline + intelligent preheating completely prevents blocking and coagulation, reduces the failure rate by 80%, and supports 7×24 hours of continuous and stable production.
Why Choose Haifeng Automation's T-type Mixing Head?
Exclusive customization for sole production with far better adaptability than general models
It deeply fits the polyurethane sole pouring process and shoe material production characteristics, specially designed for all kinds of soles such as sports shoes, safety shoes and sandals, and is more suitable for the actual production needs of shoe enterprises than general mixing heads.
High-precision molding + two-color integration to easily produce high-end soles
0.1% metering precision + three-dimensional pattern integrated molding technology can easily produce high-end two-color, multi-layer and complex pattern soles, helping enterprises expand high-end product lines.
Energy saving, low consumption and stable anti-blocking to greatly reduce comprehensive costs
Energy consumption is reduced by 65%, failure rate is reduced by 80%, and losses of electricity, maintenance and downtime are reduced. The cost performance is far higher than that of ordinary equipment for long-term use.
Intelligent fully automatic operation to reduce costs and improve efficiency in one step
Intelligent proportioning, automatic cleaning and continuous production design greatly reduce manual operation, improve production line efficiency, and easily break through the efficiency and quality bottlenecks of shoe material production.
