Máquina de fundição de elastómero de poliuretano (rolo de borracha industrial)
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Roller-Industrial |
|---|---|
| Pouring Rate | 80～1200 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:3~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 6000～10000 r/min |
| Dynamic Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + additive/color paste tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Sistema de limpeza | High-pressure circulating cleaning + air purge cleaning |
| Power | 7.5～11 kW |
| Sistema de controlo | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

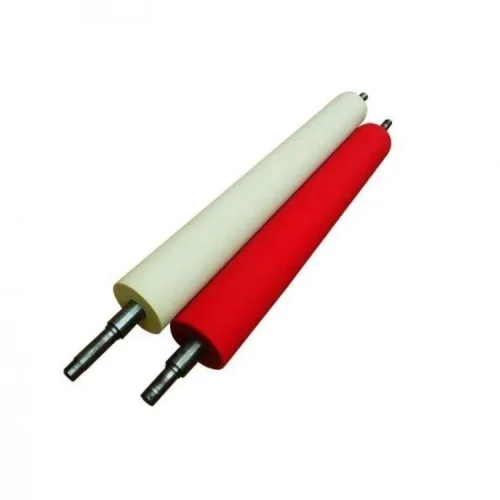

Specially designed for the production of general industrial rubber rollers in printing, conveying, paper making, machine tools and other industries. It can flexibly switch between MOCA wear-resistant and pressure-resistant formula and BDO high-resilience formula, support the addition of color paste and functional additives, adapt to the mass production of multi-specification and multi-performance industrial rubber rollers, and meet the core needs of heavy load, long life and stable operation.
Core Advantages
2A2B configuration is compatible with color paste and wear-resistant additives, which can match colors and upgrade the wear-resistant performance of rubber rollers as needed.
General dual chain extender process, strong adhesion between rubber layer and roller core, not easy to delaminate, suitable for heavy load operation.
Stable medium-flow pouring, uniform rubber layer thickness, high mass production efficiency and stable yield.
Vacuum defoaming ensures dense rubber layer without bubbles, and precise temperature control guarantees the performance consistency of rubber rollers.
