Produkt-Parameter
| Parameter | Model：HF-CPUE-2A2B-Roller-ColdRoll |
|---|---|
| Gießgeschwindigkeit | 100–1500 g/s |
| Rohmaterial-Verhältnis | MOCA: 100:10~13; BDO: 100:4~6 |
| Tankinhalt | 220 L |
| Mischkopfgeschwindigkeit | 7000～11000 U/min |
| Messgenauigkeit | ≤±0.5% (Full range) |
| Tank-Konfiguration | 2A2B two-component + wear-resistant & high-temperature resistant additive tank |
| Kontrolle der Materialtemperatur | Behälter A: 30~80℃; Behälter B: MOCA(90~115℃)/BDO(25~50℃) |
| Vakuum-Entschäumung | Vakuum ≤-0,095MPa |
| Reinigungssystem | Automatische Zirkulation + Luftreinigung |
| Strom | 11～15 kW |
| Kontrollsystem | PLC + Touchscreen + Mehrformelspeicher |
| Anwendbares System | CPU-Prepolymer + MOCA/BDO-Kettenverlängerer |
| Garantie | 1 Jahr |
| Zertifizierungen | CE, ISO9001 |
Anwendungsszenarien

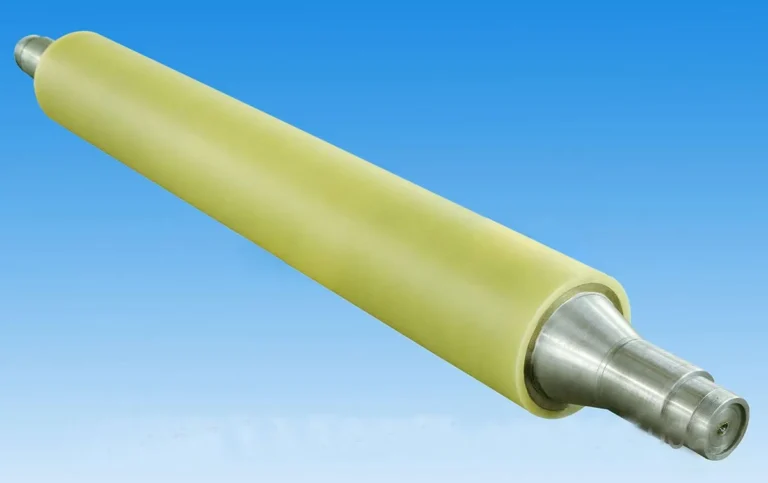

Specially designed for large-scale production of cold rolling support rollers in metallurgical industry, widely suitable for cold rolling production lines of steel plates, aluminum plates. It is used for plate support, guidance and compression, can withstand high temperature and high load for a long time, ensure stable rubber layer, improve the precision of cold rolled plates, avoid scratches and wrinkles, and meet the production needs of metallurgical heavy equipment.
Wesentliche Vorteile
2A2B configuration with wear-resistant and high-temperature resistant additives, the rubber layer is impact-resistant and tear-resistant, suitable for harsh high-temperature and high-load cold rolling conditions.
Large flow is suitable for large-size roller molds, full filling and strong adhesion, excellent dynamic balance performance, ensuring the stability of cold rolling support.
Support MOCA/BDO dual chain extender switching, flexibly adjust hardness and resilience, suitable for production of different cold rolled plates.
Stable and durable operation, resistant to coolant and rolling fluid erosion, non-sticky, suitable for mass continuous production in metallurgical industry.
