Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Roller-ColdRoll |
|---|---|
| Pouring Rate | 100–1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + wear-resistant & high-temperature resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 11～15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

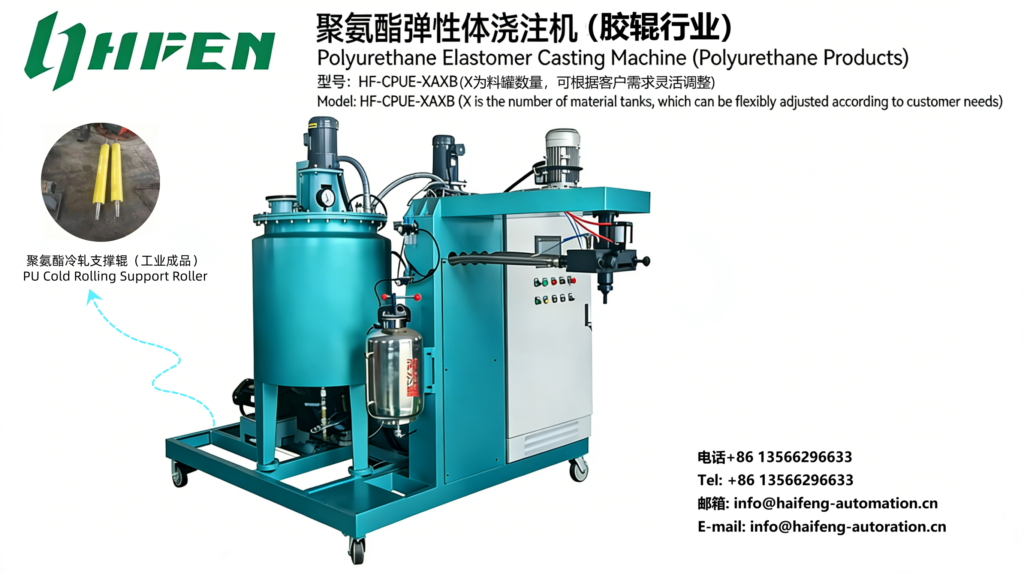

Specially designed for large-scale production of cold rolling support rollers in metallurgical industry, widely suitable for cold rolling production lines of steel plates, aluminum plates. It is used for plate support, guidance and compression, can withstand high temperature and high load for a long time, ensure stable rubber layer, improve the precision of cold rolled plates, avoid scratches and wrinkles, and meet the production needs of metallurgical heavy equipment.
Core Advantages
2A2B configuration with wear-resistant and high-temperature resistant additives, the rubber layer is impact-resistant and tear-resistant, suitable for harsh high-temperature and high-load cold rolling conditions.
Large flow is suitable for large-size roller molds, full filling and strong adhesion, excellent dynamic balance performance, ensuring the stability of cold rolling support.
Support MOCA/BDO dual chain extender switching, flexibly adjust hardness and resilience, suitable for production of different cold rolled plates.
Stable and durable operation, resistant to coolant and rolling fluid erosion, non-sticky, suitable for mass continuous production in metallurgical industry.
