Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Photovoltaic |
|---|---|
| Pouring Rate | 30–600 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~5/td> |
| Tank Capacity | 50 / 100 L |
| Mixing Head Speed | 8000～12000 r/min |
| Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 2A2B two-component + color paste tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 5.5~7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

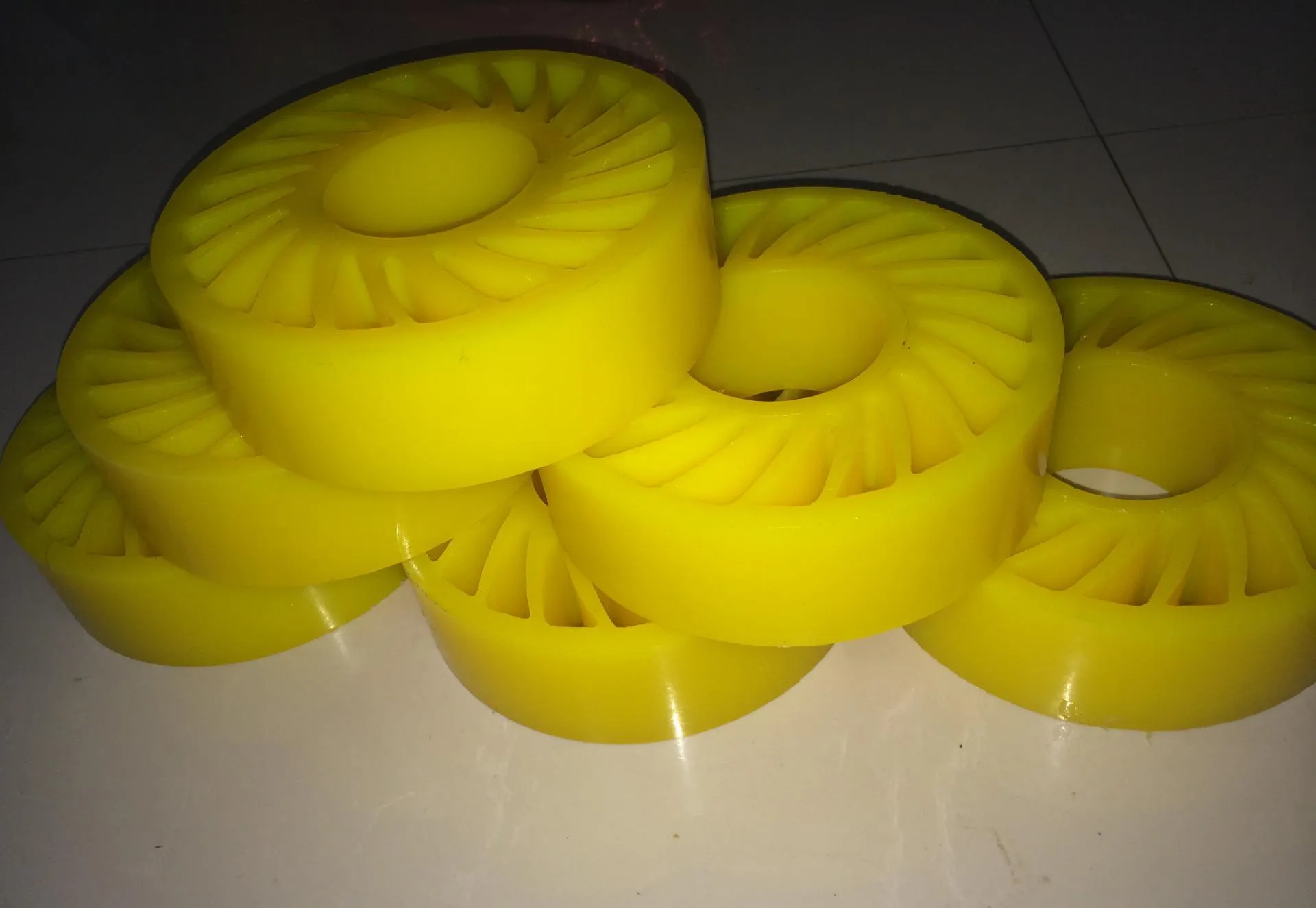

Specially designed for the precision production of silicon wafer conveying guide rollers in the photovoltaic industry, widely suitable for photovoltaic module production lines and silicon wafer cutting and conveying equipment. It supports BDO high-resilience formula, meeting the core needs of clean workshop production, scratch-free conveying and high-stable operation, ensuring no damage and no pollution during the production of silicon wafers and photovoltaic modules.
Core Advantages
2A2B configuration with color paste tank, flexible color matching to meet the standardized appearance requirements of photovoltaic equipment accessories.
Support BDO high-resilience process, smooth and delicate product surface, no scratch on silicon wafers and precision photovoltaic components.
Dynamic ultra-high precision metering, precise molding size, stable operation without shaking, suitable for high-speed conveying of photovoltaic production lines.
Vacuum defoaming ensures dense products without pores, high cleanliness, perfectly suitable for dust-free production requirements of photovoltaic workshops.
