Product Parameters
| Parameter | Model：HF-CPUE-1A1B (Industrial Weighing Wheel) |
|---|---|
| Pouring Rate | 50～800 g/s |
| Raw Material Ratio | Prepolymer:MOCA=100:9~12; Prepolymer:BDO=100:3~6 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 7000～11000 r/min |
| Dosing Accuracy | ≤±0.4% |
| Tank Configuration | 1A1B Two-Component Independent Temperature Control |
| Material Temperature Control | Tank A 30~80℃; Tank B MOCA(90~110℃)/BDO(25~50℃) |
| Vacuum Defoaming | Standard |
| Cleaning System | Automatic Circulation + Air Blowing Cleaning |
| Power | 7.5～11 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios

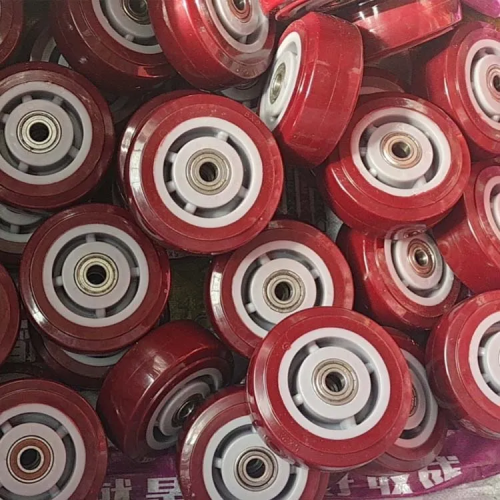

Application ScenariosSuitable for the production of polyurethane industrial weighing wheels for electronic scales, floor scales and storage handling equipment. It meets the industrial requirements of high load-bearing, deformation resistance, low rolling resistance and stable operation, and is suitable for high-strength CPU processes with MOCA/BDO dual chain extenders.
Core Advantages
Support fast switching of MOCA/BDO dual chain extenders, balancing high load-bearing and high wear resistance.
Dosing accuracy ≤±0.4%, uniform product size without affecting the accuracy of weighing equipment.
Vacuum defoaming + high-efficiency mixing, no bubbles, compact structure, suitable for high-frequency use.
Independent temperature control + automatic cleaning, stable process, meeting industrial continuous mass production needs.
