Product Parameters

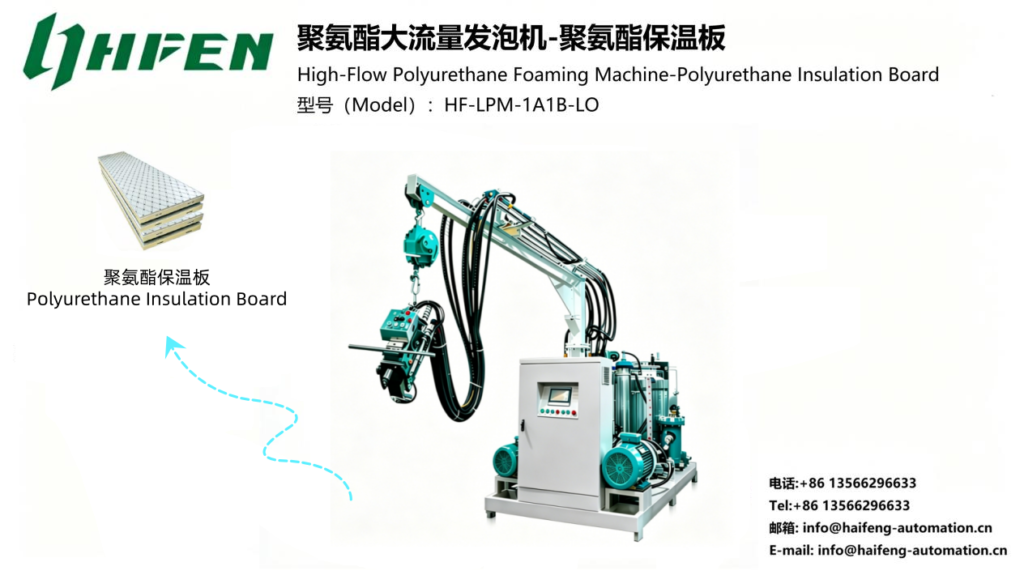

| Parameter | Model：HF-LPM-1A1B-LO |
|---|---|
| Discharge Rate | 1kg/min, 5kg/min, 10kg/min, 15kg/min (Non-standard available) |
| Material Ratio | A:B=1:3-3:1 |
| Components | 2-6 (Customizable) |
| Tank Capacity | Tank A: 250L/500L/1000L; Tank B: 200L/450L/800L (Non-standard available) |
| Power | 18kw, 23kw, 32kw, 56kw, 108kw (Non-standard available) |
| Mixing Head Speed | 2000-6000rpm |
| Metering Accuracy | ±1% |
| Temperature Control Accuracy | ≤±1℃ |
| Weight | 2000kg |
| Warranty | 1 Year |
| Certification | ISO 9001:2015, Complies with EU Machinery Directive & Electrical Safety Standards |
Application Scenarios
This equipment is specially designed for large-scale production of insulation-filled polyurethane products and supports continuous panel production lines. It is widely used in the production of floor heating panels, integrated wall panels, cold storage panels, insulation water tanks, water heater insulation layers, kitchen insulation panels, rice steamer insulation layers, refrigerated truck insulation panels, etc., which can effectively improve thermal insulation performance and reduce production costs.
Core Advantages
Ultra-high Production Efficiency
Ultra-high flow dynamic injection design with precise time control, increasing production efficiency by more than 50% compared with traditional low-pressure equipment, greatly shortening the molding cycle.
High-pressure Self-cleaning Gun Head
Automatically cleans with high pressure after production, no chemical cleaning agents needed, saving consumable costs and reducing downtime for maintenance.
Precise Intelligent Control
Equipped with PLC control system as standard, accurately controls injection time, material ratio and temperature, with fault self-check function, reducing manual errors.
Excellent Temperature Control System
Three-layer jacketed stainless steel tank + full-process heating pipeline, temperature deviation ≤±1℃, ensuring fine cells and stable product performance.
