Many tire manufacturers face bubble defects, hardness inconsistency, short service life and low production efficiency when manufacturing PU solid tires. Our Haifeng HF-LPM-1A1B-T is specially optimized for solid tire production, with vacuum defoaming and full-chain constant temperature control to deliver puncture-resistant, zero-porosity and long-lasting solid tires for stable mass production.
Technical Specifications
Technical Specifications
| Paramètres | Detailed Specifications |
|---|---|

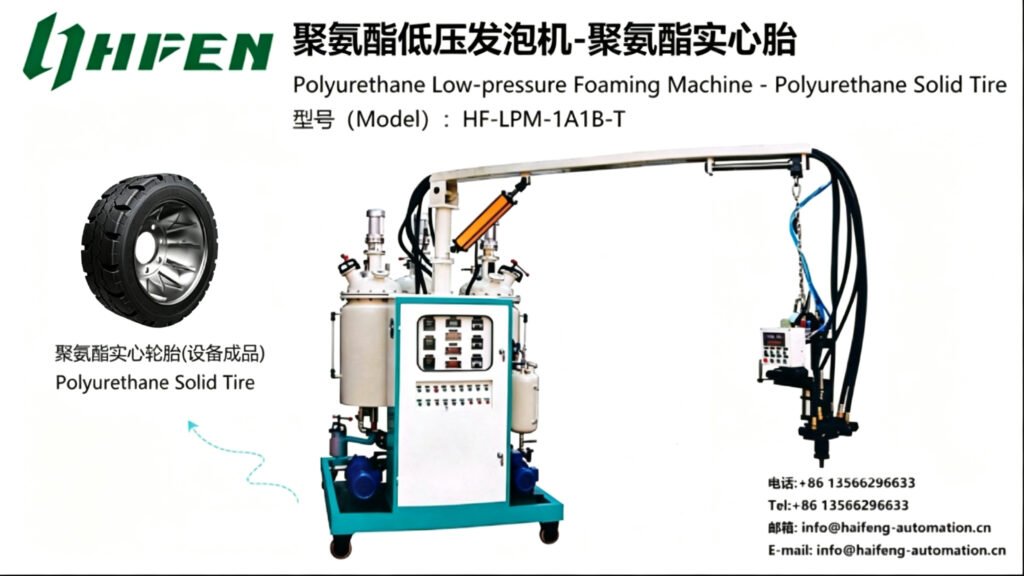

| Model | HF-LPM-1A1B-T (Customizable flow configurations. Also available: Machine à basse pression pour polyuréthane destinée au secteur OTR) |
| Output Flow | 1–5kg/min / 3–12kg/min / 10–30kg/min, non-standard customization supported |
| Mixing Ratio | A:B = 1:1 |
| Raw Material Tank Capacity | 200L standard tank |
| Installed Power | 8–9kW |
| Vitesse de la tête de mélange | 4000–6000rpm |
| Metering Accuracy | ≤±0.5% |
| Total Machine Weight | 1000kg |
| Garantie | 1-year full machine warranty |
| Certifications | CE standard, EN 60204-1 electrical safety, ISO9001 quality system. View 【内链：About Us】 for full certification details |
| Brand | Haifeng |
Scénarios d'application
- AGV robot wheels and automated guided vehicle solid tires
- Electric forklift and warehouse forklift solid tires
- Automobile spare tires and emergency spare wheels
- Airport baggage trailer tires and flatbed cart wheels
- Light-duty to medium-heavy duty solid tires of various specifications
Avantages principaux
1. Superior Tire Performance & Low Reject Rate
Specially optimized for high-hardness and high-filling PU solid tire systems, finished tires deliver excellent puncture and cut resistance, meeting complex ground requirements of various vehicles. Service life is over 20% longer than ordinary tires. High-precision metering pump with patented mixing head ensures ±0.5% ratio accuracy, completely eliminating material shortage and hardness inconsistency caused by ratio imbalance.
2. Vacuum Auxiliary Defoaming, Zero-Porosity Tire Cross-Section
Micro air bubbles trapped during raw material mixing will seriously reduce wear resistance and tear strength of solid tires. This machine can be equipped with tank vacuum degassing module and mixing head negative pressure defoaming system, which significantly reduces air content in mixed materials. The finished tire cross-section has no visible pores, effectively improving first-pass yield.
3. Strong Flexible Production Capacity
Wide flow range adjustment supports different size tire production. By replacing metering pumps, one machine can adapt to products from small car spare tires to heavy-duty forklift tires without purchasing additional equipment, providing high investment flexibility.
4. Intelligent Full-Chain Temperature Control, Consistent Batch Quality
PU solid tires are highly sensitive to mold temperature; excessive temperature difference causes bubbles or uneven curing. This machine adopts full-chain closed-loop temperature management from raw material storage to pouring outlet: independent tank circulation temperature control system, insulated pipeline water jacket for heat compensation, and dedicated mixing head temperature control channel. Temperature difference is strictly controlled within ±1℃, eliminating internal pores, hardness drift and appearance color difference caused by seasonal or workshop temperature changes, ensuring consistent quality of every batch of solid tires.
5. High Automation & Easy Operation
Equipped with PLC control system, optional remote networking function enables quick fault diagnosis. Automatic monitoring and alarm system triggers alerts for abnormalities. Integrated automatic cleaning and air purge functions reduce manual maintenance workload and improve operational efficiency.
Warranty & After-Sales Service
- 1-year warranty covering all core mechanical and electrical components
- Overseas engineer on-site installation, commissioning and operator training
- Lifetime remote technical support & solid tire formula debugging
- Fast global supply of original spare parts to minimize downtime
- View Cas for our global tire industry project cases
