Paramètres du produit

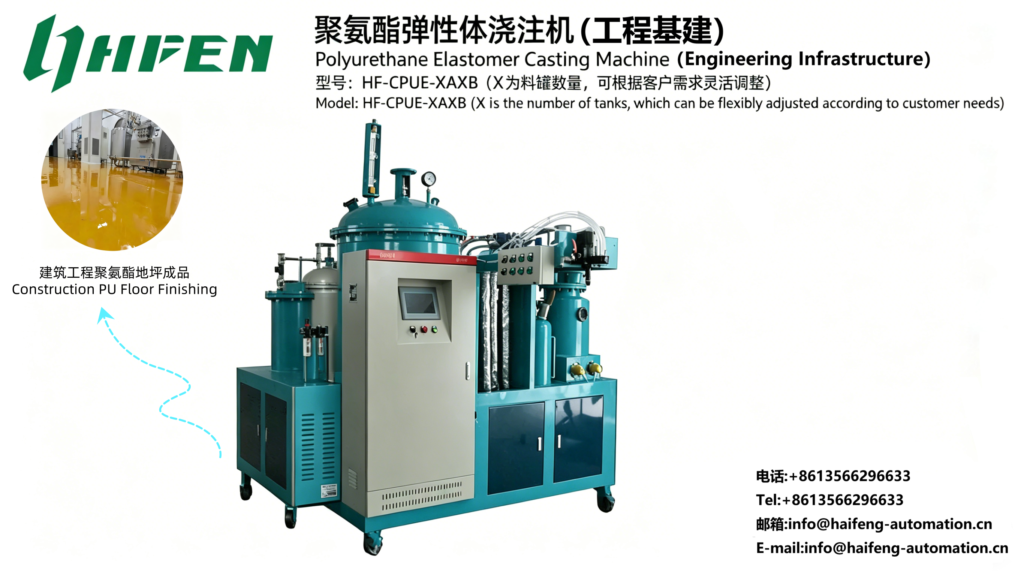

| Paramètres | Model：HF-CPUE-2A2B-Cons-Road |
|---|---|
| Taux d'écoulement | 100～1800 g/s |
| Ratio de matières premières | Polyurethane Prepolymer : BDO Curing Agent = 100:4~7 |
| Capacité du réservoir | 220 / 300 L |
| Vitesse de la tête de mélange | 6000～10000 r/min |
| Dynamic Metering Accuracy | ≤±0.5% (Full range) |
| Configuration du réservoir | 2A2B two-component + wear-resistant additive tank |
| Contrôle de la température des matériaux | Tank A: 30~80℃; Tank B(BDO): 25~50℃ |
| Pouring Pressure | 0.8～2.5 MPa |
| Système de nettoyage | High-pressure circulation cleaning + air purge cleaning |
| Puissance | 7.5～15 kW |
| Système de contrôle | PLC + touch screen + multi-formula storage |
| Système applicable | Polyurethane Elastomer System |
| Garantie | 1 year |
| Certifications | CE, ISO9001, Highway Engineering Certification |
Scénarios d'application

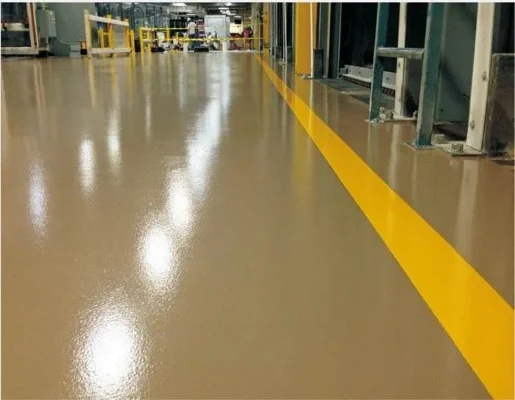

Specially designed for polyurethane elastomer pouring of construction road engineering, suitable for road leveling, crack sealing, damage repair and waterproof layer pouring. It meets the core requirements of fast curing, wear resistance, rolling resistance and strong bonding, can withstand construction vehicle rolling, outdoor temperature changes and rain erosion, and firmly bonds with asphalt/concrete roads to prevent crack expansion and water intrusion, improve road flatness and service life, adapt to large-scale efficient construction, and shorten closed maintenance time.
Avantages principaux
2A2B configuration with wear-resistant additives, excellent wear and rolling resistance, can withstand heavy construction vehicle loads, suitable for high-load road conditions.
BDO fast curing formula, fast room temperature curing and short maintenance time, without delaying construction progress and road traffic.
Precise pouring is suitable for wide cracks and large-area leveling, full filling without voids, high road flatness and stable construction quality.
The machine is easy to move and clean, suitable for complex construction site environments, with precise temperature control and metering to ensure construction consistency.
