Paramètres du produit

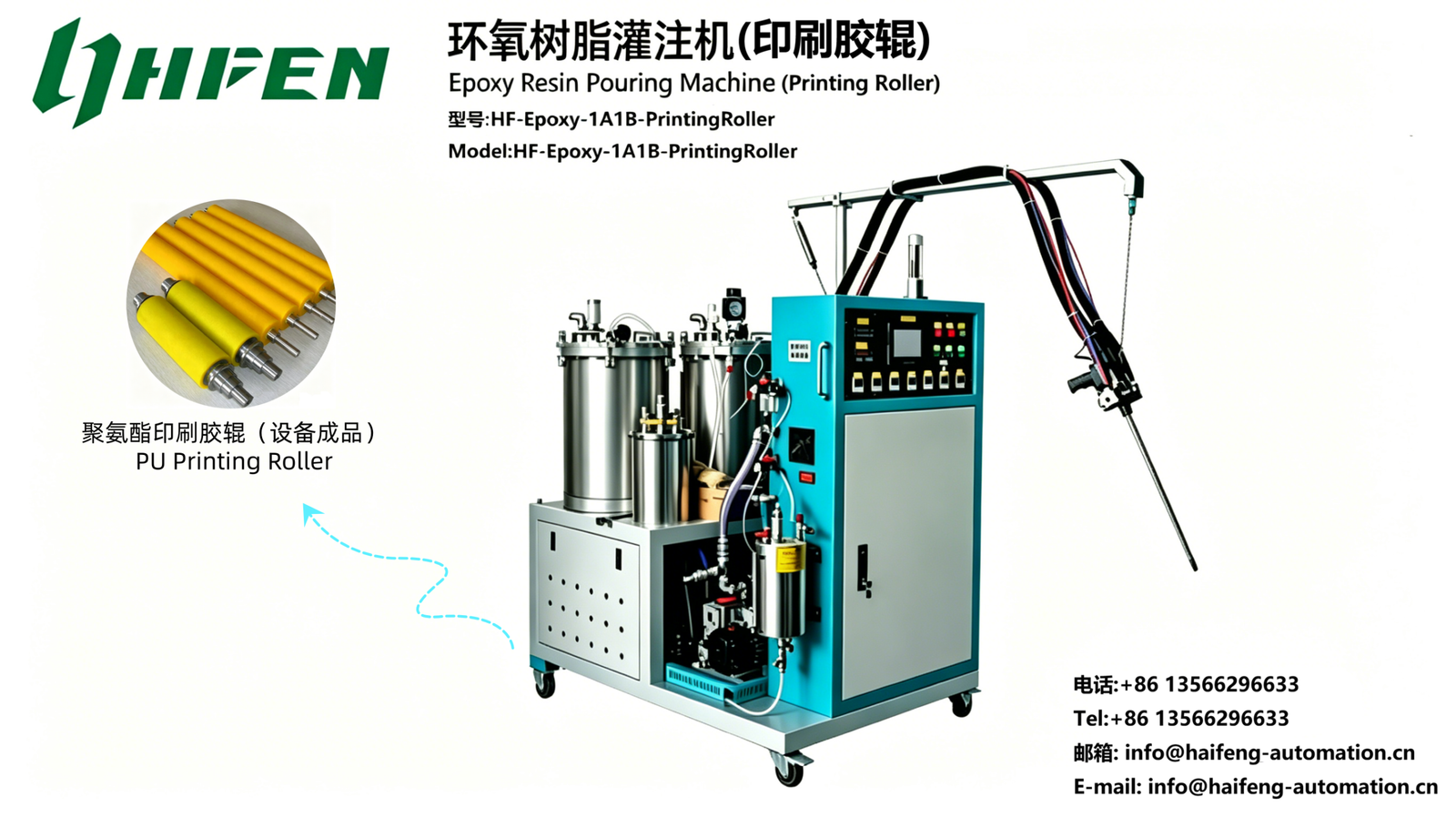

| Parameter | Model：HF-Epoxy-1A1B-PrintingRoller |
|---|---|
| Pouring Rate | 40～800 g/s |
| Raw Material Ratio | Epoxy Resin : Amine Curing Agent = 100:18~25 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 6000～10000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 35~80℃; Tank B (Curing Agent): 25~55℃ |
| Vacuum Defoaming | Standard (Vacuum ≤-0.095MPa) |
| Cleaning System | Automatic circulation cleaning + air purge cleaning |
| Power | 5.5～8 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | Epoxy resin + Amine curing agent |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for epoxy resin casting of printing rollers, suitable for offset, gravure, flexographic, UV printing and other printing equipment. It can produce UV ink rollers, offset rollers and other special products, meeting the core requirements of high hardness, wear resistance, ink corrosion resistance, stable operation and uniform ink transfer in printing. The rubber layer has smooth surface and uniform hardness, ensuring clear printing patterns without ink leakage or scratches. It is suitable for high-speed printing production lines, can replace traditional polyurethane rollers, and improve service life and printing quality.
Core Advantages
1A1B single-formula design, easy to operate and efficient in production change, suitable for precision production of small-batch and multi-specification printing rollers. The rubber layer is free of impurities and burrs, meeting printing cleanliness requirements and not polluting ink.
Dynamic ultra-high precision metering, uniform rubber layer thickness and hardness, qualified radial runout and concentricity, stable operation without shaking, ensuring uniform ink transfer and improving printing yield.
Epoxy rubber layer is wear-resistant, ink and solvent corrosion resistant, no cracking or delamination, its service life is far longer than ordinary polyurethane rollers, effectively reducing replacement cost.
Precise temperature control + vacuum defoaming, dense rubber layer without bubbles, strong adhesion to roller core, suitable for high-load working conditions of high-speed printing, stable operation without failure.
