Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Seal |
|---|---|
| Pouring Rate | 20~500 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~5 |
| Tank Capacity | 50/100L |
| Mixing Head Speed | 8000–12000 r/min |
| Metering Accuracy | ≤±0.3%(Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Sistema de limpeza | Automatic circulation + air purge cleaning |
| Power | 5.5~7.5 kW |
| Sistema de controlo | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001, ISO13485(Medical device) |
Application Scenarios

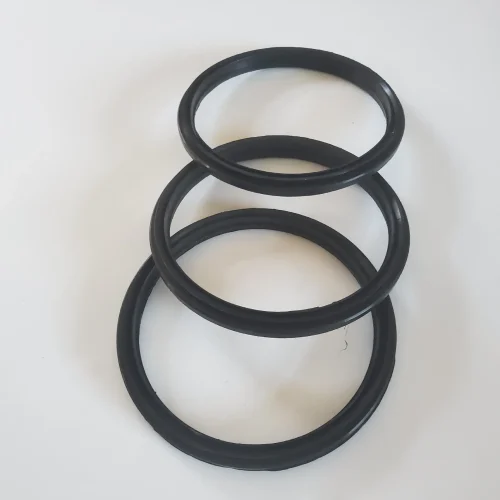

Specially designed for the production of precision seals for hydraulic systems, widely suitable for the casting of high-precision seals such as construction machinery, hydraulic equipment and oil seals. It supports BDO hydrolysis-resistant formula switching, compatible with various water-based and oil-based hydraulic media, meeting the core production requirements of high precision, high wear resistance and anti-leakage for hydraulic seals.
Core Advantages
Support flexible switching of MOCA/BDO dual chain extenders, balancing sealing accuracy with oil and hydrolysis resistance.
Dynamic full-range ultra-high precision metering ensures uniform seal size and effectively improves sealing reliability.
Small flow is precisely suitable for small sealing molds, with high raw material utilization and reduced production loss.
1A1B independent temperature control design, simple operation, suitable for small-batch, multi-specification precision seal production.
