Параметры продукта
| Параметр | Model：HF-CLPS-Batch |
|---|---|
| Single Mold Forming Cycle | 3～10 min/panel |
| Давление смешивания | 8～15 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Соотношение сырья и материалов | Polyether : Isocyanate = 100:100~130 |
| Объем резервуара | 100 / 200 L |
| Контроль температуры материала | 20～45℃ (Two-component Independent Control) |
| Molding System | Hydraulic Mold Clamping + Precise Temperature Control |
| Система очистки | Automatic Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Система управления | PLC + Touch Screen + Single Mold Precise Control |
| Применяемая система | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 20～300 mm |
| Гарантия | 1 год |
| Сертификаты | CE, ISO9001 |
Сценарии применения

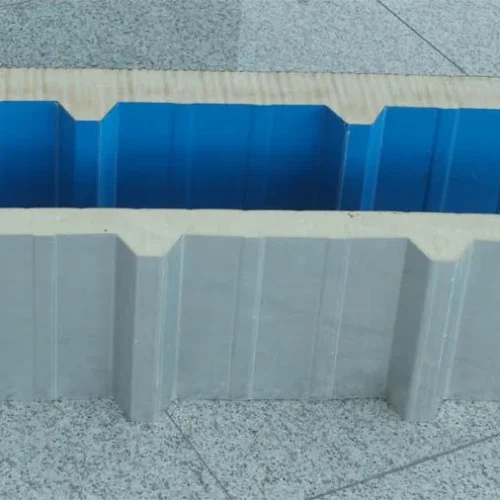

Specially designed for the production of customized polyurethane sandwich panels, special-shaped panels and small-batch special-specification panels. It is suitable for laboratory sampling, non-standard building materials and special insulation panel production, meeting the core needs of flexible mold replacement, panel customization and dense cells, and adapting to small and medium-batch, multi-variety flexible production scenarios.
Основные преимущества
Batch molding, convenient mold replacement, quickly suitable for the production of non-standard/special-shaped/customized panels.
Precise single mold foaming control, wide panel thickness range, stable and defect-free forming quality.
Small equipment footprint and low investment cost, suitable for small and medium capacity and flexible production needs.
Solvent-free automatic cleaning, environmentally friendly and clean, simple operation, easy for new users to master.
