Paramètres du produit
| Parameter | Model：HF-HPM-1A1B-PipeInsulation |
|---|---|
| Pouring Rate | 80～1500 g/s |
| Raw Material Ratio | Polyether:Isocyanate=100:100~130 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 8000～14000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control + circulation stirring |
| Material Temperature Control | 20～45℃ |
| Mixing Pressure | 10～18 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic air purge cleaning (Solvent-free & Eco-friendly) |
| Power | 5.5～7.5 kW |
| Control System | PLC + Touch Screen + Multi-formula Storage |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

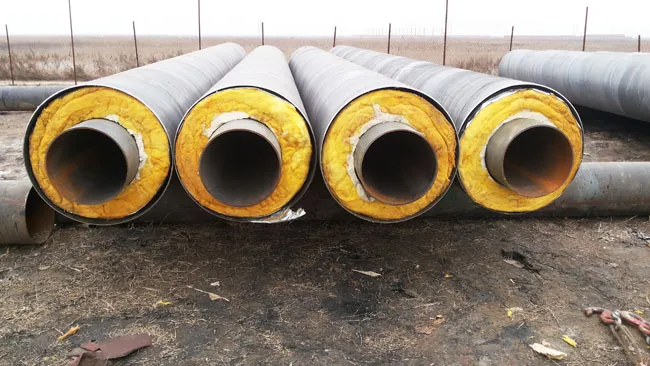

Specially designed for foaming production of thermal insulation pipelines for HVAC, water supply and drainage, chemical industry and thermal transportation. It is suitable for direct burial of pipelines and prefabricated insulation layer pouring, meeting the core needs of sealed insulation, full filling and long-term protection, adapting to on-site and factory prefabrication construction of pipeline projects.
Core Advantages
Suitable for annular pouring of pipelines, full filling without gaps, good thermal insulation and sealing effect.
Uniform rigid foam structure, firm bonding with pipelines, improving the integrity of insulation layer.
Convenient equipment movement, suitable for construction site and factory prefabrication dual-scenario construction.
Stable and accurate ratio, uniform pipeline insulation layer thickness, high construction consistency.
