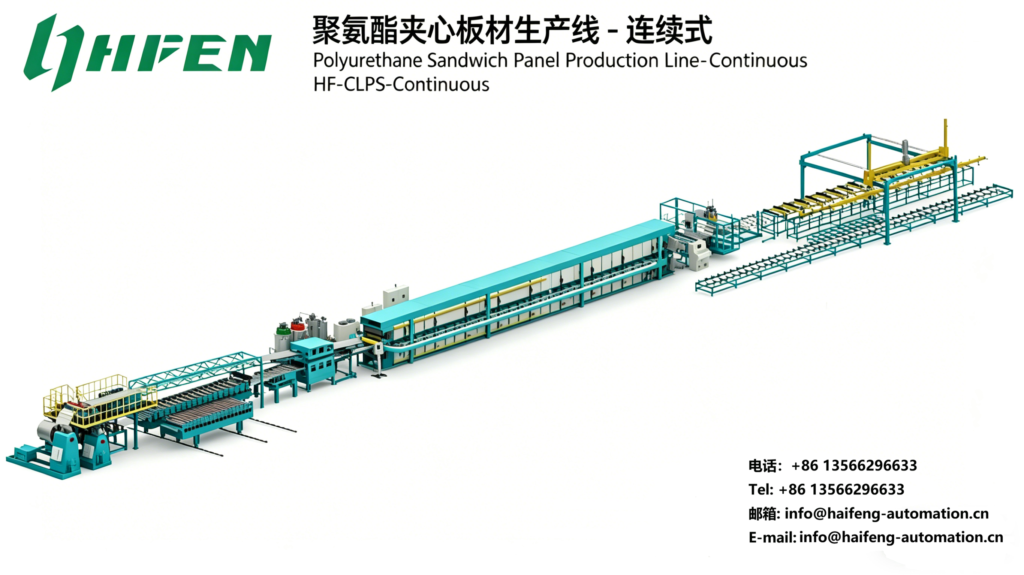

Paramètres du produit
| Paramètres | Model：HF-CLPS-Continuous |
|---|---|
| Production Line Speed | 1～15 m/min (Stepless Speed Regulation) |
| Mixing Pressure | 10～18 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Ratio de matières premières | Polyether : Isocyanate = 100:100~130 |
| Capacité du réservoir | 200 / 300 L |
| Contrôle de la température des matériaux | 20～45℃ (Two-component Independent Control) |
| Heating System | Precise Roller/Mold Temperature Control |
| Système de nettoyage | Automatic Circulation + Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Système de contrôle | PLC + Touch Screen + Full-line Linkage Control |
| Système applicable | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 30～200 mm |
| Garantie | 1 year |
| Certifications | CE, ISO9001 |
Scénarios d'application

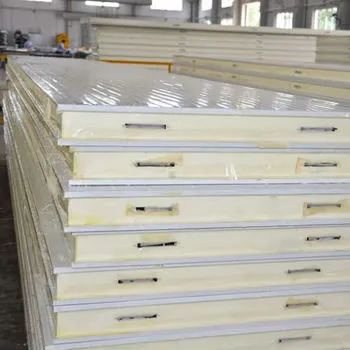

Specially designed for large-scale continuous production of polyurethane sandwich panels used in building exterior wall insulation, cold storage walls, clean workshops and prefabricated buildings. It is suitable for composite of various face materials such as color steel, aluminum foil and paper honeycomb, meeting the core needs of uniform panel density, thermal insulation, flame retardancy, compression resistance and standard size, and adapting to large-scale automatic production lines in the building materials industry.
Avantages principaux
Full-line continuous automatic production with stepless speed adjustment, greatly improving panel production efficiency and capacity.
High-pressure precise mixing and foaming, delicate and uniform panel cells, no voids and no faults, up-to-standard thermal insulation and compression resistance.
Accurate two-component metering and ratio, high raw material utilization rate, reducing production loss and cost.
Full-line linkage intelligent control, easy to operate, suitable for rapid switching production of multi-specification and multi-thickness panels.
