製品パラメーター

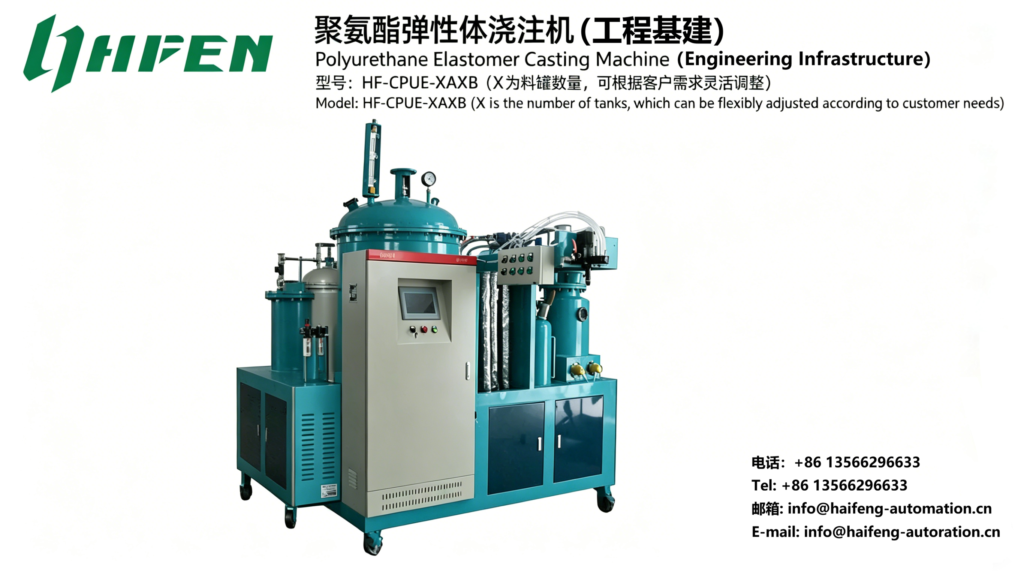

| パラメータ | Model：HF-CPUE-2A2B-Bridge |
|---|---|
| 注入率 | 150–2000 g/s |
| 原材料比率 | Polyurethane Prepolymer : Curing Agent(MOCA)=100:10~14; Polyurethane Prepolymer : Curing Agent(BDO)=100:4~7 |
| タンク容量 | 220/300 L |
| ミキシングヘッド速度 | 6000～10000 r/min |
| 計量精度 | ≤±0.5% (Full range) |
| タンク構成 | 2A2B two-component + anti-corrosion additive tank |
| 材料の温度制御 | Tank A: 30~80℃; Tank B(MOCA):90~115℃, (BDO):25~50℃ |
| Foaming Pressure | 1.0～3.0 MPa |
| 真空脱泡 | Vacuum ≤-0.095MPa |
| 洗浄システム | High-pressure circulating cleaning + air purge cleaning |
| パワー | 8～18 kW |
| 制御システム | PLC + touch screen + multi-formula storage |
| 適用システム | Polyurethane Elastomer System |
| 保証 | 1年 |
| 認証 | CE, ISO9001,Highway Engineering Certification, Bridge Related Product Certification |
アプリケーション・シナリオ

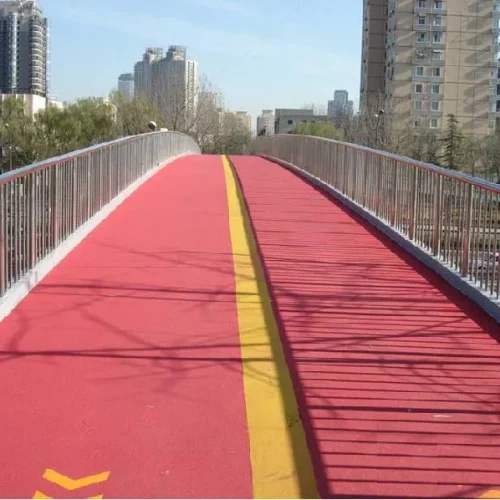

Specially designed for polyurethane elastomer pouring in bridge engineering, widely suitable for bridge bearing cushion, bridge deck crack repair, expansion joint sealing, pier anti-collision layer pouring. It resists outdoor rain, acid-base erosion and temperature changes, adapts to vehicle cyclic loads, bonds firmly with concrete and steel, effectively protects bridge structure, prolongs service life, and meets bridge high-altitude and outdoor batch construction needs.
コアの利点
2A2B configuration with anti-corrosion additives, long-term resistance to rain and acid-base erosion, suitable for humid and harsh outdoor bridge conditions.
Large-flow and wide-pressure pouring, suitable for large-area construction and thick-layer filling, full and dense forming, meeting high-load bearing requirements.
Support MOCA/BDO dual curing agent switching, flexibly adapt to different construction scenarios such as bearing high load and bridge deck quick repair.
The machine is suitable for high-altitude mobile operation, with precise temperature control, efficient cleaning, firm bonding with substrates, ensuring construction stability.
