Parámetros del producto
| Parámetro | Model：HF-CPUE-2A2B-PipeLiner |
|---|---|
| Velocidad de vertido | 100～1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Capacidad del depósito | 150 / 220 L |
| Mixing Head Speed | 6000～10000 r/min |
| Precisión de medición | ≤±0.5% (Full range) |
| Configuración del depósito | 2A2B two-component + anti-corrosion additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Sistema de limpieza | High-pressure circulating cleaning + air purge cleaning |
| Potencia | 11～15 kW |
| Sistema de control | CPU Prepolymer + MOCA/BDO Chain Extender |
| Applicable System | Medical-grade polyether polyol + Medical-grade isocyanate |
| Garantía | 1 year |
| Certifications | CE, ISO9001 |
Escenarios de aplicación

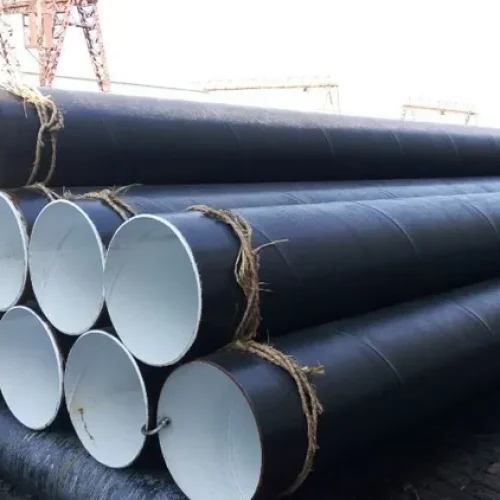

Specially designed for polyurethane lining casting of pipelines in chemical, mining and sewage treatment industries, widely suitable for lining molding of various corrosive medium and high-wear conveying pipelines. It supports MOCA heavy anti-corrosion formula, meeting the core production needs of wear resistance, acid and alkali resistance, anti-scaling and long-term protection, improving pipeline service life and operational stability.
Principales ventajas
2A2B configuration with anti-corrosion additive tank, greatly improving the acid, alkali and corrosion resistance of the lining, suitable for heavy corrosion working conditions.
Continuous stable pouring process, uniform and dense lining thickness without pores, effectively improving pipeline protection effect.
Support MOCA/BDO dual chain extender switching, flexibly adapt to the production needs of pipelines conveying different media.
Large flow is suitable for various pipeline sizes, stable operation, meeting mass continuous production of pipeline lining.
