Parámetros del producto
| Parámetro | Model：HF-RRIM-PU-1A1B |
|---|---|
| Velocidad de vertido | 100～2000 g/s |
| Proporción de mezcla | Poliéter: Isocianato = 100:90~110 |
| Capacidad del depósito | 200L / 300L (Opcional, por depósito) |
| Precisión de dosificación | ≤±0,3% (rango dinámico completo) |
| Configuración del depósito | 1A1B Control de temperatura independiente de dos componentes + agitación por circulación |
| Control de la temperatura | 25～45℃ |
| Presión de mezcla | 150～200 bar |
| Sistema de ventilación | Mold Negative Pressure Venting + High-Pressure Enhanced Homogenization |
| Sistema de limpieza | Limpieza por circulación a alta presión + purga de aire |
| Potencia | 15～22 kW |
| Sistema de control | PLC + Pantalla táctil + Almacenamiento multifórmula |
| Sistema de aplicación | RRIM-PU Carbon Fiber/Fiberglass/High-Strength Fiber Reinforced Composite System |
| Garantía | 1 año |
| Certificación | CE, ISO9001 |
Escenarios de aplicación

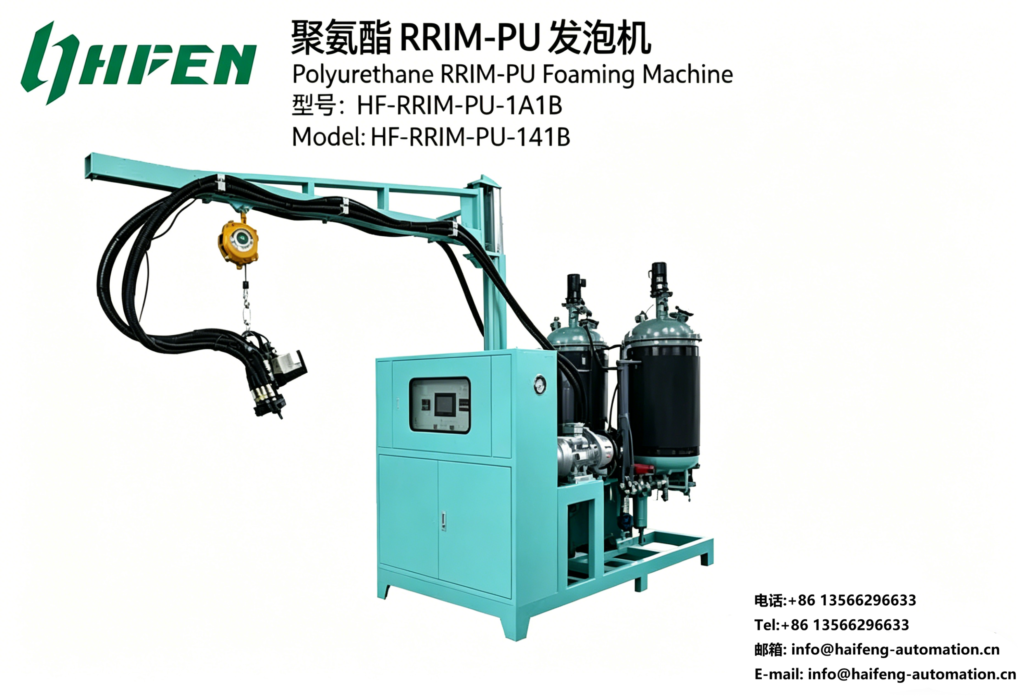

Specially designed for RRIM (Reinforced Reaction Injection Moulding) process, widely used in automotive structural parts, agricultural machinery heavy-duty parts, large engineering structural parts, high-end marine accessories and other fields. Compatible with carbon fiber, glass fiber and various high-strength fiber reinforced polyurethane materials, it meets the core requirements of high strength, high toughness, impact resistance and wear resistance, suitable for mass production and customized processing in various industries.
Principales ventajas
Professional RRIM reinforced reaction injection molding process, high-pressure homogeneous mixing, uniform fiber dispersion, product strength and toughness far exceed ordinary RIM products, suitable for heavy-duty and impact-resistant scenarios.
Accurate two-component metering and proportioning, error ≤±0.3%, no delamination and defects in finished products, strong molding stability, greatly improving yield rate.
Adjustable large-flow output, compatible with integral molding of large structural parts and pouring of small precision reinforced parts, strong equipment versatility.
Intelligent multi-formula storage and switching, suitable for different fiber reinforced raw material ratios, easy to operate, meeting the needs of multi-category flexible production.
