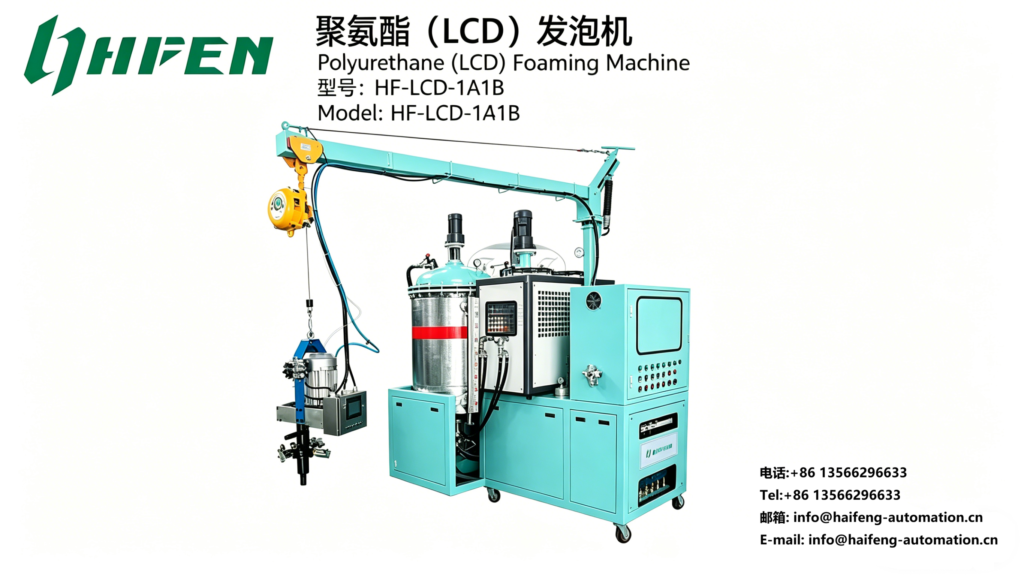

Parámetros del producto
| Parámetro | Model：HF-LCD-1A1B |
|---|---|
| Velocidad de vertido | 20～800 g/s |
| Proporción de mezcla | Polyether: Isocyanate = 100:95~110 |
| Capacidad del depósito | 150L / 200L (Optional, Per Tank) |
| Precisión de dosificación | ≤±0,3% (rango dinámico completo) |
| Configuración del depósito | 1A1B Control de temperatura independiente de dos componentes + agitación por circulación |
| Control de la temperatura | 25～45℃ |
| Presión de mezcla | 120～180 bar |
| Foaming Process | Low-pressure precise mixing, uniform foaming molding |
| Sistema de limpieza | Pneumatic simple cleaning + High-pressure circulation cleaning |
| Potencia | 7.5～15 kW |
| Sistema de control | PLC Intelligent Control System + Touch Screen Operation |
| Application | Thermal insulation foaming for commercial freezers, LCD cold chain display cabinets, refrigeration appliances |
| Garantía | 1 año |
| Certificación | CE, ISO9001 |
Escenarios de aplicación
Specially customized for thermal insulation layer foaming of LCD cold chain display cabinets, commercial refrigeration equipment, low-temperature refrigeration appliances. Adopting 1A1B standard double-tank configuration, suitable for low-density thermal insulation polyurethane raw materials, the foam layer is uniform and delicate with high closed cell rate, effectively improving the thermal insulation performance of refrigeration equipment, suitable for mass assembly line production of refrigeration appliances.
Principales ventajas
Precision low-pressure mixing system, uniform and stable foaming, delicate and dense foam holes.
Special cold chain ratio control, perfectly matching the foaming process requirements of refrigeration appliances.
Simple structure, easy to operate, low failure rate, suitable for long-term mass production.
Moderate energy consumption and convenient maintenance, meeting the large-scale production needs of refrigeration industry.
