Parámetros del producto
| Parámetro | Model：HF-CPUE-2A2B-Screen |
|---|---|
| Velocidad de vertido | 100–1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Capacidad del depósito | 220L |
| Mixing Head Speed | 7000–11000 r/min |
| Precisión de medición | ≤±0.5% (Full range) |
| Configuración del depósito | 2A2B two-component + wear & impact resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Sistema de limpieza | Automatic circulation + air purge cleaning |
| Potencia | 11～15 kW |
| Sistema de control | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Garantía | 1 year |
| Certifications | CE, ISO9001 |
Escenarios de aplicación

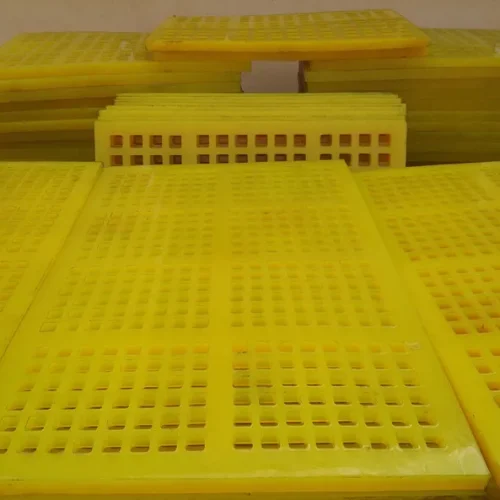

Specially designed for large-scale production of polyurethane screen plates in mining, metallurgy and coal industries, widely suitable for harsh working conditions such as ore screening, coal screening and metallurgical raw material classification. It can achieve high strength, impact resistance and wear resistance through formula switching, meeting the core production requirements of high load, long life and tear resistance for mine screen plates.
Principales ventajas
2A2B configuration with wear and impact resistant additives, greatly improving the wear and tear resistance of screen plates, suitable for harsh mining screening conditions.
Large-flow stable pouring, perfectly suitable for large-size screen plate molds, full filling without holes, ensuring uniform product structure.
Support MOCA/BDO dual chain extender switching, flexibly adjust product hardness and strength, suitable for different screening scenarios.
Stable and reliable operation, suitable for mass continuous production, effectively improving the production efficiency and yield of mine screen plates.
