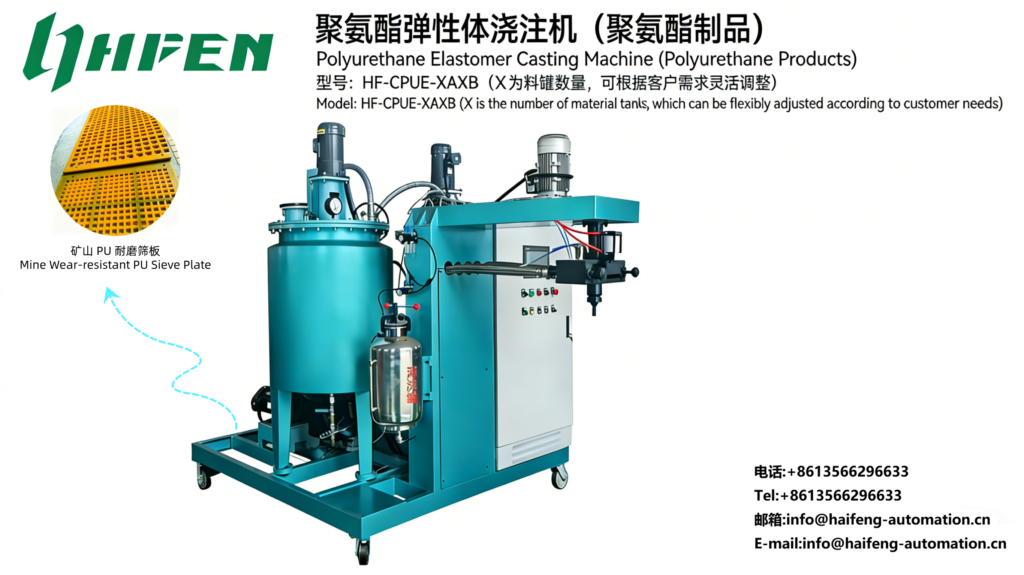

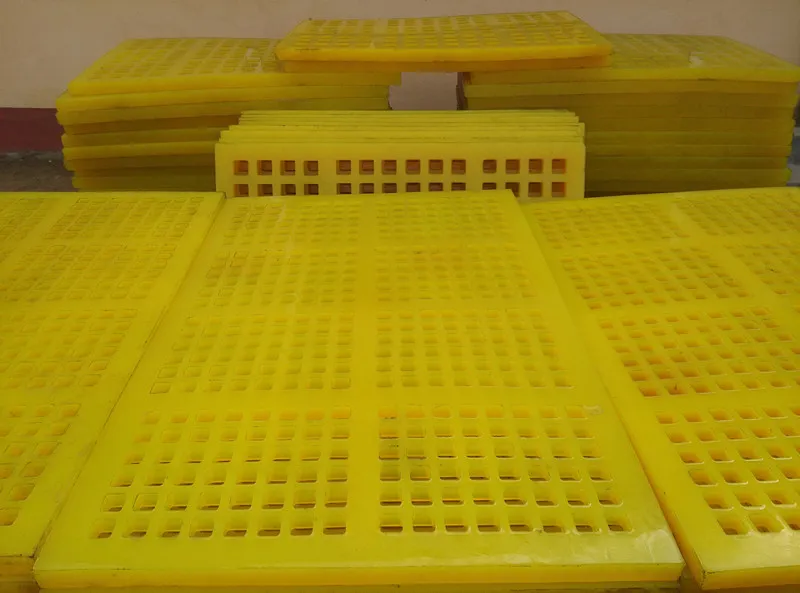

PU Cast Unit for Mine Screen Plate

Elastomer Polyurethane Machine

HF-CPUE-2A2B PU machine for mine screen plates,±0.5% accuracy,2A2B additive tank,vacuum defoam,MOCA/BDO dual formula,wear resistant,CE ISO,request quote

Request Quote

Polyurethane Elastomer Casting Machine | Mining Screen Plate Production

Parameter	Model：HF-CPUE-2A2B-Screen
Pouring Rate	100–1500 g/s
Raw Material Ratio	MOCA: 100:10~13; BDO: 100:4~6
Tank Capacity	220L
Mixing Head Speed	7000–11000 r/min
Metering Accuracy	≤±0.5% (Full range)
Tank Configuration	2A2B two-component + wear & impact resistant additive tank
Material Temperature Control	Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)
Vacuum Defoaming	Vacuum ≤-0.095MPa
Cleaning System	Automatic circulation + air purge cleaning
Power	11～15 kW
Control System	PLC + touch screen + multi-formula storage
Applicable System	CPU Prepolymer + MOCA/BDO Chain Extender
Warranty	1 year
Certifications	CE, ISO9001
