All PU foaming defects derive from out-of-limit process parameters, three quantified industry execution standards as below:

1. Metering & Mixing Control: A/B component allowable deviation ≤±0.5%; open-loop gear pump under 8h continuous production normally generates 2.5%~3.2% ratio drift, leading to hardness deviation over 7 Shore A; mixing head speed ≥3500rpm to reach ≥99% mixing uniformity, insufficient shear causes enclosed air bubbles.
2. Temperature Control: Polyol 52~58℃, Isocyanate 58~64℃, ambient workshop fluctuation controlled within ±2℃; single 2℃ temperature shift changes raw viscosity by 18%+, trigger inconsistent cream time and uneven foaming; whole pipeline heat preservation required to avoid local cold spot.
3. Injection Flow & Laminar Control: Adopt segmented dynamic injection curve, initial high flow for cavity filling, mid/late low-speed laminar advancing; flow velocity over rated value creates turbulent flow and entrapped air, too slow leads short-shot underfilling.

Common hidden risks from out-of-spec parameters: Ordinary open-loop gear pump under long-time production, ratio error usually reaches 2%~4%, scrap rate stays at 8.2%~15.7%.

Case1 High-Density Memory Mattress Factory

Annual Output 450,000pcs, original open-loop gear pump equipment.

• Original Trouble: Daytime temperature rise leads 3% ratio drift, batch hardness difference up to 9.2 Shore A, reject rate 12.8%.
• Upgrade Plan: Servo closed-loop + Coriolis mass flowmeter + high-shear mixing head.
• Post-data: Ratio tolerance ≤0.43%, batch hardness ≤1.7 Shore A, scrap down to 0.69%.

Figure2: Mattress collapse from ratio drift defect

Case2 150mm+ Cold Chain PU Sandwich Panel

Large refrigeration equipment manufacturer.

• Original Trouble: Raw temp fluctuation ±3.5℃, panel density gap 35kg/m³, warpage reject 8.7%.
• Solution: Three-layer jacket tank + full insulated hose + PLC line speed linkage.
• Post-effect: Density fluctuation ≤3.6kg/m³, reject down to 0.52%.

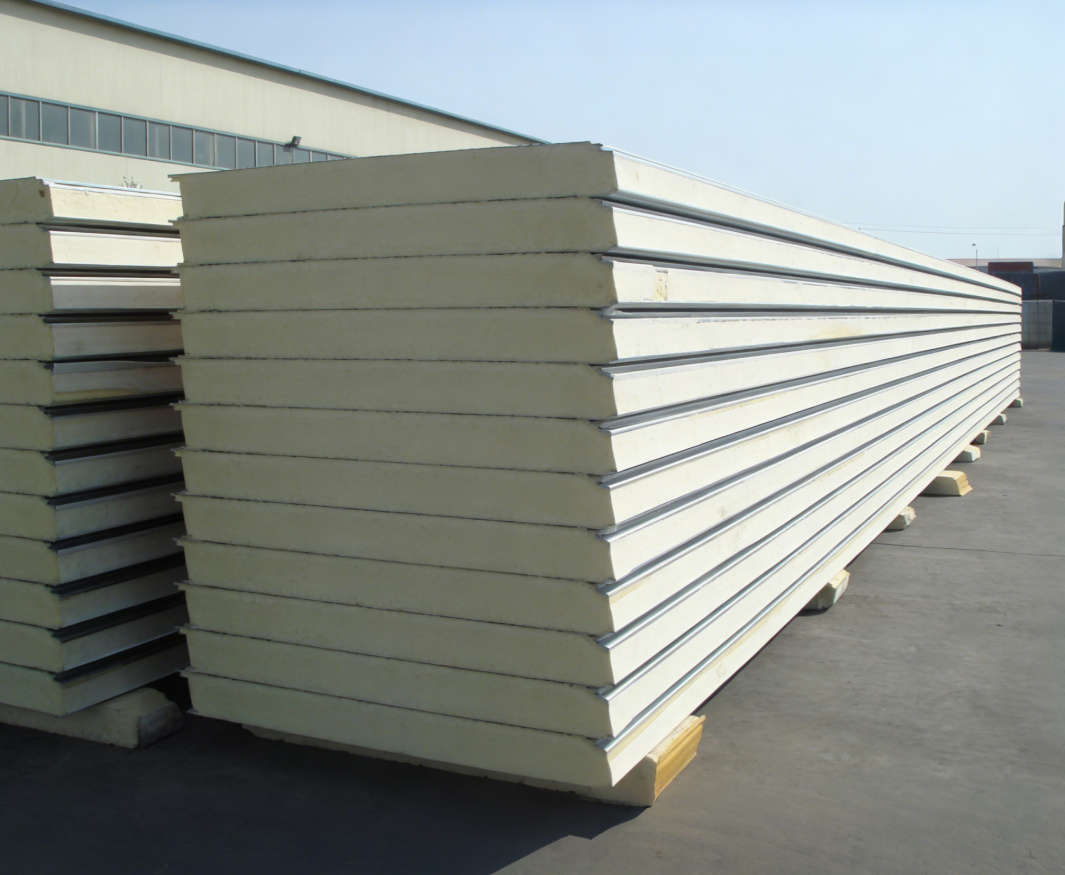

Figure3: Qualified cold storage sandwich panel

Case3 Auto NVH Complex Cavity Damper

Auto precision component producer.

• Original Trouble: Fixed injection speed causes air trapping rate 10.3%.
• Improvement: PLC three-stage variable flow injection programming.
• Post-data: Internal bubble fully eliminated, pass rate 89.7%→99.5%.

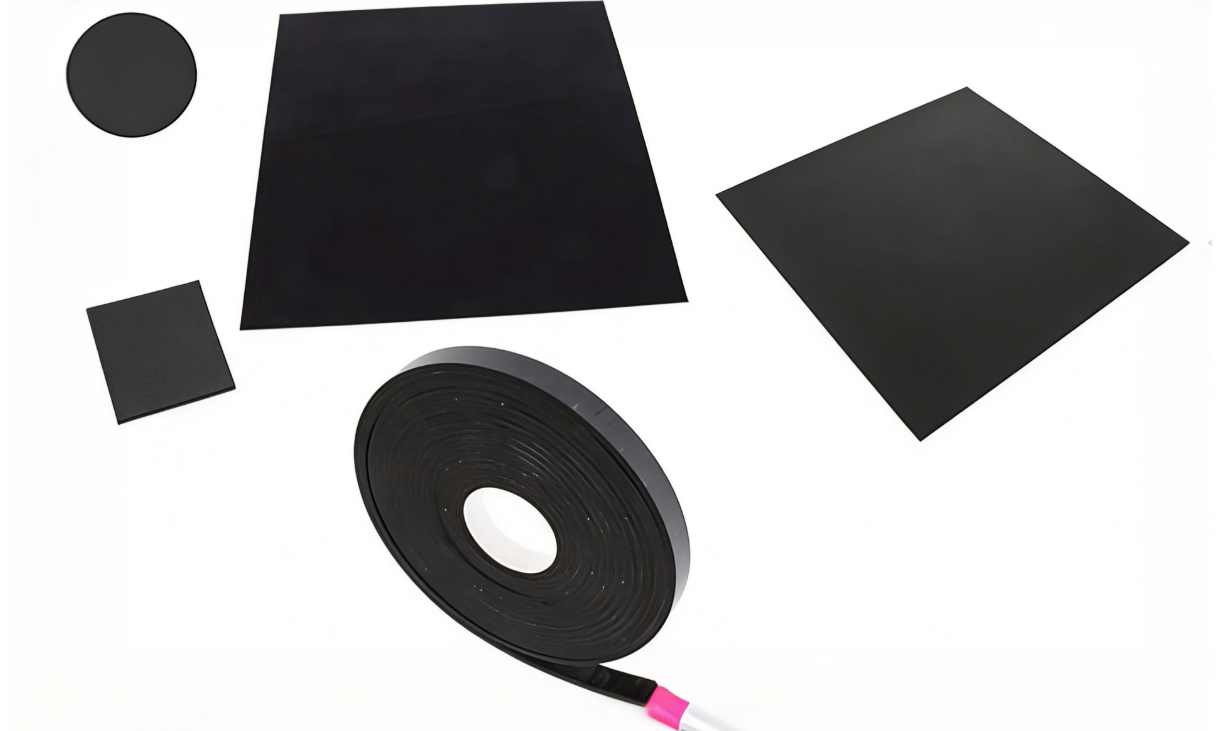

Figure4: Finished automotive NVH damping component

Eliminating mass-production foaming defects relies on systematic closed-loop control rather than raw material formula adjustment alone. Haifeng supplies customized process debugging and turnkey production solution according to actual workshop and product parameters.
