Product Parameters

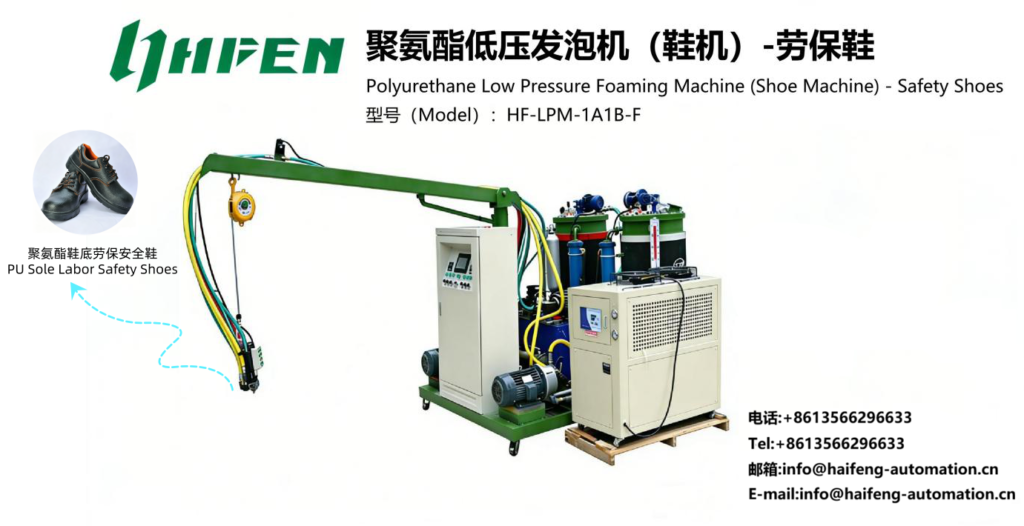

| Parameter | Model：HF-LPM-1A1B-F (2-6 components customizable) |
|---|---|
| Dosing Rate | 30~150g/s |
| Mix Ratio | A:B = 100:35~85 |
| Tank Capacity | 200L |
| Power | 12kW |
| Mixing Head Speed | Pouring Speed: 4000~10000rpm (Adjustable) Injection Speed: 10000~18000rpm (Adjustable) |
| Dosing Accuracy | ±0.5% |
| Weight | 1000kg |
| Warranty | 1 Year |
| Certification | CE, EN 60204-1, ISO9001 |
Application Scenarios

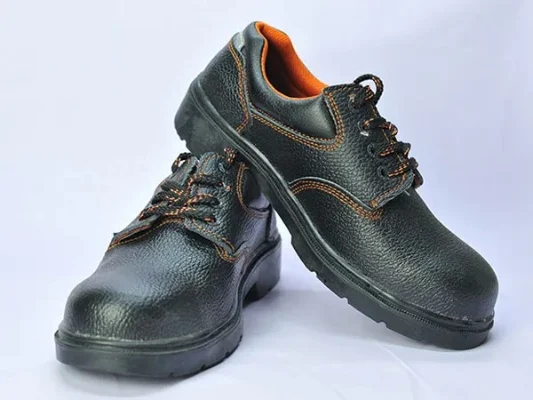

It is widely used in the field of shoe material manufacturing, suitable for pouring and injection molding of polyurethane (PU) foamed products. It is specially used for the production of labor protection shoes (safety shoes), and can also produce PU shoe materials such as sandals, slippers and beach shoes.
Core Advantages
High automation, only 2-4 operators required, optional automatic manipulator, easy to control with adjustable speed.
Dosing accuracy up to ±0.5%, ensuring stable hardness, wear resistance and impact resistance of safety shoes.
Energy-saving low-pressure operation, low wear, easy maintenance and long service life of core parts.
Supports two-color & dual-density integrated molding, suitable for mass production of safety shoes with stable quality.
