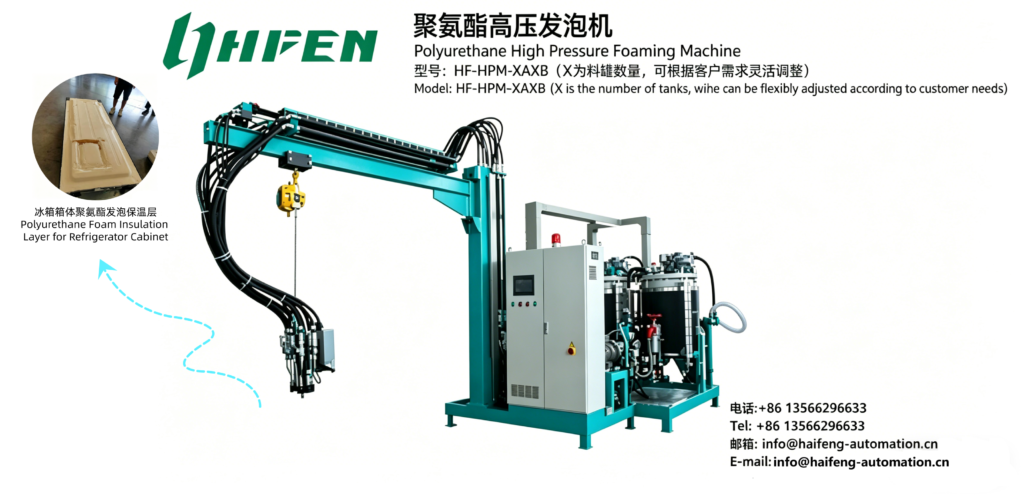

Product Parameters
| Parameter | Model：HF-HPM-1A1B-Refrigerator |
|---|---|
| Pouring Rate | 50～1200 g/s |
| Raw Material Ratio | Polyether:Isocyanate=100:100~130 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 8000～14000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control + circulation stirring |
| Material Temperature Control | 20～45℃ |
| Mixing Pressure | 10～18 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic air purge cleaning (Solvent-free & Eco-friendly) |
| Power | 5.5～7.5 kW |
| Control System | PLC + Touch Screen + Multi-formula Storage |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for precision pouring molding of medical polyurethane sponge. It is suitable for the production of wound dressings, medical sponge pads, hemostatic sponges and other medical sponges. It meets the requirements of biocompatibility, high absorbency, sterility and non-irritation, can directly contact human skin and wounds, and complies with strict production standards in the medical industry.
Core Advantages
High-pressure precise mixing, uniform rigid foam density without voids, stable thermal insulation performance.
Dynamic full-range high-precision metering, accurate ratio, low raw material loss.
Solvent-free automatic air purge cleaning, environmentally friendly and clean, suitable for home appliance dust-free workshops.
Stable operation, suitable for standardized mass production in home appliance industry.
