Product Parameters
| Parameter | Model：HF-LPM-1A1B-R-Refrigerator |
|---|---|
| Pouring Rate | 200~5000g/s |
| Raw Material Ratio | 1:1~3:1 continuously adjustable |
| Tank Capacity | 120/220/500L |
| Mixing Head Speed | 10000~18000r/min (Common: 12000~15000r/min) |
| Metering Accuracy | ≤±1.0%(Full range) |
| Tank Configuration | 1A1B |
| Material Temperature Control | 20~60℃ precise temperature control |
| Cleaning System | Automatic air-purge + pipeline circulating cleaning (solvent-free) |
| Power | 11~18.5kW |
| Control System | PLC + touch screen + multi-formula storage |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

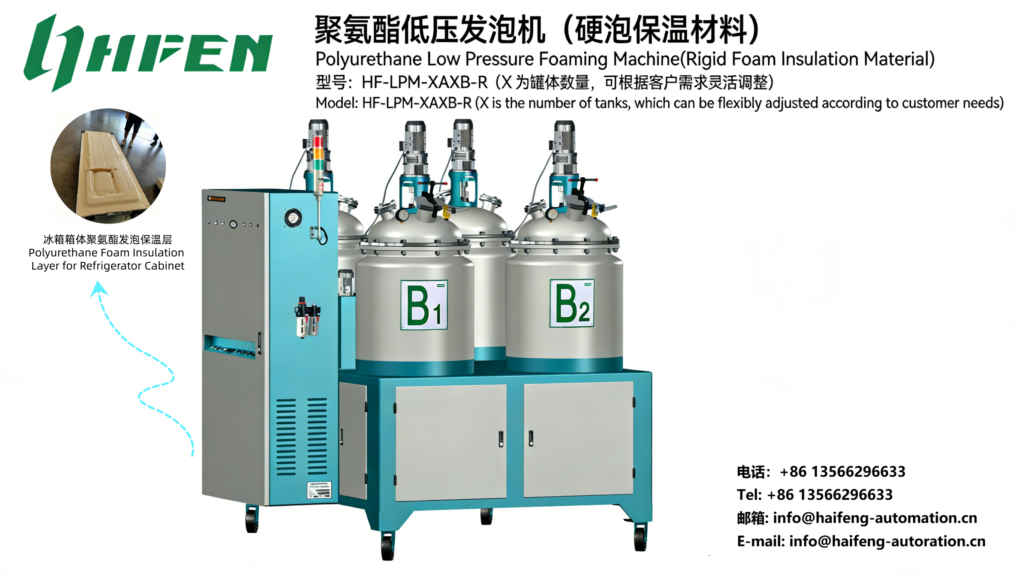

Specially built for rigid foam insulation of refrigerator, freezer, cold cabinet and display cabinet body and door. The machine meets high thermal insulation, high strength and high stability standards of home appliance industry, special equipment for large-scale production of refrigeration insulation layers.
Core Advantages
Special high-speed mixing process for rigid foam, full and uniform raw material integration, high closed cell rate, long-term stable insulation performance.
High-flow efficient pouring, suitable for rapid filling of home appliance cabinets, no material shortage or overflow, greatly improving production tempo.
1A1B independent temperature and pressure control + precise metering, stable ratio, suitable for long-hour continuous mass production.
Solvent-free eco-friendly cleaning + intelligent formula management, efficient and pollution-free line change, complying with home appliance environmental requirements.
