Product Description

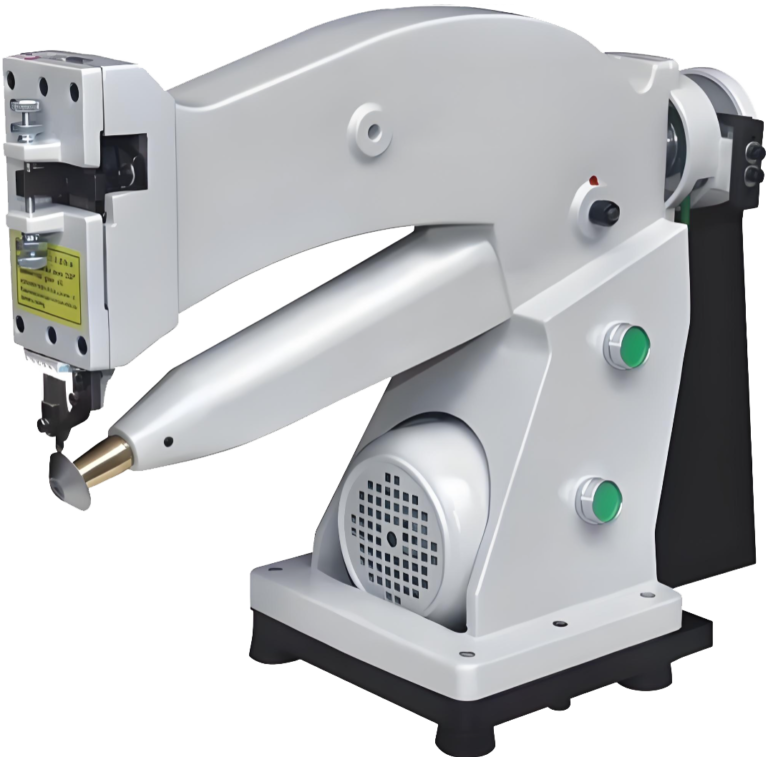

The shoe trimming machine is a high-precision automatic post-processing equipment specially developed for the shoemaking industry, mainly for the edge trimming of shoe soles made of PU, EVA, rubber and other materials. Adopting precision mechanical cutting and grinding technology, it quickly removes flash and burrs generated after shoe sole molding, and trims and straightens the edge contours of shoe materials. It replaces traditional manual trimming with automated operation, greatly improving trimming precision and processing efficiency, and is a core supporting equipment for enhancing the appearance and quality of shoe products in shoemaking production lines.
Core Advantages
High-precision Machining
Repetitive positioning accuracy of ±0.3mm with neat edge cutting, ensuring consistent processing quality of shoe products.
High-efficiency Automation
Realizes automatic loading, unloading, positioning and trimming, with a processing cycle of ≤ 10 seconds per pair of shoe soles. It can be connected to production lines for batch continuous operation.
Intelligent & Flexible Adaptation
Equipped with a 5-axis robotic system and 3D vision system, it automatically identifies shoe styles and sizes and adaptively adjusts cutting paths. It supports storage of over 200 processing programs for quick production task switching.
Multifunctional & Durable
Fitted with multiple sets of cutters, suitable for rough trimming, finish trimming, chamfering, polishing and other processes, with automatic detection and compensation for cutter wear. Core components are made of cemented carbide, and the whole machine features a modular design for stable operation, long durability and easy maintenance.
Product Parameters
| Item | Parameters |
|---|---|
| Applicable Materials | PU, EVA, rubber, TPR, etc. (Shore A 30-90) |
| Machining Precision | ±0.3mm |
| Processing Efficiency | ≤ 10 seconds/pair |
| Power Supply Specification | AC 380V / 50Hz |
| Total Machine Power | 5.5 kW |
| Gas Supply Pressure | 0.6–0.8 MPa |
| Equipment Weight | Approx. 1200 kg |
| Overall Dimensions | 2000×1800×2100 mm |
Application Areas
Widely used in various shoemaking production lines, it is applied to shoe material components such as shoe soles and uppers made of PU, EVA, rubber, TPR and other materials to complete post-processing procedures including flash removal, edge finish trimming, chamfering and polishing. It is suitable for the mass production of various shoes such as sports shoes, safety shoes and casual shoes.
