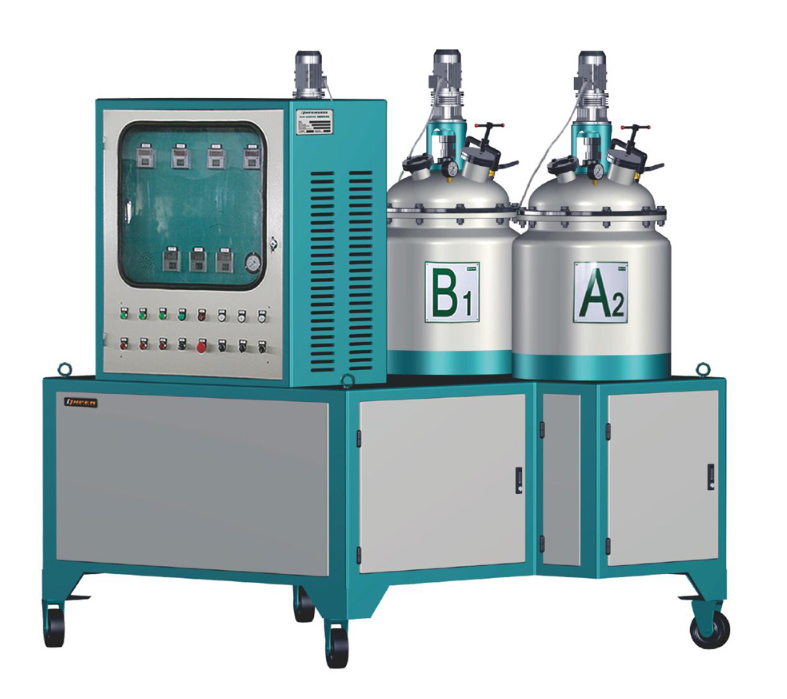

The drive system is the power core of the equipment, which directly determines the dosing accuracy, pressure stability and service life of the equipment. There are three mainstream drive modes in the industry, with essential differences in performance and application scenarios:

1.1 Pneumatic Drive System

Pneumatic drive is the entry-level solution for small spray equipment, using compressed air as power source:

• Advantages: Simple structure, low initial cost, no risk of hydraulic oil leakage, suitable for small-scale repair and filling scenarios
• Disadvantages: Low pressure stability, pressure fluctuation up to ±10bar, large dosing ratio deviation, unable to meet the requirements of large-area continuous construction; high noise during operation, high compressed air consumption
• Application Scenarios: Small-scale patching, joint filling, non-standard small projects with low quality requirements

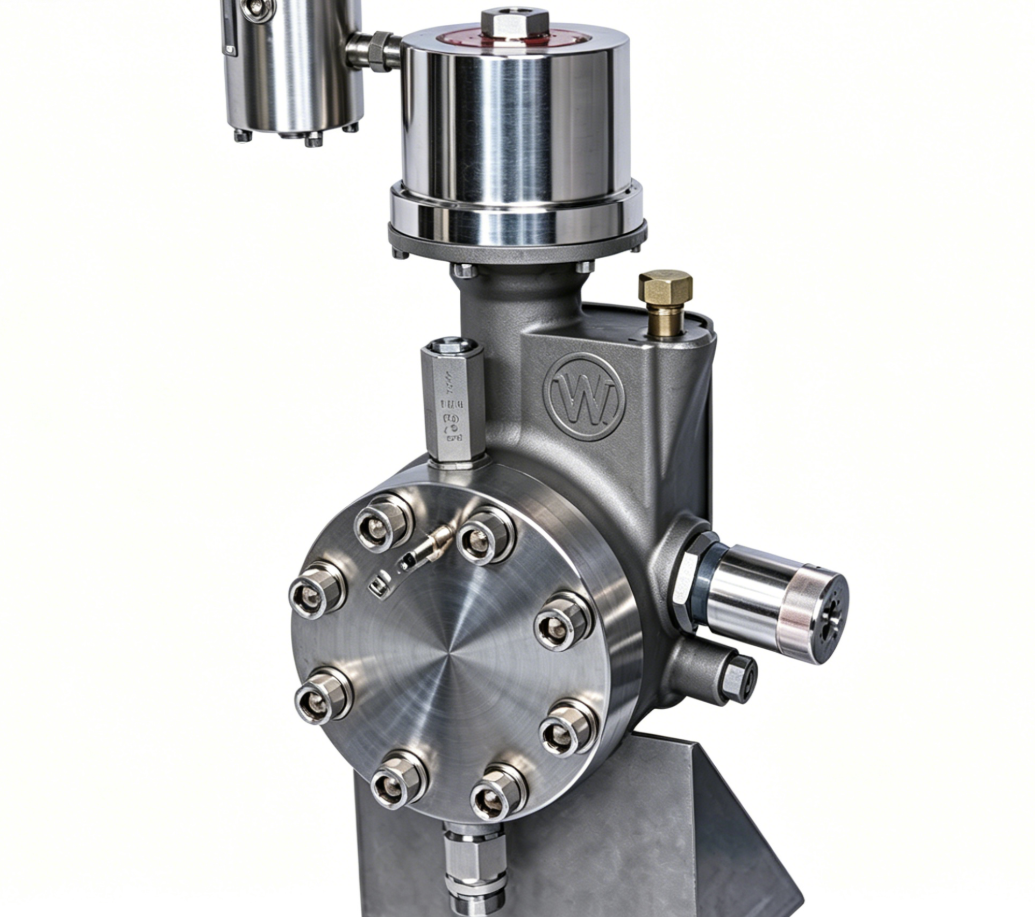

Figure 2: Pneumatic drive system structure diagram

1.2 Hydraulic Drive System

Hydraulic drive is the mainstream solution for industrial-grade spray equipment, using hydraulic oil as power transmission medium:

• Advantages: High output power, stable pressure, pressure fluctuation ≤±2bar, can support 24-hour continuous large-area construction; strong overload capacity, suitable for high viscosity raw materials
• Disadvantages: Regular replacement of hydraulic oil is required; there is a risk of oil leakage in harsh environment; slightly higher maintenance cost than pneumatic drive
• Application Scenarios: Large cold storage insulation, industrial anti-corrosion, pipeline insulation and other large-scale engineering projects

Figure 3: Hydraulic drive high precision metering pump system

1.3 Servo Electric Drive System

Servo electric drive is the latest high-end solution, using servo motor to directly drive the metering pump:

• Advantages: Highest dosing accuracy, deviation ≤±0.5%; digital parameter adjustment, can store multiple material formulas; no hydraulic oil, clean and environmentally friendly, low maintenance cost
• Disadvantages: Highest initial cost; overload capacity is slightly lower than hydraulic drive, not suitable for ultra-high viscosity special materials
• Application Scenarios: High-precision spraying scenarios such as automotive interiors, electronic protection, medical device packaging

Full Dimension Comparison of Drive Systems

PU raw materials are highly sensitive to temperature. Every 5℃ temperature change will cause 20% viscosity change of raw materials, which directly leads to dosing ratio deviation and uneven mixing. The constant temperature heating system is the core structure to eliminate environmental interference, which is divided into two parts: main machine heating and hose heating.

2.1 Main Machine Raw Material Heating System

The main machine heating system preheats A/B raw materials to the optimal reaction temperature (40-60℃) before entering the metering pump:

• Entry-level Configuration: Single-layer water bath heating, slow temperature rise, large temperature difference between inside and outside, suitable for constant temperature indoor environment
• Industrial Configuration: Three-layer oil bath constant temperature heating, uniform temperature, temperature control accuracy ±1℃, can adapt to 5-35℃ outdoor construction environment
• Core Requirements: Must have independent temperature control for A/B materials, because isocyanate and polyol have different optimal reaction temperatures

2.2 High Pressure Insulated Hose System

The heated hose ensures that the raw materials maintain a constant temperature during the transmission from the main machine to the spray gun, avoiding viscosity increase caused by cooling during long-distance transmission:

• Core Structure: Inner layer is high pressure resistant steel wire braided hose, middle layer is uniform heating wire, outer layer is insulation layer and protective layer
• Temperature Control Accuracy: Qualified insulated hose temperature control accuracy is ±2℃, the temperature difference between the whole hose is ≤3℃
• Common Length: Standard length is 15m, 30m, 60m, too long hose will lead to pressure drop and temperature loss

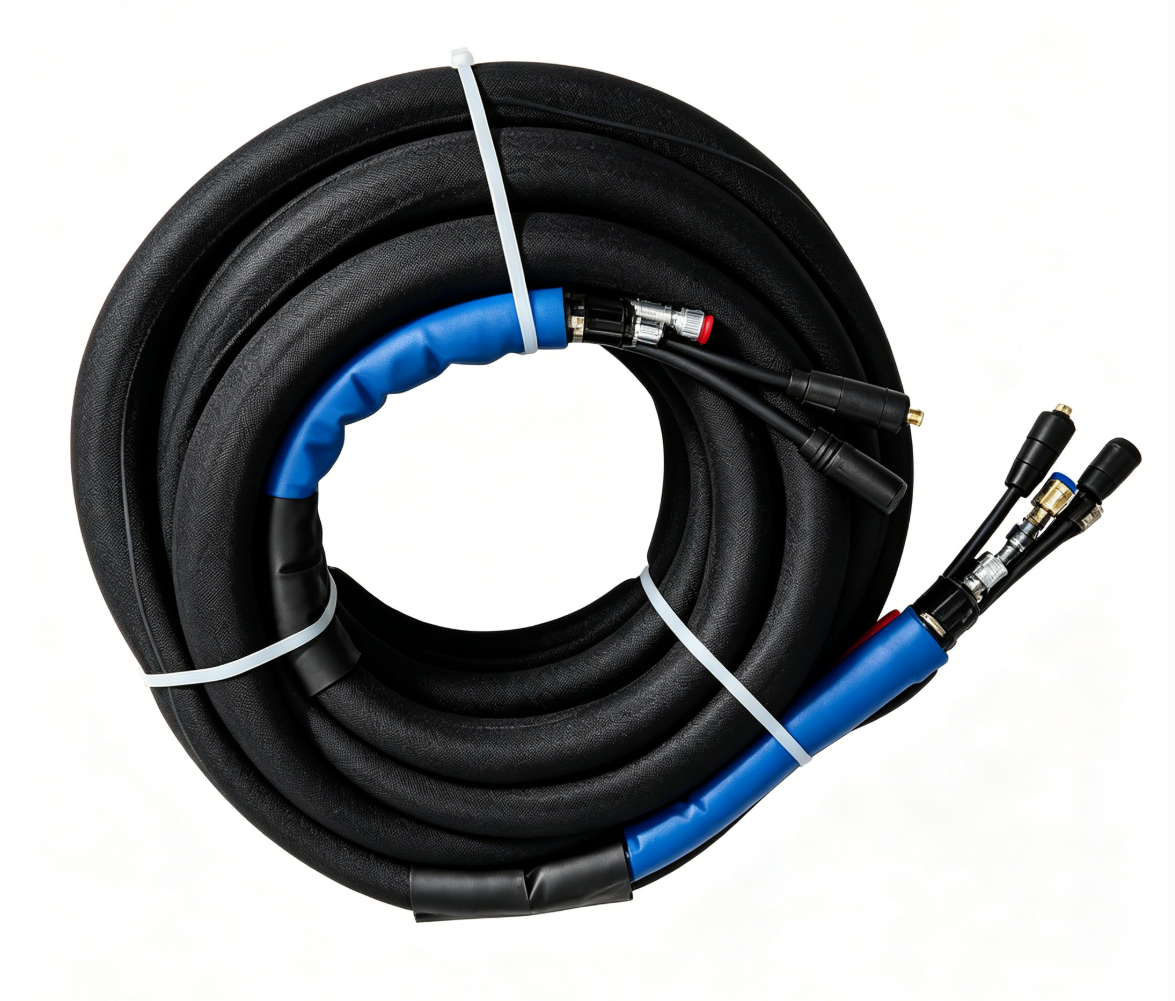

Figure 4: High pressure constant temperature insulated hose cross-section structure

Common Pitfall: Many low-cost equipment use ordinary high pressure hoses without heating function, or only single-point heating without full-length constant temperature, which will lead to serious viscosity deviation of raw materials during long-distance transmission, resulting in uneven mixing and local uncured defects.

The mixing head is the core component to achieve high pressure impingement mixing. After each spraying, residual raw materials will cure and block the mixing chamber, so the cleaning mechanism directly determines the service life and maintenance cost of the equipment. There are two mainstream cleaning methods in the industry:

3.1 Air Blow Cleaning System

Air blow cleaning uses high pressure compressed air to blow out the residual raw materials in the mixing chamber after each spraying:

• Advantages: Simple structure, low cost, no solvent required, suitable for intermittent small-scale construction
• Disadvantages: Cleaning is not thorough, there will be residual raw materials on the inner wall of the mixing chamber, which need to be disassembled and cleaned manually every 1-2 days; long-term use will lead to mixing chamber wear and reduced mixing uniformity
• Application Scenarios: Small-scale repair, discontinuous construction with interval more than 30 minutes

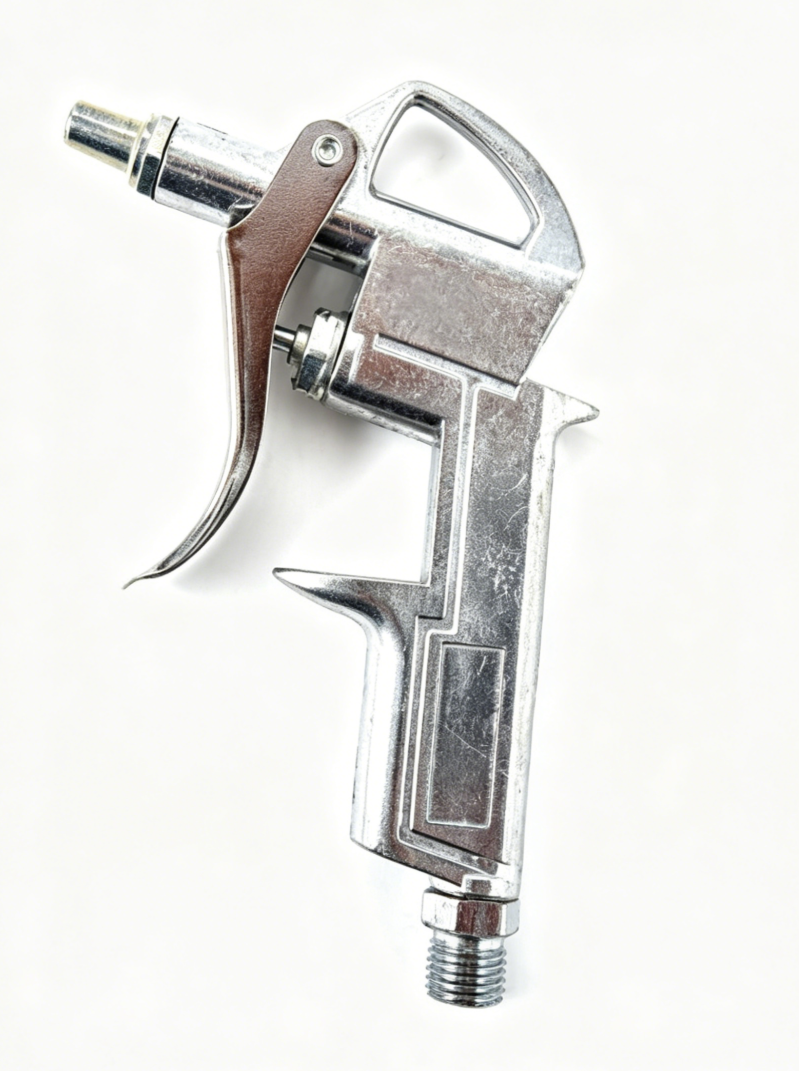

Figure 5: Air blow cleaning mixing head structure diagram

3.2 Mechanical Self-Cleaning System

Mechanical self-cleaning uses a precision piston to push out all residual raw materials in the mixing chamber after each spraying, achieving 100% cleaning:

• Advantages: Thorough cleaning, no residual raw materials, no need for manual disassembly and cleaning; the mixing chamber can maintain accuracy for a long time, and the service life is more than 5 times that of air blow type
• Disadvantages: High processing precision requirements, high initial cost
• Application Scenarios: Large-area continuous construction, high-demand engineering projects, 24-hour uninterrupted production

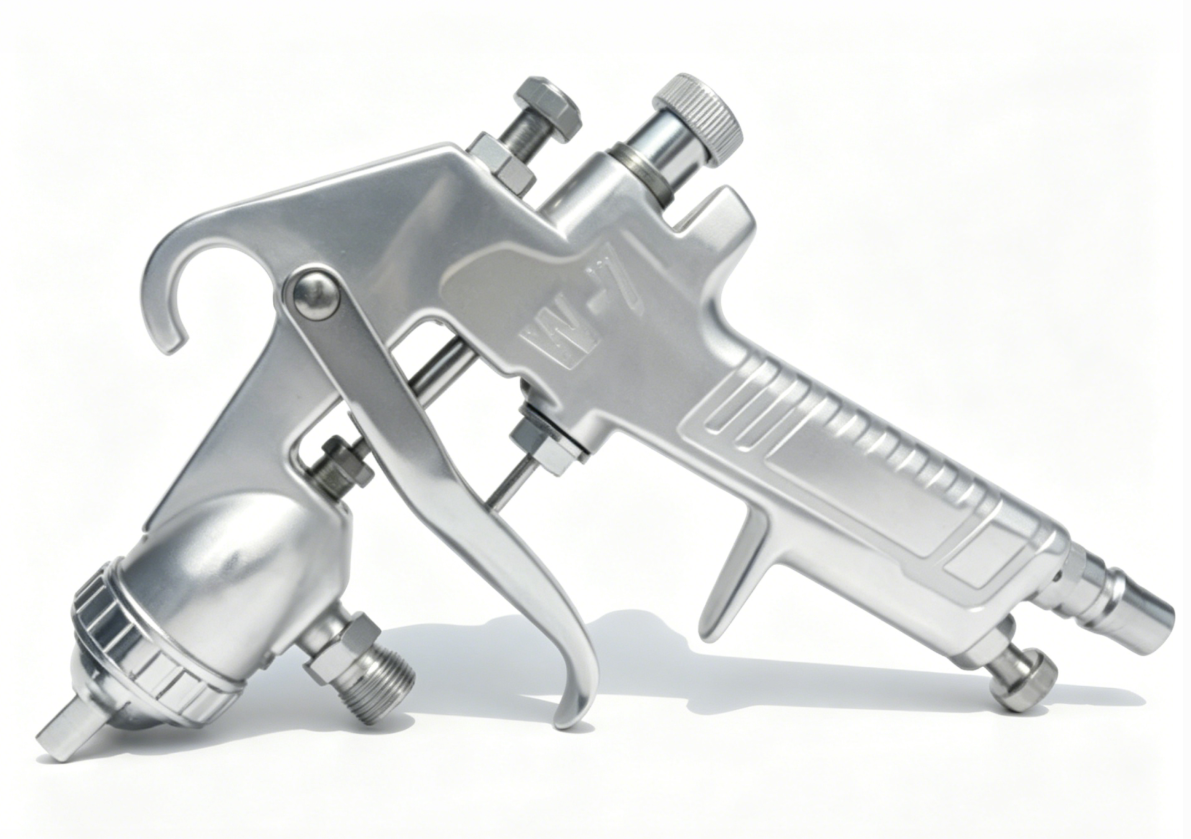

Figure 6: Mechanical self-cleaning mixing head internal structure

Cleaning Mechanism Performance Comparison

Selecting the right spray equipment does not mean choosing the most expensive one, but choosing the most suitable one according to your own application scenarios. You can make decisions according to the following three-step framework:

1. Judge by Construction Scale:
   • Small-scale patching and repair: Pneumatic drive + air blow cleaning is sufficient, cost-effective
   • Medium and large engineering projects: Hydraulic drive + mechanical self-cleaning is the standard configuration, ensuring stable construction
   • High-precision factory mass production: Servo electric drive + mechanical self-cleaning, ensuring 100% consistency of products
2. Judge by Construction Environment:
   • Indoor constant temperature environment: The requirement for constant temperature system is relatively low
   • Outdoor all-season construction: Must be equipped with three-layer oil bath heating + full-length constant temperature insulated hose
   • Cold area construction: Need to add low-temperature preheating function to ensure normal start-up at -10℃
3. Judge by Full Life Cycle Cost:
   • For equipment used less than 100 hours a year: Entry-level pneumatic equipment has lower full cost
   • For equipment used more than 500 hours a year: Industrial hydraulic self-cleaning equipment has lower full life cycle cost, and the return on investment period is usually within 12 months

The core of high pressure PU spray equipment is stability and consistency. The difference of several thousand dollars in initial equipment cost will bring a gap of hundreds of thousands of dollars in engineering rework cost and raw material scrap cost.
