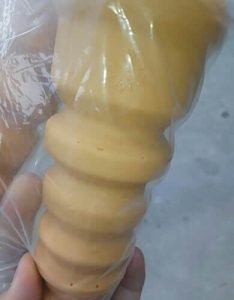

PU jounce bumper voids and strength variation usually trace to the same equipment nodes: metering, mixing, and mold fill. In my experience, the formula is rarely the first place to look, because a good microcellular system will still produce bad parts if the mixing head leaks air or the metering pump drifts. I have watched production teams change polyols and add mold release while a worn mixing chamber kept putting gas into the shot. Small changes in back pressure, ratio, or fill turbulence become visible later as cut-section porosity or a soft batch. This article covers the equipment causes I check first when a jounce bumper line starts producing porous, soft, or inconsistent parts.
What Equipment Conditions Create Voids in Microcellular PU Jounce Bumpers?
A microcellular jounce bumper depends on controlled gas. In water-blown systems, the reaction creates CO2. In gas-loaded or mechanically nucleated systems, the machine adds gas. Most void defects I see are not from too little gas, but from gas that entered the mixture at the wrong point and stayed as a coarse bubble. The equipment paths differ enough to show up as different cut patterns.
The first path is air ingestion before the metering section. If the feed line, pump shaft seal, or a loose return fitting leaks, the pump pulls air into the polyol or isocyanate stream before it reaches the mixing head. Microcellular systems respond to dissolved gas far more than dense elastomers, so a small leak that would be invisible in a solid cast part shows up as scattered small voids in a sectioned jounce bumper. The second path is cavitation in the recirculation loop. When feed pressure drops below the vapor pressure of a filled polyol, vapor cavities collapse inside the pump and leave irregular gas pockets. The third path is a worn mixing head. Dynamic mixers lose clearance, static mixers wear at the inlet edge, and recirculation valves that do not seat fully draw air during the return stroke. All three paths are visible in shot weight and cut-section data before the parts leave the plant, but only if the line is sampled at the right points.
| Cut-section pattern | Likely equipment cause | First check |
|---|---|---|
| Scattered small voids throughout | Air ingestion before metering | Feed line, pump shaft seal, day tank agitation |
| Voids concentrated near the gate | Turbulent fill or trapped cavity air | Shot profile, vent location, nozzle size |
| Fine voids that open after cure | Moisture or water contamination | Material handling, dryers, return valve |
| Low density at shot start only | Air pocket in the metering pump | Inlet pressure, recirculation flow |
| Large irregular voids | Gas coalescence in the mix | Back pressure, mixing speed, residence time |
| Soft zone with no visible void | Ratio drift or local hot spot | Pump calibration, mold thermocouple |
Why Do Strength and Hardness Vary Across a Jounce Bumper Run?
Strength variation in a microcellular jounce bumper usually means density variation first. The foam is the structure; if the cell structure moves, hardness and compression set move with it. I make that call before I start changing the formula because density responds to machine variables the lab cannot see: shot weight, mold temperature, and ratio. A shot that is two grams light can be a different density, even if the Shore A test hides it at first. The same material poured into four cavities can produce four hardness results when one circuit holds 55°C and another holds 68°C. Those differences do not show up in a barrel sample.
The metering ratio moves polyol and isocyanate together with water. If the ratio drifts, crosslink density and cell gas change at the same time. The part may look normal on the surface but fall outside the load-deflection band because the foam softened in the center. I have seen a line pass Shore A at the start of shift and fail after lunch when the ambient feed temperature climbed and the pump clearances shifted. The material had not changed; the plant conditions had.
Because hardness and density are measured after demold, the equipment signal is already old. That is why I record shot weight and cavity temperature with the sample number, not just the formula and cure time.

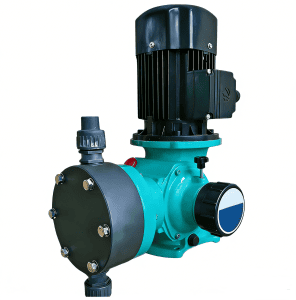

How Do Metering Accuracy and Mixing Head Condition Control Density?
I separate metering accuracy from repeatability. Accuracy gets the ratio right once. Repeatability keeps it right across all shots and all cavities. A machine can pass a short calibration cup and still drift during production because material temperature, feed pressure, or mixing head back pressure changed. For microcellular jounce bumpers, ratio is not just a chemical property. The same pump stroke that moves polyol also controls the water and gas contribution, so a small change on either side becomes a density shift.
A closed-loop servo metering system corrects flow errors in real time and holds A/B ratio within ±0.5% when it is sized and maintained correctly. On the mixing side, a worn head shows up first as non-uniform cell structure. The center of the part may be dense while the edges are coarse, because shear and residence time are not the same across the chamber. A mixing head in good condition should produce a consistent cell size distribution across the shot. If the head cannot hold that, the jounce bumper will vary even when the metering pumps are stable.
If your jounce bumper program involves filled polyol, shot weights below 100 g, or multi-cavity tooling with tight density limits, it is worth confirming minimum flow stability and mixing head temperature before finalizing the BOM. Send your part drawing and current density tolerance to [email protected] so we can check which metering range you actually need.
Calibration drift shows up first in small-shot microcellular work, where a small ratio change moves part density more than the production log captures. <PU Foam Injection Machine: Key Components & Calibration Best Practices> covers the component checks and calibration sequence that catch drift before a full batch of jounce bumpers falls outside the density window.
Why Do Voids and Strength Variation Appear in Specific Cavities or Gates?
Specific cavities or gates point to mold and nozzle hardware before formula. When a multi-cavity tool produces one bad cavity and three good ones, the material is usually not the variable. I check the cavity fill time, the gate size, and the mold circuit balance. A cavity that fills slower sees different gas escape behavior. A gate that lets the stream fold air into the rising foam creates a local void even if the overall shot weight is correct. A cold cavity can also produce a dense skin and a soft core, which appears as low hardness when the part is sectioned from the same area.
Pre-gel at the gate is another localized failure. If the material starts to gel before the cavity is full, the later material cannot knit and a weak plane forms at the fill boundary. The equipment signal is a filling time that is too long or a mold surface that is too hot near the gate. The answer is usually either gate size or mold temperature, not a formula change.
Mold fill problems in microcellular PU are rarely solved by a single vent change. <How to Reduce Defects in PU Shoe Production> covers where pre-gel, venting, and shot profiling interact, and why the same defect can come from opposite equipment settings on different tooling.
What Equipment Checks Should Production Teams Run First?
After a few bad cut samples, most teams do not need more lab work. They need shot-by-shot data. I start with six checks, in this order.
- Record shot weight from 10 consecutive shots. Look for a rising or falling trend. That separates metering drift from tooling problems.
- Calibrate each metering pump at operating temperature and pressure, not at room conditions. Compare the actual ratio over three shots with the machine’s setpoint.
- Check feed pressure and recirculation. A low inlet pressure or a worn check ball produces shot-start density loss.
- Remove and inspect the mixing head. Check seal clearance, wear bands, valve seating, and the solvent flush path for cured material.
- Map fill time and mold temperature for each cavity. A cold cavity or a gate that fills too fast can cause local weakness without a visible void.
- Cut parts from specific shots and keep the shot clock, cavity number, and temperature data with each section. If the data does not point to a machine signal, then start looking at formula and raw material batch changes.
Once the metering side is clean, the next source of variability is maintenance interval drift on pumps and mix heads. <Continuous PU Foam Production Line Maintenance: How to Prevent Costly Downtime and Defects> covers the inspection points that keep a line from drifting into the same void and density problems over a 24-hour run.
If these checks still leave you cutting parts to sort good from bad, the next step is a process audit that starts at the machine instead of the lab. Send your current shot weight, material data sheet, and number of cavities to [email protected], or share a cut-section photo and the process page on WhatsApp 86 13566296633. We will confirm which metering or mixing point to check next.
Common Questions About PU Jounce Bumper Voids and Strength Variation
Does a void always mean the mixing head is pulling air?
No. A void can come from air ingestion before the metering section, cavitation in the pump, or trapped cavity air that never escaped during fill. The mixing head is only one path. The cut-section pattern narrows it down. Scattered fine voids throughout the part usually point to air ingestion early in the circuit. A large void near the gate or surface usually points to turbulence and venting. I use the pattern first, then inspect the head.
Should we fix ratio drift before looking at mold temperature?
A lot of teams assume ratio drift causes every hardness change. If the drift is real, fix it first, because it moves density and crosslink density at the same time. But if only one cavity is soft, the ratio is not the likely cause. One cavity out of four responding differently means mold temperature, venting, or gate fill. I confirm ratio with a pump calibration before blaming mold, then check cavity temperature on the same shot.
Why do parts pass in the morning and fail in the afternoon?
It depends on what changed with the shift. The usual suspects are rising material tank temperature, a feed pump losing prime as the drum level drops, or mold circuits warming after hours of running. A morning calibration done on cold material does not always hold in the afternoon. I map shot weight and material temperature over the day. If the density follows the temperature curve, the equipment is not yet stable across operating conditions.
How many parts should we cut before deciding the line is stable?
In lines I have audited, cutting three random parts from one shift is not enough. I cut at least one part from the start, middle, and end of the shot sequence, then one from each cavity at the afternoon temperature peak. That gives a pattern across time and tooling. If those sections hold density and hardness within spec, the line is directionally stable. If they do not, you already have the shot clock and temperature data to find where it moved. Share your shot weight and density range and we will confirm which calibration checks apply; send the details to [email protected].
