PU vibration damper production usually fails at the equipment boundary, not in the lab formula. A compound that molded at 55 Shore A with 42% rebound and 8% compression set can drift to 48 Shore A, 30% rebound, and 14% set on the shop floor when metering ratio, mixing quality, degassing, and mold fill are not held stable. Hardness, rebound and compression set are not independent material properties; they are process outputs. This article traces each property back to the machine parameters that control it, so production managers can specify equipment around the parts they actually have to mold.
The Property Triangle in PU Vibration Dampers
Hardness sets the part’s static deflection under load. Rebound describes how fast it returns energy after compression. Compression set records how much permanent deformation remains after the part is compressed at temperature and released. In damping applications all three must hold at the same time, but they pull against each other. A formulation change that raises hardness through higher crosslink density often lowers rebound and can raise compression set if cure is incomplete. That is why the production line, not just the resin system, has to be configured around a narrow processing window.
| Property | What it tells the designer | Main production variables | Typical equipment-linked failure |
|---|---|---|---|
| Hardness | Static deflection and load capacity | Isocyanate index, mixing ratio, mold temperature | Ratio drift softens or hardens parts within the same batch |
| Rebound | Energy return and dynamic response | Mixing quality, void content, phase separation | Air entrapment and poor mixing cut rebound below lab values |
| Compression set | Permanent deformation after loaded heat aging | Cure completeness, void content, stoichiometry | Incomplete cure or trapped gas raises set above specification |
In practice, I treat hardness and compression set as the two properties that tell the most about the line. Rebound is sensitive to the same errors but fails later. A damper can pass Shore A and still be rejected for rebound if the mixing head shears the foam differently than the lab mixer did.
Metering Ratio Control for Hardness and Rebound Stability
Hardness starts with the weight or volume ratio of polyol, isocyanate, and chain extender. A ratio shift moves the actual isocyanate index, and that moves hardness more than most processors expect. On a microcellular damper line, a 1% deviation in the stream can shift hardness by 2 to 3 Shore A points and push compression set beyond the part tolerance. The lab batch may look perfect because a hand mix was weighed correctly; the production machine has to repeat that same weight ratio hundreds of times per shift.

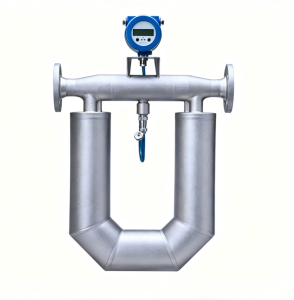

Closed-loop servo metering and mass-flow feedback keep the ratio inside ±0.5% on the Haifeng low-pressure machines we build. The LJJ series uses metering pumps tied to a flow control loop, and the machine records each shot’s setpoint and actual flow. That record is what separates a controllable process from a machine that runs on knob position.
Temperature control matters here as much as pump accuracy. Viscosity changes with material temperature, and pump output shifts when day-tank temperature drifts. Recirculation and temperature-conditioned tanks keep the component ratio stable during start-up and after short stops. If your line has to start cold every morning, the first eight to twelve shots are usually the ones that fail the hardness audit.
Ratio drift usually shows up as a moving hardness target, not a sudden failure. <Guide to Low-Pressure Foaming Machines for PU Elastomers> covers pump selection, dynamic versus static mixing, and why small-flow metering places tighter demands on pump turndown than high-output lines.
If your damper formulation uses filled polyol or a chain extender ratio below 8%, it is worth confirming the metering pump’s minimum flow accuracy and the mixing head’s solvent-free shutdown path before finalizing the line. Contact [email protected] with the part target hardness and shot weight, and we will check the specification against the process window.
Degassing, Mold Fill and Compression Set Control
Compression set in PU vibration dampers is not just a cure problem. Trapped air, moisture, or short fill all raise permanent deformation after heat aging. Vacuum degassing on the day tanks or in the mixing head removes air and dissolved gases before the shot. Without it, the part may have the right hardness from the correct index, but rebound drops and compression set climbs because the foam structure is full of microvoids that collapse under repeated load.
Mold fill is the other half of compression set control. If the cavity fills too slowly, the material can gel before the part is fully packed, leaving high-density skin and a soft core. Fast injection with inadequate venting traps air at the end of fill, and that same trapped air becomes a set site. The pour pattern, injection rate, and vent locations have to be matched to the part’s free-rise density and the mold orientation.
I have seen damper programs where the lab part passed at 6% compression set, but production parts stabilized at 13% because someone shortened the degassing cycle to recover a few seconds per shot. The savings were lost in regrind and sorting.
PU Vibration Damper Equipment Specification Checklist
Most damper parts fall into two equipment routes: low-pressure microcellular dispensing for smaller parts and medium-hardness shapes, or high-pressure impingement mixing for fast-cycle microcellular parts with complex fill. Cast elastomer lines take over when the part is solid and above 80 Shore A. The machine class matters less than the process window: constant component temperature, accurate shot weight, degassing, and a mixing head that can hold shear without cooking the material.
Specify the line around the worst-case part, not the average. Low-pressure gear pump systems fit smaller outputs and filled materials because they can throttle smoothly. High-pressure impingement systems deliver fast injection and short cycle times, but they need consistent material nucleation and tight pressure balance. Robotic pouring helps when damper cavities are curved, multi-depth, or require a programmed pour path instead of a straight drop.
If the same program extends into jounce bumpers or other automotive stops, the auxiliary equipment around the metering skid starts to dominate floor space and cycle time. <Polyurethane Turnkey Plants: Guide to Polyurethane Bumper Stopper Manufacturing> covers mold station layout, metering capacity, and inline quality checks for turnkey bumper stopper plants.
Confirm these points before freezing the line specification:
- Shot weight range sits within 20% to 85% of pump capacity, not at the extreme ends.
- Day-tank vacuum and mixing-head degassing meet the target free-rise density.
- Component temperature, ratio setpoint, and actual flow are recorded for every shot.
- Venting and injection rate match the largest cavity volume on the mold.
The specification work pays off quickly. If you are building a line for PU vibration dampers, send the part drawing, target hardness range, rebound requirement, and expected batch size to [email protected] or WhatsApp at 86 13566296633. We will check the metering, mixing, degassing, and mold-fill parameters against your part specifications before you commit to tooling.
Common Questions About PU Vibration Damper Processing
Does higher hardness always reduce rebound in PU vibration dampers?
Hardness and rebound often trade off, but they do not have to. Rebound is controlled more by phase separation, void content, and mixing quality than by hardness alone. A well-mixed microcellular damper at 55 Shore A can out-rebound a poorly mixed 45 Shore A part. The mistake is treating Shore A as the only quality gate. When production preserves the lab mixing and degassing conditions, hardness and rebound can stay within the same specification window. If rebound drops while hardness remains on target, look first at the mixing head, air entrainment, and component temperature drift, not the formula.
Why does compression set drift upward in production when lab samples pass?
Lab samples rarely reproduce production stress, so the lab result is not a promise, it is a baseline. In the lab, mixing is often weighed, degassed, and cured under controlled conditions. On the floor, shot-to-shot ratio drift, shorter degassing, lower mold temperature, or early demolding can all leave the part under-cured or gas-rich. Either condition raises compression set after heat aging. I look at the first shots after a cold start and the last shots before a material change first. Those are the two points where compression set usually separates from the lab number.
Which mixing system works best for microcellular damper parts?
Choose based on viscosity and free-rise density. High-speed dynamic mixing gives better distribution when the polyol side contains fillers, flame retardants, or nucleation gas and the part target is below 300 kg/m³. Static mixing can work for clean low-viscosity systems with narrow ratio ranges, but it gives less shear and tolerates less variation in component temperature. If the damper part must pass rebound and compression set, dynamic mixing is usually the safer default unless the machine’s cleaning cycle cannot keep up with short shot intervals.
What metering accuracy actually matters for PU vibration damper production?
In damper programs we have commissioned, I set ±0.5% as the acceptance target on each component stream. Tighter than that is good for record-keeping, but it usually costs more than the part requires. Looser than ±1% shows up quickly as Shore A scatter and compression set drift across a shift. The acceptance test should run at the smallest shot weight the line will produce, because turndown and low-flow stability matter more than full-scale accuracy. Also ask for the ratio to be recorded in the shot log, not just displayed on the HMI.
Can one line handle multiple PU vibration damper hardness grades?
The more useful question is whether the line can switch between curative systems without cross-contamination. Changing from a 55 Shore A part to a 75 Shore D part usually means changing chain extender ratio or the chain extender itself, not just temperature. A machine with separate additive or curative circuits and a flushed mixing head can do it. A single fixed-curative line will produce off-spec parts every time it crosses hardness families. Specify the tooling and cleaning path around the hardest switch, not the easiest one. If your production plan covers multiple hardness grades, email [email protected] with the full part range and we will confirm the metering and cleaning sequence before quoting.
