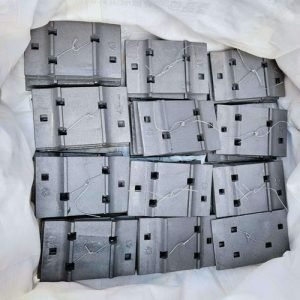

Polyurethane rail pad quality usually fails before the part leaves the mold. The root cause is rarely the polyol or isocyanate alone; it is the ratio, temperature, and mixing history that determine how the material cures. That distinction matters because a rail pad has to repeat the same static stiffness and dynamic stiffness through millions of load cycles, especially under high-speed rail traffic. I approach rail pad production from the equipment side first. If metering and mixing stay stable, the specified hardness becomes a controllable output rather than a batch-to-batch hope.
Service Conditions That Shape Rail Pad Material Choice
A rail pad is not simply a soft piece under the rail. It sits between the rail foot and the sleeper or slab track and manages vertical deflection, lateral restraint, vibration isolation, and electrical isolation at the same time. High-speed passenger service punishes the pad with fast load cycles and small amplitude deflection, so dynamic stiffness stability and low compression set matter more than initial hardness. Heavy-haul freight lines apply higher axle loads and more shear, so cut growth resistance and abrasion resistance move up the priority list. Metro and light rail systems often add stricter noise and vibration limits, which pushes the design toward lower stiffness and electrical isolation.
The material has to work through wet, hot, cold, and sometimes oil-contaminated conditions without losing its load-deflection curve. That is why the first design question is not “which hardness” but “which load history and environmental exposure will the pad see.” Once those conditions are clear, the formulation can be selected without overbuilding the part.
Polyurethane Rail Pad Formulation and Hardness Selection
Rail pads are usually made from compact cast polyurethane elastomer or a controlled microcellular version, depending on the stiffness and acoustic target. Compact systems give higher load capacity and better dimensional stability. Microcellular systems can soften the spring rate and improve vibration isolation but demand tighter density control, because the cell structure becomes part of the stiffness.
The most common systems begin with MDI- or TDI-based prepolymers and use BDO, MOCA, or HQEE as the chain extender. The choice changes pot life, mixed viscosity, exotherm, and hardness build. For rail pads that sit in water and sun, hydrolysis resistance matters, so polyether-based polyols often become the safer baseline. Polyester polyols can offer better mechanical strength in dry conditions but need stronger protection against moisture attack.
| Service type | Typical Shore A starting range | Main material requirement |
|---|---|---|
| High-speed passenger | 75 to 85 | Stable dynamic stiffness and low permanent set |
| Heavy-haul freight | 80 to 90 | Compression set, cut growth, and abrasion resistance |
| Metro or light rail | 65 to 80 | Vibration isolation and electrical isolation |
These are starting ranges, not specification values. The final grade must be confirmed against the track support stiffness, the axle load, and the service temperature range.
Rail pad formulation decisions sit inside a wider polyurethane cost picture. <The 2026 Polyurethane Supply Chain Squeeze: Navigating the Global Price Surge> explains how MDI and TDI price shifts change the economics of elastomer programs and why locking the formulation early matters.
Compact Cast Elastomer vs Microcellular Pads
Compact cast elastomer is the safer default when the pad has to hold a precise thickness under high axle load. Microcellular material can reduce weight and adjust the spring rate, but the foam structure must be nucleated and mixed uniformly. If the mixing head shears the material unevenly or the metering drifts, the density changes across the pad and the stiffness no longer tracks the design curve.
MDI, TDI and Chain Extender Choices
MDI systems generally build hardness quickly and support fast demolding. TDI systems can give lower mixed viscosity and a longer working time, but they usually require more careful temperature control and ventilation. MOCA offers high strength but is a slower, hotter cure. BDO is cleaner to handle and works well for medium-hardness pads. HQEE can support higher performance but raises viscosity. The equipment must be configured for the curative selected, not the other way around.
Metering, Mixing and Mold Filling That Determine Pad Consistency
This is where most rail pad programs either lock in repeatability or accept hidden scrap. A rail pad’s stiffness depends on the ratio of polyol, isocyanate, and chain extender, and on how completely those components mix before the material enters the mold. The mixing head has to discharge a homogeneous shot every cycle, and the metering pumps have to hold that shot within a narrow tolerance at the actual flow rate.
In my experience, a ratio drift of one percentage point can show up later as scattered Shore A values and shifted compression set, even when every pad looks fine from the outside. The problem is delayed. Pads may pass visual inspection and then fail the static stiffness test after curing because the network never formed the way the formula intended. That is why closed-loop servo metering matters as much as the mixing head itself. The system should record each shot, not just the nominal recipe.
Temperature control sits on the same level. If the isocyanate line is ten degrees colder than the polyol line in the morning, the viscosity difference changes the pressure balance and the ratio at the mix point. Heated tanks, recirculation loops, and jacketed hoses keep the materials at a stable viscosity before metering. Vacuum degassing before the shot removes moisture and entrapped air, which otherwise become bubbles or pinholes at the pad surface.
Why Ratio Drift Shows Up as Scattered Stiffness
Urethane hardness is not linear with excess isocyanate. A small shift changes the crosslink density and the load-deflection curve in a way that is difficult to detect during pouring. By the time the lab reports a low batch, the machine has already produced more of the same defect. Shot records and ratio trending are the practical answer, because they catch drift before the parts ship.
Mixing Head Selection for High-Viscosity Elastomers
Rail pad resins can be far more viscous than shoe-sole foam systems. The mixing head must handle that viscosity without bypassing unmixed material at the wall. Dynamic mixing heads with high-shear elements give the most uniform structure for filled or high-viscosity systems, but they require the right RPM and a reliable cleaning cycle. Static mixing can work for lower-viscosity formulas but leaves less margin when fillers or a second curative are added.
If your rail pad project mixes compact and microcellular grades in one line, the viscosity swing is the first thing to confirm before finalizing the equipment configuration. Send the viscosity curves to [email protected] and we can confirm the range.
Molding, Curing and Demolding Process Windows
The mold has to do more than shape the pad. It has to manage the exotherm, vent the air, hold thickness, and release without distorting the part. Rail pads are usually open-pour or low-pressure injected into flat multicavity molds. The pour pattern, the fill time, and the venting determine whether air leaves the cavity or stays trapped at the surface.
Mold temperature controls the cure rate and the surface finish. A cold mold can skin the material before the cavity fills and create flow lines. An overheated mold can shorten the gel time enough to trap rising bubbles. The process window is narrow for high-speed rail pads because the part has to be flat and consistent from cavity to cavity, not just from batch to batch.
Demolding time is a tradeoff. Pull the pad too early and the part may warp or shrink after release. Hold it too long and the cycle time costs money without adding value. Post-curing often stabilizes compression set and hardness after demolding, but it must be part of the recipe before the line is specified. Shrinkage also has to be known in advance, because pad thickness is a controlled dimension and the mold cavity must be cut to compensate.
The equipment choice follows the process window. A casting machine that cannot hold shot size, mix temperature, and demold cadence will turn a good formula into inconsistent pads. I have seen lines where the mixing head was capable, but the mold handling was the bottleneck because the cure time was shorter than the operator’s demold sequence. That is an equipment scope problem, not a material fault.
A rail pad casting line is a small turnkey system. <Polyurethane Turnkey Plants: Guide to Polyurethane Bumper Stopper Manufacturing> covers how metering, mold handling, and temperature control are connected in elastomer production and where scope gaps usually appear.
Getting the Rail Pad Process Right Without the Trial-and-Error Cost
The most expensive way to develop a polyurethane rail pad is to buy the machine first and discover the material behavior later. The pad only works when the formulation, the mixing conditions, and the mold cycle are defined together. A production line that holds the ratio within a narrow band, keeps the material temperature under control, and records every shot gives the technical team a chance to solve problems with data instead of guesswork.
Haifeng Polyurethane Machinery builds turnkey polyurethane lines with closed-loop metering, heated material handling, and process data recording for elastomer parts like rail pads. The same equipment discipline applies whether the pad is compact or microcellular, high hardness or low. We are not starting from a standard machine catalog and hoping the application fits.
If your rail pad program involves mixed hardness grades, microcellular construction, or railway-specific traceability requirements, the specification should be confirmed before the line is built. Send your part drawing, target Shore A range, expected annual quantity, and material data sheet to [email protected] or reach us on WhatsApp at +86 13566296633. We will define the metering configuration, mold handling, and acceptance limits that match the service conditions, not just the brochure numbers.
Common Questions About Polyurethane Rail Pads
What is the difference between polyurethane rail pads and rubber pads?
Polyurethane rail pads usually hold their hardness and compression set better over time than natural rubber pads, especially when the load cycles are fast. Rubber can be cheaper up front, but polyurethane gives a wider stiffness range and better cut growth resistance in many track conditions. The tradeoff is processing control. Polyurethane demands precise ratio and temperature control, while rubber is more forgiving in the mill. The best choice depends on the service load, the expected life, and whether acoustic or electrical requirements dominate.
Which hardness should we start with for high-speed rail pads?
It depends on the track support stiffness and the vehicle speed. Many high-speed programs begin in the Shore A 75 to 85 range, but the dynamic stiffness under frequency matters more than the static number on a data sheet. If the track slab is already stiff, a lower hardness pad can restore some resilience. If the pad is too soft, rail deflection may exceed the design limit. Test the pad under the actual load and frequency range before locking the grade.
Why do rail pads vary in stiffness and thickness from batch to batch?
Most variation comes back to ratio drift, mix quality, or mold temperature. If the metering pumps deliver a slightly different isocyanate fraction, the crosslink density changes and the hardness shifts. If the material is not degassed or the mold vents poorly, trapped air changes the effective density and the load-deflection curve. Thickness variation usually comes from shrinkage compensation or inconsistent demolding. The fix is not always the formula; it is often the machine record telling you where the process moved.
Can one casting machine run both compact and microcellular rail pad formulas?
Yes, if the metering range, mixing head, and temperature control are specified for both viscosity ranges and the microcellular formula’s nucleation method. A compact system may need a slow, controlled pour to avoid air entrapment. A microcellular system may need precise gas loading or blowing agent addition and a mixing head that keeps the cell structure uniform. If the machine cannot switch recipes without contaminating the lines, the changeover waste will erase the flexibility. That question is easier to answer with the material data sheet and the target monthly output. Send both to [email protected] and we will recommend one line or two dedicated stations.
