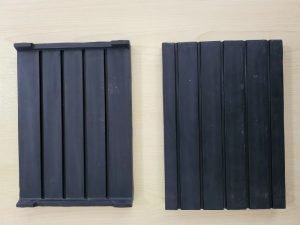

A rail pad that leaves the mold at the right Shore A hardness can still fail the dynamic stiffness check after curing. I have seen this exact failure drag out a qualification program because the team chased the formulation when the real issue sat in head pressure, dissolved moisture, and mold fill. Hardness is a material property. Dynamic stiffness is a structural response. Treating them as the same value is the fastest route to batch to batch rejection. Good polyurethane rail pad hardness and dynamic stiffness control starts at the meter, not at the hardness tester.
What Makes Hardness and Dynamic Stiffness Drift in Polyurethane Rail Pads?
Shore A hardness answers how much the surface resists indentation. Dynamic stiffness answers how the pad reacts to a cyclic load at a set preload and frequency. The two values track each other only when the part is solid, fully cured, and geometrically stable. A small void under the rail seat may change Shore A by almost nothing and still cut dynamic stiffness because the pad deflects differently at load. The most common drift sources sit upstream of the mold: prepolymer temperature, component ratio, moisture, air entrapment, and mold fill pattern.
Material suppliers give a hardness range for a given curative level, but the production result moves when the metered ratio moves. In high-hardness CPU systems, a shift in the curative side of less than one part by weight can push a batch outside a narrow specification. Dynamic stiffness then shifts again because the cured matrix modulus changes. That is why the line should lock temperature, ratio, and degassing before the first test pad is pulled.
Which Metering Errors Cause Hardness Variation in Polyurethane Rail Pads?
Component ratio is the largest knob. In polyurethane elastomer casting, the isocyanate index and the curative content determine crosslink density, which sets the modulus behind Shore A. A pump that holds steady speed under clean conditions may still deliver the wrong ratio when inlet pressure drops, the material warms, or the head begins to bypass. High-viscosity filled systems make this worse because viscosity changes flow more than pump speed changes it.
Ratio drift is usually easier to correct at the pump and pressure-control level than at the formulation. <PU Casting Machine Mechanics: Mastering Metering Pumps & Hydraulic Pressure [Part 4: Mechanics & Fluid Dynamics]> covers why inlet pressure and discharge pressure both matter for repeatable flow and what happens when bypass increases under high-viscosity conditions.
| Drift source | Hardness effect | Dynamic stiffness effect | First check |
|---|---|---|---|
| Component ratio shift | Direct through crosslink density | Direct through matrix modulus | Pump calibration and inlet pressure |
| Dissolved moisture | Small to moderate | Larger through void formation | Vacuum level and material temperature |
| Mold temperature drop | Skin hardness variation | Shape and preload variation | Mold coolant flow |
| Air entrapment | Small | Large through internal voids | Mixer speed and stream velocity |
Ratio stability across a shot matters more than a single clean calibration. A metering system that records actual flow and pressure can show a drift beginning before parts fall out of specification. For rail pad work, I would rather see the same ratio delivered at 20%, 60%, and 100% of shot size than a perfect ratio at one setpoint.
How Does Degassing and Mold Fill Affect Dynamic Stiffness?

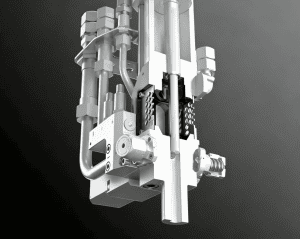

Dissolved gas and entrained air create compressible voids that soften the pad under load. The mold can be full and the surface can look fine while microvoids sit below the outer skin. For rail pads made from hot cast elastomer, the degassing stage has to happen before the material reaches the mold, and the mix head has to avoid re-introducing air during pour. Vacuum level, material residence time, and stream velocity all influence how much gas stays in the shot.
- Degas the prepolymer and curative before metering, and hold temperature in the tank.
- Bring the mold to the set preheat temperature before the first shot, not just the platten.
- Pour or inject along a fill path that lets air leave the cavity without jetting.
- Hold the cure cycle long enough for the pad center to reach full conversion, not just the surface.
Dynamic stiffness is not a single material value. The same formulation in a 10 mm pad and a 5 mm pad gives different values at the same preload. If the part geometry stays fixed, the remaining levers are metered ratio, void content, and cure conversion. A line that keeps these three in control will see far less scatter in the dynamic stiffness report.
If your rail pad uses a filled system or a high-viscosity prepolymer, it is worth confirming the actual delivered ratio across a full shot before finalizing the pad specification. Share the material TDS and the minimum shot weight at [email protected]; this changes the pump and head selection.
What Production Discipline Holds Dynamic Stiffness Over a Full Batch?
I have watched a rail pad line pass morning samples and fail afternoon samples with no formula change. The day tank temperature rose about 6 °C after lunch, which lowered the prepolymer viscosity and changed volumetric delivery. Hardness moved enough to catch attention, but dynamic stiffness failed first because the test magnifies small modulus shifts under preload. Batch-level control means recording shot time, component temperatures, ratio actual, vacuum level, mold temperature, and cure duration for every cycle. A single lab sample will not catch a drift that happened between pull times.
The heaviest discipline is not the hardness tester. It is the machine log. If the metering system records actual flow and pressure against a recipe, a technician can see a drift begin before the part leaves specification. Recipe, shot, and batch records matter more than the final release test, because they show the process that produced the test pad.
Most batch instability does not come from a single broken component but from small drifts that overlap. <Continuous PU Foam Production Line Maintenance: How to Prevent Costly Downtime and Defects> covers why shift-level checks catch these drifts before they become out-of-spec material.
What Should You Confirm Before Signing Off the Rail Pad Process?
Hardness and dynamic stiffness instability usually trace back to a process parameter that was measured but not locked. Before accepting a line or changing a material system, confirm the metering accuracy across the smallest shot, the degassing capacity for the actual batch size, the mold temperature profile, and the cure time at full pad thickness. Send the part drawing, target Shore A range, dynamic stiffness preload and frequency, material system, and expected daily output to [email protected]. Or send a WhatsApp message to 86 13566296633 with the pad dimensions and test spec. A short spec review is faster than a failed batch.
What Questions Do Production Teams Ask About Polyurethane Rail Pad Hardness Control?
Does higher material hardness always increase dynamic stiffness?
Not always. Hardness tracks the matrix modulus, but dynamic stiffness also depends on pad thickness, shape factor, preload, and internal voids. A harder formulation can still test soft if molding leaves microvoids or incomplete cure. Conversely, a thinner pad with a high shape factor can produce high dynamic stiffness at moderate hardness. Hardness is set mainly by stoichiometry and crosslink density. Dynamic stiffness is set by the same factors plus part geometry and void content.
Which test matters more, Shore A or dynamic stiffness?
Many teams treat Shore A as the primary release test and call it done, but that misses how the pad behaves under track preload and cyclic loading. For rail pad qualification, dynamic stiffness is the closer predictor of in-track performance. Shore A remains useful as a fast process check. If the two disagree, trust the dynamic stiffness result and look for a process cause: air entrapment, short fill, poor cure, or a ratio drift the hardness tester did not catch.
Can a rail pad pass hardness but fail dynamic stiffness?
It depends on the pad geometry, the test preload, and the void content. A thick pad with internal microvoids can pass Shore A and fail dynamic stiffness because the indentation test only probes a small surface zone. A thin pad with a high shape factor may show the opposite pattern. That is why a production audit should compare hardness and dynamic stiffness on the same pads across first, middle, and last shots of the day, not on one release bar.
How much process data should a rail pad supplier keep?
In qualification programs I have reviewed, batch records matter as much as the final test report. A supplier should hold individual shot time, component temperatures, ratio actual, vacuum level, mold temperature, and cure duration for every shift. That record lets you trace a failed pad back to a specific cycle instead of quarantining the whole lot. If your specification calls for a narrow dynamic stiffness window, share the preload and frequency with the equipment supplier before freezing the line design. Send the drawing and test method to [email protected] and confirm whether the metering and degassing configuration will hold that window.
