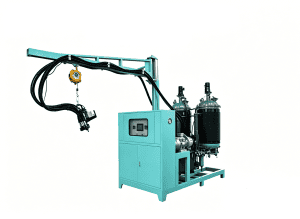

A polyurethane foam injection machine transforms liquid components into precisely molded foam parts through a tightly controlled sequence of metering, mixing, and mold filling. I have watched a 1% deviation in the component ratio push finished part density outside specification by more than 3 kg/m³, generating scrap that eats straight into margin. This article examines how metering accuracy, mixing head design, and mold filling dynamics interact, and what production engineers and plant owners need to check before a single kilogram of raw material enters the system.
How Metering Accuracy Controls Foam Density and Part Repeatability
Metering begins at the pump. In a polyurethane foam injection machine, the metering unit delivers polyol and isocyanate at a fixed ratio, typically 100:30 to 100:50 depending on the formulation. The entire downstream process inherits whatever error the pumps introduce. A gear pump with a standard mechanical adjustment may drift by ±1.5% over an eight‑hour shift, especially when material viscosity shifts with temperature. That drift alone can push a molded part from acceptable to reject before anyone notices.
Servo‑driven closed‑loop metering changes the dynamic. By continuously monitoring flow rate and adjusting motor speed to compensate, it holds the ratio error under ±0.5%. In a production run of 5,000 automotive headrests, that stability translates to fewer than 25 density‑related rejects instead of 75 or more. I have seen Haifeng’s servo direct‑drive closed‑loop system maintain ratio integrity across 24‑hour continuous runs on high‑resilience foam for car seats, with complete batch traceability through the PLC log.
The key parameters to watch during daily operation are:
– Pump seal condition: worn seals allow backflow that corrupts ratio accuracy.
– Material temperature at the metering unit inlet: a shift of 5 °C can alter viscosity enough to change delivered mass per stroke.
– Suction‑side pressure: cavitation introduces air and erratic flow.
Even the best closed‑loop control cannot compensate for a starved pump.
The Mixing Head: Where Metering Meets Reaction Kinetics
The mixing head is the instant where the two components meet and begin reacting. Polyurethane foam injection machines rely on either a low‑pressure mechanical mixer or a high‑pressure impingement mixing head. In low‑pressure systems, a high‑speed stirrer disperses the components under turbulent flow, achieving mixing uniformity above 99% when the stirrer speed is matched to throughput. High‑pressure mixing heads, by contrast, force the streams to collide at over 100 bar, and mixing is complete in milliseconds.
The difference matters for mold filling. Incomplete mixing leaves unmixed streaks that cure as hard or soft spots. A mixing head whose internal seals are worn will leak one component into the other’s recirculation line, creating cured material in the ports that eventually blocks flow. That blockage often first appears as a gradual density rise in morning‑shift parts, prompting unnecessary formula adjustments. My habit is to check recirculation pressure at both sides before the first pour; a 5–10 bar rise on one side signals a developing obstruction.
The E‑type mixing head Haifeng deploys on its pouring machines uses a multi‑stage staggered spiral design that deliberately shears the material in thin layers, forcing a microlayer flow pattern that raises mixing uniformity above 99.5%. That same head maintains temperature within ±0.5 °C inside the mixing chamber, a tolerance that matters more than the raw mixing speed because reaction rate doubles roughly every 10 °C. Pour at 25 °C versus 30 °C, and the cream time shifts enough to alter how the foam rises inside the mold.
Mold Filling Dynamics: Balancing Flow, Air Entrapment, and Cure Timing
Mold filling is not as simple as pumping foam into a cavity. The filling pattern, injection pressure, and venting design determine whether the final part is free of voids, knit lines, and density gradients. Most polyurethane foam injection operations use an open‑pour method: the mixing head dispenses the raw mixture into an open mold that then closes. The pour path must avoid sharp corners that trap air and must deliver the exact shot weight within ±0.5 g for small parts.
A mold that fills too quickly entrains bubbles before the mixture can rise; too slowly, and the first‑delivered material begins reacting before the cavity is full, creating a density layer visible as a horizontal seam. For a steering wheel inner core, the pour typically starts at the deepest point and spirals outward. I have seen a plant cut its scrap rate from 4% to under 1% simply by reprogramming the robot pour path to keep the stream continuous and avoid pauses that allowed a skin to form.
For production teams comparing high‑pressure and low‑pressure mixing technology, <High Pressure vs. Low Pressure Polyurethane Foam Machine: How to Choose the Right One for Your Production> covers how output rate, mix quality, and maintenance costs differ, and when the higher capital cost of a high‑pressure system pays back through lower scrap.
The robot‑assisted pouring system Haifeng integrates uses a 6‑axis robot with ±0.05 mm repeatability, synchronizing arm speed with the metering pump’s flow rate. That synchronization means the bead size stays consistent whether the gun is moving fast across a straight section or slowing into a tight radius. For a medical sponge line running a biocompatible formulation at 3 kg per shot, that level of control prevents the pour‑to‑pour weight variation that forces the quality lab to reject whole batches.
Mold temperature management is the other half of filling control. A mold that is too cold quenches the reaction at the surface, producing a dense skin and a soft core; too hot, and the foam collapses before it cures. Practically, mold temperature should be held at 40–55 °C for most flexible foam applications, verified by a contact thermocouple at the start of each shift. I have walked into a plant where operators blamed the metering machine for density variation, but the root cause was a coolant line that had been partially throttled, dropping mold temperature unevenly across the eight‑cavity tool.
Common Injection Defects and How to Troubleshoot Them
Every polyurethane foam injection machine eventually produces defective parts. The difference between a well‑run line and a crisis is how quickly the cause is isolated. Here are the four most frequent defects I encounter, with the first check that usually identifies the source:
| Defect | Common Cause | First Check |
|---|---|---|
| Density variation | Ratio drift | Compare actual pump output weight per stroke against setpoint over 20 cycles |
| Surface voids | Air entrainment or insufficient venting | Inspect pour pattern for free‑fall distance; check vent slots for partially cured residue |
| Hard spots or soft streaks | Insufficient mixing | Sample the stream into a cup and observe color uniformity before gel point |
| Shrink marks after demold | Overpack or cure imbalance | Measure peak exotherm temperature; reduce shot weight by 2% and re‑check |
The most expensive mistake I see is assuming the mixing head is the problem when the conveyor index timing has drifted by half a second. That half‑second delay means the pouring gun arrives at the next station after cream time has started, and the bead splits mid‑cavity. The parts look under‑filled, operators call maintenance to adjust the shot weight upward, and suddenly every mold is overpacked—scrap generating more scrap. Before touching any equipment setting, verify that the mold‑open time, conveyor speed, and pour‑gun home position match the original process qualification records.
Selecting an injection machine for a specific part geometry and production volume involves more than comparing catalog throughput numbers. <How to Choose a PU Shoe Injection Machine> walks through the factors that matter most, including clamping force, mold carrier configuration, and multi‑density capability.
Key Equipment Selection Factors for Different Production Scales
A low‑pressure polyurethane foam injection machine suits prototyping, custom molding, or runs with frequent color and density changes. The lower system pressure (typically below 20 bar) simplifies sealing and maintenance, and the mechanical mixer can be cleaned quickly between formulations. For a furniture plant producing custom‑density cushions in runs of 200 parts, the flexibility of a low‑pressure system often outweighs its lower peak throughput.
High‑pressure machines become cost‑effective when daily output exceeds about 1,000 parts or when the part geometry demands the fastest possible fill before gel. The impingement mixing head eliminates the need for a mechanical stirrer, so solvent flushing between shots is minimized. I recall a steering wheel line that switched from low‑pressure to a Haifeng high‑pressure machine with an integrated 6‑axis robot and saw cycle time drop from 45 seconds to 28 seconds per part, with the added benefit of self‑cleaning that reduced solvent consumption by more than 80%.
For medical‑grade or food‑grade applications, material‑contact surfaces and seal materials become the deciding factor. Stainless steel pumps, PTFE‑lined hoses, and polished mixing chambers prevent contamination and withstand aggressive cleaning protocols. The metering accuracy requirement tightens further—±0.3% is achievable with the right hardware—because a formulation error in a wound dressing foam is not just a quality problem; it is a biocompatibility failure.
When evaluating a machine for a new production line, I recommend running a material trial with the actual formulation, not a generic test foam. Ask the supplier to pour 20 consecutive shots at the expected cycle time and measure shot weight, cream time, and rise time for each. If the coefficient of variation exceeds 1%, the machine will not deliver the consistency the business case assumed.
Common Questions About Polyurethane Foam Injection
What is the difference between low‑pressure and high‑pressure polyurethane foam injection machines?
Low‑pressure machines use a mechanical stirrer inside the mixing head at pressures under 20 bar, which suits small‑to‑medium batch production with frequent formulation changes. High‑pressure machines use impingement mixing above 100 bar and require no mechanical stirrer; cycle times are shorter and solvent consumption is lower, but the capital cost is higher. The crossover point where high‑pressure becomes more economical usually lies around 1,000 parts per shift for automotive‑grade components.
How important is mold temperature control compared to metering accuracy?
Both are essential, but in practice I find metering accuracy is the more common failure point because pump wear and material viscosity shifts occur gradually, while mold temperature faults tend to be more sudden and obvious. However, a well‑metered shot poured into a cold mold still produces a part with density variation. The two systems must be verified together; measuring shot weight every 50 cycles and logging mold temperature at the fill point should be standard.
Can one polyurethane foam injection machine handle multiple formulation types?
Yes, if the machine is designed for quick‑change setups. Low‑pressure machines with a cleaning cycle can switch between formulations in under 10 minutes. High‑pressure machines with automatic color‑change capability and solvent‑free needle cleaning reduce the transition time to under 3 minutes. Haifeng’s E‑type mixing head, for example, supports a sequential air‑flush/liquid‑clean/rotating‑air‑flush cycle that removes residuals without disassembly.
What is the most common startup mistake with a new polyurethane foam injection machine?
Ignoring the raw material pre‑conditioning. Drum heaters and recirculation loops must bring both components to the specified process temperature before the first shot. If the isocyanate side is 8 °C colder than the polyol side, the metering ratio appears correct but the reaction rate is skewed, and the first hour of production will produce off‑spec density. A preheating oven that holds 200 kg drums at the exact setpoint, run overnight, eliminates that variable entirely.
Why does foam density drift over a production shift even when the machine settings are unchanged?
Temperature and viscosity are the silent drifters. As the machine warms up, seals expand slightly and flow resistance changes. In systems without closed‑loop control, the delivered mass per stroke shifts. The solution is to log shot weight every hour and adjust pump stroke, not to wait until parts fail inspection. If the shift‑to‑shift density variation exceeds 2%, check for air leaks in suction lines and worn seal rings before recalibrating.
If your team is setting up a new injection line or troubleshooting density variation across shifts, send your part data and current process parameters to [email protected] or call +86-577-62776666. Confirming the metering calibration and mold temperature profile early can prevent weeks of scrap.
