Most sponge manufacturers comparing a continuous foaming line against batch operations lock onto cubic meters per hour, but the number that actually moves the profit needle lives in the scrap bin. A batch line bleeding 5% material loss on every color‑change pour, repeated three shifts a week, can erase the lower upfront capital advantage in under eighteen months. That is not a hypothetical. It describes a production floor I walked into last year where the plant manager had never tracked transition loss by grade. Changing that one measurement changed which technology he selected for his next expansion.
How Continuous Foaming Differs from Batch Operation

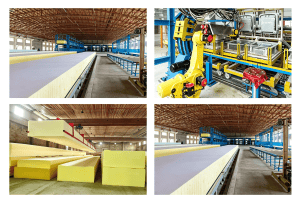

At the process level, a continuous foaming line is a single, uninterrupted pour across a moving conveyor. Raw materials, polyol, isocyanate, blowing agent, and additives, are metered and mixed in a high‑shear mixing head that travels laterally across the belt. The reacting mixture expands as it advances, forming a continuous block of foam that is cut to length at the end of the line. A batch operation, by contrast, pours a fixed volume of mixed material into a stationary mold or onto a stationary table, waits for the foam to rise and cure, then demolds and repeats.
The engineering difference that matters most to a production manager is not the line speed but where variability enters the process. In a continuous line, once the metering unit stabilizes, the foam block carries the same density from the first meter to the last. Metering pumps running in closed‑loop servo control hold the component ratio within ±0.5% across an eight‑hour shift, provided the raw‑material supply remains consistent. Batch lines live in a different reality. Every new pour is a new start‑up. The mixing head must fill, the reaction must initiate, and the pour pattern must repeat precisely. Even a one‑second delay in switching the pour pattern can create a density band that the next downstream operation cannot use.
The difference between continuous and single‑pour processing touches everything from raw material inventory to packaging line speeds. <Inside a Continuous PU Foam Line: Foam Production> covers the main stations of a modern continuous line, including side‑wall paper handling, curing oven length, and automatic block‑cutting integration, which helps explain why the capital cost ratio between the two technologies is rarely the simple 3:1 rule of thumb that spreadsheets suggest.
Where Batch Lines Still Outperform Today
Batch foaming earns its place when the order book is short, wide, and unpredictable. I am not dismissing the technology. We integrate compact low‑pressure metering stations into small‑batch lines precisely because they solve a real problem: the customer who needs sixteen different density‑hardness combinations in a single month, with average order quantities below fifty blocks per grade.
In that situation, a continuous line becomes an expensive inventory builder. The minimum economic pour length for a continuous line, the distance from stabilizing the metering head to reaching target density, often translates to twenty to thirty linear meters of salable foam. If an order calls for ten blocks of a low‑volume specialty grade, a continuous line forces the operator to either over‑produce and inventory the surplus or accept that the first portion of the run is off‑specification. Batch lines avoid both outcomes. They change grades by draining the mixing chamber, flushing, and pouring the next formulation. No transition band, no off‑spec start‑up block.
Batch also suits companies that are still validating new formulations. Development runs of twenty pours, adjusting water content, catalyst package, or surfactant level between each one, are straightforward. On a continuous line, the same iterative testing would generate a mountain of transition waste. There is a clear, practical threshold: if your plant runs more than forty formulation changes per month, a batch operation almost certainly gives you better material efficiency, regardless of what the per‑kilogram output math says.
The Real Cost of Lost Production and Transition Scrap
The cost conversation between continuous and batch foaming usually focuses on capital and labor. Capital is higher for a continuous line, no question. A complete turnkey continuous slabstock line with automated block handling will run three to five times the investment of a comparable annual‑capacity batch system. Labor per kilogram favors the continuous line; a single crew of four operators can run 300 tonnes of slabstock per shift on a well‑tuned line, whereas a batch setup producing the same total tonnage would need more hands because every pour cycle requires operator intervention.
What almost never appears on a proposal is the scrap economics of grade changes. On a continuous line, changing formulation means stopping the pour, clearing the mixing head, waiting for the previous material to fully react, and then restarting. The restart segment, typically 20‑30 linear meters, runs light on density because the metering pumps need five to ten seconds to lock onto target ratio. That segment goes into the regrind bin. If a factory runs three grade changes per day, the cumulative scrap adds up. I have seen plants lose 3‑4% of total monthly output to transition waste alone, a number that is invisible in standard accounting because it never gets weighed as a separate line item.
Batch operations have their own scrap signature. While there is no continuous transition band, every pour generates skin waste from the exposed foam surface and potential voids from pour‑pattern inconsistencies. A pour‑pattern defect rate above 0.5% of units usually signals that the operator is compensating for poor mixing‑head design or temperature drift in the raw‑material day tanks. These small losses per batch accumulate. The plant that measures only finished‑good yield misses them. The plant that measures the ratio of raw material purchased to salable foam catches them immediately.
That material‑balance perspective ties directly into how a factory monitors layer thickness, cell structure, and density across the block. <How to Reduce Waste in Continuous Sponge Foaming Production> explains the relationship between metering pump performance, side‑wall paper handling, and ventilated block storage, practical details that affect the scrap rate regardless of whether the line is continuous or batch.
How Metering Precision Affects Long-Term Profitability
This is where I see purchasing decisions go sideways. When a buyer evaluates machinery, the quoted metering accuracy appears as a line item: ±1%, ±0.5%. It looks like a small number, easily outperformed by negotiating a 3% discount on the contract price. The production reality is that the difference between ±1% and ±0.5% ratio drift, sustained over 5,000 production hours per year, can shift annual material cost by an amount that exceeds the entire metering unit’s purchase price inside of eighteen months.
The reason comes down to exothermic reaction efficiency and the TDI index. A polyurethane foam formulation is designed around a stoichiometric ratio. If the isocyanate index drifts high by one percentage point, the foam crosslinks more than intended. The resulting block is harder, more brittle, and typically less elastic. If it drifts low, the block is softer, carries residual tack, and takes longer to fully cure, delaying the slitting and laminating stages downstream. Either direction reduces the yield of prime‑grade material.

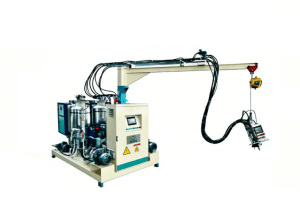

Our high‑flow box‑block machines, for example, use a servo‑direct‑drive closed‑loop metering system that compares real‑time flow signal against a setpoint ten times per second and compensates for viscosity shifts caused by ambient temperature or raw‑material lot changes. I have personally checked blocks produced after a fourteen‑hour continuous run and found density variation under 0.3 kg/m³ across the entire block length. A batch system without closed‑loop feedback, especially one relying on gear‑pump tachometers without mass‑flow correction, will show batch‑to‑batch density swings of 1.0‑1.5 kg/m³ when the material temperature differs by just five degrees between morning and afternoon shifts. Over the course of a year, that variance translates into extra raw material consumed, longer conditioning time, and a higher customer‑return rate.
The metering equation is not just about continuous versus batch. Both technologies can benefit from modern servo control. But a continuous line puts more pressure on metering stability because the line cannot pause to re‑tare the pumps between pours. Once it is running, the metering unit must hold that setpoint without operator intervention for the full shift. Batch systems have more natural recovery points, a fresh start every pour, which masks short‑term drift at the cost of start‑up inconsistency on every cycle.
Choosing the Right Technology for Your Product Mix
After two decades of configuration calls with plant owners, I have never seen a case where the right choice popped out of a cost‑per‑kg table. The decision always threads through three unglamorous questions that most evaluation templates skip.
The first is product mix width. If your business runs two or three standard density‑hardness combinations and ships to high‑volume furniture or bedding producers, a continuous line will pay back its capital faster than any other equipment decision you make. The speed, the density uniformity, and the low labor cost compound monthly. If your customer list spans automotive trim, footwear insole, packaging, and specialty mattresses, all with different firmness and color specs, the downtime and scrap from continuous‑line grade changes will consume whatever labor savings you expected.
The second is the customer’s tolerance for variation. I am not talking about the official specification sheet. I am talking about the phone call you get when a shipment feels “softer than last month.” Continuous lines deliver a narrower density distribution over a full production run. Technically, you can replicate that on a batch line by tightening your process controls, weighing every pour, recording the component temperatures, and running statistical process control. The operations that actually do that are rare. The batch line that runs by “the operator knows the feel” will always drift.
The third is the real capacity you plan to utilize. A continuous line that runs a single eight‑hour shift five days a week is a losing investment. The break‑even utilization for a typical slabstock line sits around 70% of rated output. If your market cannot absorb that volume, the capital cost per block produced will be too high, regardless of labor savings. This is where we see batch plants operating profitably at 40% utilization because their fixed‑cost base is so much lower. The math is simple. The mistake is forgetting to apply your actual order forecast instead of the optimistic one in the business plan.
Equipment selection for continuous sponge lines goes beyond the metering head and conveyor length. <How to Choose a Continuous Sponge Foaming Machine for Your Factory> walks through the checklist of line speed, curing oven design, and the difference between a line rated for polyether and one that also processes polyester formulations, because that specification alone can change the required mixing‑head material and tank‑cleaning protocol.
Pulling the Trigger with Confidence
The comparison between continuous and batch foaming for sponge production is not a matter of one technology being better. It is a matter of whether the plant’s real operating pattern, its order variability, its customer tolerance for density drift, and its available technical staff match the control philosophy each technology demands. Continuous lines reward companies that run long, stable campaigns. Batch lines reward companies that manage formulation diversity and short runs.
When the product mix and volume point to continuous, the next step is not just selecting a vendor but verifying that the proposed metering system has been demonstrated on your specific formulation, not a generic polyether‑MDI benchmark. Ask the equipment builder to show process data from a run that matches your target density, your additive package, and your ambient plant temperature. That data will tell you more about your future scrap rate than any brochure specification.
If your current numbers already point toward batch, the same discipline applies. Look at the mixing head’s post‑pour drain behavior and the shot‑to‑shot weight repeatability across twenty consecutive cycles. Those two measurements, not the pump manufacturer’s nameplate accuracy, correlate most strongly with actual yield.
We work through these trade‑offs with sponge producers every month. The most productive conversations start with a month’s worth of production data, pours per shift, grade‑change frequency, actual scrap weight by reason code. If you have that data ready, I am happy to review it together and walk through what it implies for a continuous line, a batch system, or a hybrid setup with a high‑flow batch station feeding a short curing conveyor. Reach out at [email protected] and we can set up a technical call.
Common Questions About Sponge Foam Production Technology
Is it possible to start with a batch line and later convert to continuous?
Directly converting a batch plant to a continuous slabstock line rarely makes engineering sense. The foundations, raw‑material storage, and curing‑area layouts are designed for discrete pours, not for a 30‑meter conveyor. The right upgrade path is usually to add a continuous line in a new bay while retaining the batch line for short‑run and specialty grades. That hybrid model gives you the cost advantage on volume grades without abandoning existing accounts that order three blocks of a unique color every month. If you are planning a phased expansion, the building footprint and utility routing should be laid out from day one to accept a continuous line later. Retrofitting after the roof is up costs more.
Does a continuous line need a full‑time chemist on staff?
A continuous line does not mandate an in‑house chemist, but it does demand that at least one person on every shift understands the cause‑and‑effect relationship between ambient humidity, polyol temperature, and the water level in the formulation. I have seen plants run successfully with the shift supervisor trained on six control‑loop adjustments; I have seen others fail with a PhD behind a desk because the adjustments never reached the operator floor. The equipment itself, especially with modern closed‑loop metering and automated temperature control, handles the hardest part of the ratio stability. The human role is interpreting the trend chart, not reacting to every foam rise. If your current batch operation runs without major quality swings, your existing people can manage a continuous line after four to six weeks of commissioning‑side training.
How much scrap is normal on a batch line?
The range I encounter most often is 3% to 8% of total raw material, with the low end achieved by shops that track scrap by pour, recirculate the mixing‑head flush into a separate collection, and regrind their own trim waste. The high end belongs to plants that never weigh discarded blocks and treat the bin in the corner as the cost of doing business. The biggest single lever for reducing batch scrap is not a machine upgrade; it is installing a scale at the scrap station and making the number visible to the operator and the shift supervisor at the end of every shift. When that number becomes part of the shift handover report, the improvement starts within the first week. If your batch scrap sits above 5% and you have already addressed the obvious contributors like worn pour‑pattern valves and tank temperature drift, it may be time to evaluate a metering‑system upgrade rather than a wholesale technology switch. Send me your current scrap breakdown by shift, and we can calculate whether the payback on a closed‑loop metering retrofit beats the jump to continuous.
