A PU shoe-sole line can record every mold cycle and still fail a brand audit. The problem is rarely missing data; it is data that cannot prove which shot went into which mold, under what ratio, at what temperature. MES traceability for PU shoe-sole lines delivers value only when it starts with shot-level metering records, not mold counts or finished-pair tallies. Without that link, density complaints from a customer become a warehouse-wide search instead of a contained batch correction. The data chain I look for first on shoe-sole automation projects is metering, recipe, alarm, and batch, and the traceability boundary should be set before equipment is quoted.
Traceability Starts With the Shot Record
On a PU shoe-sole line, the unit that matters is the shot, not the mold station. A shot record captures the polyol and isocyanate setpoints, actual flow, mixing ratio, discharge pressure, mixing head speed, pour time, and alarm events for one cycle. A mold count tells you that a station cycled. A shot record tells you whether the material in that mold matched the recipe and whether the machine corrected a deviation or simply recorded it.
MES becomes useful only when it consumes those shot records. If the system receives finished-pair counts from a carton scanner, it can report output. If it also receives recipe, metering, and alarm data from the PLC, it can recreate a defect. The practical test is simple: a quality engineer should be able to open a batch record and go from a finished pair to the polyol lot and shot number in under five minutes.
| Record type | What it shows | Where it falls short |
|---|---|---|
| Mold cycle count | Stations cycled and line speed | No material identity or shot quality |
| PLC shot log | Setpoints, actual flows, alarms per cycle | Raw data with no batch context |
| MES batch record | Material lots, recipes, operator, station | Empty if PLC fields were never mapped |
| Lab density sheet | Physical result after curing | Late, sampled, not linked to every shot |
Mold Counts Do Not Prove a Shoe-Sole Batch Is Uniform
High mold counts create a false sense of control on rotary shoe-sole lines. A station can cycle on time while the pour is late, the shot weight is light, or the ratio drifts during a color change. When the defect appears later as a density or surface issue, the mold counter only shows that the line was running. It cannot say which raw material lot, which operator adjustment, or which pump response produced the bad part.
Cycle count is a production metric, not a process record. <How Many Pairs Does a Rotary PU Shoe Machine Produce?> covers how rotary output depends on station count, cycle time, and transfer logic, and why a fast nominal cycle can hide dwell or pour delays that later show up as rejects.

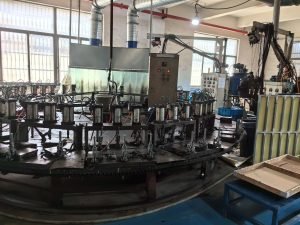

Why Rotating Lines Need Shot-to-Mold Linkage
On a carousel line, the mold position and the pour position are two separate signals. If the MES stores mold numbers but not shot timestamps, any defective pair can only be traced to a time window. Shot-to-mold linkage records the pour head position or mold RFID tag with the shot ID at the moment of dispensing. That link converts a bad density reading from somewhere in the afternoon shift into mold 14, shot 2731, polyol lot 2207.
Density and Hardness Problems Leave a Data Trail in Metering Parameters
Most density and hardness complaints on PU shoe-sole lines start as a metering problem, not a lab problem. A deviation of one percentage point in the component ratio can shift final foam density by more than 3 kg/m³, and the shift often begins before any hardness test is run. If the line captures actual component flow and ratio at each shot, the MES can flag the batch before it leaves the mold line.
The parameters I look at first are ratio deviation, shot weight, mixing head speed, and material temperature. Ratio deviation is the earliest warning. Shot weight separates short fill from foam shrinkage. Mixing head speed affects bubble nucleation and surface quality. Material temperature changes viscosity and reaction time. When those variables are recorded with timestamps, a density problem stops being a vague quality issue and becomes a pattern search.
Closed-loop servo metering makes this data more trustworthy, because the system is already measuring and compensating flow error in real time. A machine that only counts strokes or motor turns records less than it claims; a servo-driven metering pump can record the compensation value alongside the output.
Which Alarms Should a Shoe-Sole MES Keep
Not every alarm is traceability data. A useful alarm set includes ratio high/low, shot weight out-of-window, mixing head speed fault, day tank low level, and recirculation pressure loss. These are process alarms tied to a shot, not just status alarms tied to the machine. Storing the alarm code with the shot ID makes it possible to compare a bad batch against the exact alarm sequence that preceded it.
Where manufacturers lose the traceability argument is in the specification phase. If your program runs multiple sole densities, color changes, or quick mold changeovers, confirm which parameters the metering skid captures natively before the line scope is frozen. Send your target density window, shot weight, and cycle time to [email protected] or WhatsApp 86 13566296633 and ask us to check which fields belong in the PLC shot record. That single specification review can prevent a data gap that appears only when a customer files a density complaint.
Automation Closes the Gap Between Planned Recipe and Actual Shot
Manual data entry is where traceability breaks first. An operator can load the right recipe and still pour with a worn pump, a low day tank, or a ratio trim that was changed on the previous shift. Automation removes that gap by downloading the recipe from the MES to the PLC, selecting the program from the mold recipe, and capturing actual values for every cycle. The planned recipe and the actual shot can then be compared automatically, without anyone transcribing numbers into a file.
The real step change comes when the line operator stops acting as the data transfer point. <PU Shoe Production Line vs Traditional Shoe Production> covers how automated metering, mold conveying, and recipe switching reduce manual variance, and why that difference becomes visible in fewer ratio adjustments and less rework per shift.
Do Operators Still Type Anything
In a well-designed system, the operator should only handle exceptions: lot change confirmations, rework, or manual override. Normal cycle data should pass from the metering pump, flow meter, mixing head drive, and mold carrier sensors to the PLC without typing. Manual input remains useful for the events that sensors cannot see, but it should not be the primary traceability path for shot data.
Buyers Should Specify MES Fields Before Selecting the Line
The common mistake is to buy the PU line first and then ask whether it can connect to MES. By then, a machine builder may already have chosen a PLC with limited tag export, a metering skid with no batch recording, or a mold conveyor with no station identification. Traceability should be part of the equipment scope, not a software attachment.
| Data field | Where it comes from | Why it matters |
|---|---|---|
| Actual component ratio | Metering pump or flow meters | Earliest density warning |
| Actual shot weight | Flow meter or weighing feedback | Separates short fill from foam shrinkage |
| Mixing head speed | Drive feedback | Links surface bubbles and mix quality |
| Material lot ID | Barcode scan at day tank | Sets the recall boundary |
| Alarm code and timestamp | PLC event log | Reconstructs the failure sequence |
Line builders often propose MES after the machine scope is fixed. That is backwards. The traceability questions belong in the equipment specification: which parameters are captured, at what frequency, and where the batch boundary sits. If you are comparing automation packages, list the shot events your customers would ask for in a complaint. Then send that list with your target density and cycle time to [email protected] or WhatsApp 86 13566296633. We will confirm which fields the PLC can record natively and which ones need a separate MES historian before you commit to a scope of supply.
Buyers Ask These Questions About PU Shoe-Sole Traceability
What Is the Difference Between PLC Records and MES Traceability?
PLC records are the raw event log; MES traceability is the contextual batch record. The PLC captures values such as ratio, pressure, and temperature in sequence. The MES links those values to a material lot, recipe version, operator, mold, and shift. A plant can have detailed PLC logs and still fail a customer audit if nobody tied those logs to finished pairs or raw material lots.
Do We Need Full MES on a Small PU Shoe-Sole Line?
It depends on what your brand customers ask for and how many recall boundaries you run. A small line with one density, one material supplier, and low customer audit pressure can start with a PLC shot log exported to CSV. A line running multiple brands, dual density soles, or export orders usually needs a proper MES layer sooner, because the cost of a recall search rises faster than the software.
Can Old Machines Be Retrofitted for Shot-Level Traceability?
In retrofit projects I have worked on, the metering unit usually can be addressed first. Existing pumps and flow meters often already have analog or pulse outputs, so a retrofit PLC or edge gateway can capture shot weight and ratio without replacing the whole line. The hard part is usually not the machine; it is defining which batch fields the plant will use consistently.
Where Should the Batch Boundary Start for Material Traceability?
The batch boundary should start at the day tank or material lot change, not at the finished-pair carton. Starting at the carton means any raw material issue can affect multiple batches before it is detected. Starting at the day tank lets the system close each material lot with its shot records before the next lot enters the line. If your plant runs polyol and isocyanate lots with different release dates, confirm the boundary logic before writing the work instruction. Share your material lot flow and batch release sequence with [email protected] and we will confirm where the boundary needs to sit.
