Low pressure PU foam injection machines earn their place in R&D when the goal is a representative sample rather than line speed. For prototyping programs, the purchasing decision should favor metering stability, ratio flexibility, and fast cleaning over nominal throughput. A machine that holds a 0.5% ratio deviation across ten small shots will reveal more about a formula than a high pressure line filling a mold quickly. That distinction drives this article: the specification points that determine whether a low pressure machine gives honest material data or hides process variation until production.
Low Pressure Injection Suits R&D Work Before High Pressure Does
High pressure injection machines are built for speed. They use impingement mixing and fill closed molds fast, which matters once a product has been frozen. In an R&D lab, the problem set is different. Short runs, formula swapping, open molds, and small shot weights favor a low pressure foaming machine with mechanical mixing. Cleanup between trials is faster, and the material lost during flushing is smaller.
The tradeoff is real. Low pressure mixing may not homogenise a very fast-curing system as aggressively as high pressure impingement. For most prototyping work with flexible foam, rigid foam, elastomer formulations, or small polyurethane parts, the limitation shows up only when cure speed and viscosity are extreme. I have seen labs buy high pressure equipment for prototyping and then spend more time purging the mixing head than pouring parts. The choice is not about which machine is better; it is about which failure mode costs less in trial work.
Metering Accuracy Decides Whether a Prototype Represents Production
The most important number on a low pressure PU foam injection machine is not the rated output. It is the metering accuracy at the shot sizes you actually use. Polyol and isocyanate must stay at the set ratio through every shot. A machine rated at ±0.5% metering accuracy under steady conditions can still drift if flow control is tuned only for large pours. Ask the supplier for accuracy data at 100 gram, 500 gram, and 2 kilogram shots, not just rated flow.
| Parameter | R&D Prototype Target |
|---|---|
| Component metering accuracy | ±0.5% or better at trial shot size |
| Ratio adjustment range | Typically 0.8:1 to 1.2:1 |
| Mixing head | Low pressure mechanical mixing with high-speed stirring or static mixing |
| Pour head cleaning | Automatic cleaning after each pour |
| Control | PLC with recipe storage and shot weight |
| Temperature control | Separate tank and hose heating or cooling |
Closed-loop servo metering is the most direct way to hold that target. It monitors flow error and corrects the pump command continuously, which matters when viscosity changes as a polyol blend warms up. A simple gear pump without closed-loop compensation may pass a calibration test in the morning and drift by early afternoon.

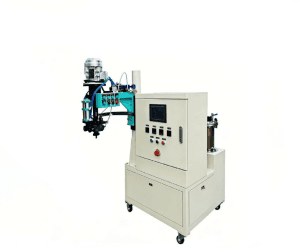

Haifeng’s LJJ Series low-pressure foaming machine combines high-precision metering pumps with PLC control and automatic pouring head cleaning. The metering accuracy is specified at ±0.5%, and the low-pressure mixing head can run two-color and dual-density molding across the three models.
Low pressure R&D machines also sit idle between trials, which creates maintenance issues that continuous lines rarely expose. <PU Low Pressure Foaming Machine: Maintenance Checklist & Troubleshooting Guide> covers the shutdown and restart checks that keep ratio drift from contaminating the next sample, including pour head cleaning and calibration after idle periods.
Small Batch Repeatability Hinges on Temperature and Recirculation
Materials remember temperature. Polyol viscosity drops as temperature rises, and that changes the pressure the metering pump sees. Isocyanate is harder: it can crystallise or dimerise if kept too cold or too warm. For small batch prototyping, the biggest error source is often not the metering pump but the material conditioning before the pump. If the day tank warms at the top and stays cold at the bottom, the first shot and the tenth shot will not match.
Recirculation solves part of this. A well-designed low pressure machine keeps both components moving through the metering loop even when the head is not pouring. That holds the temperature uniform and prevents stagnant material from settling. For trials that run only a few shots per day, an auxiliary preheating oven for 200 kg drums is useful. It brings the feedstock to a defined starting temperature before it enters the machine, which removes one more variable from the first pour.
I have watched trial programs where density varied by 2 to 3 kg/m³ between morning and afternoon shots. The metering system was fine; the material temperature was not. The fix was not a new pump. It was better drum preheating and continuous recirculation during idle periods.
If your R&D work involves filled polyols, high-viscosity additives, or wide swings in ambient shop temperature, confirm low-end shot repeatability before freezing the specification. Send your trial shot weight range and material viscosity to [email protected] or call +86 577 6585 8888, and request a metering stability check at the smallest shot you will pour.
Record These Values Before Moving From Prototype to Production
The step from prototype to production fails when the lab records density and hardness but not the conditions that produced them. A formulation is not just a recipe. It is a set of material temperatures, metering pressures, shot times, mixing speeds, and cream times. If those values are missing, the production engineer receives a target without a method.
- Component temperatures at the tank and at the mix head
- Recirculation pressure before and after the shot
- Actual shot weight and ratio check
- Cream time and gel time at the recorded temperatures
- Mixing head speed or static mixer setting
- Free rise density and molded density
These values become the machine specification for scale-up. A production line does not need to match the lab machine part for part, but it must reproduce the same reaction environment. If the lab used a 35°C polyol temperature and a 40°C isocyanate temperature, the production line should start from those numbers, not from default settings.
The transition from R&D to production often fails because labs record density and hardness but not the metering conditions that produced them. <PU Casting Machine Mechanics: Mastering Metering Pumps and Hydraulic Pressure> covers pump selection and hydraulic pressure behavior across varying shot sizes, which is exactly the information a production team needs to scale from a 200 gram sample to a full mold.
Turn Prototype Data Into a Machine Specification
The point of a prototyping machine is not to prove that foam can be made. It is to produce a set of process conditions that can be repeated. If your current trials are giving density, hardness, or surface quality results that change from day to day, the issue is usually not the formula. It is the machine conditions hiding in the background.
Haifeng Polyurethane Machinery can match a low pressure PU foam injection machine to the shot sizes, materials, and data recording your R&D program actually needs. Send your part drawings, shot weight range, and current trial data to [email protected] or call +86 577 6585 8888. A short note with the smallest and largest shot you plan to run is enough to start a specification review.
Common Questions About Low Pressure Prototyping Machines
Do I need a high pressure machine for prototyping if production will eventually be high pressure?
No, not necessarily. A low pressure PU foam injection machine can produce representative material data if metering and mixing are controlled. Scale-up to high pressure works when the lab records temperatures, ratio, shot weight, cream time, and gel time. The machine type influences mixing intensity and cycle time, but the reaction chemistry should match first. If your production formula uses a very fast cream time, test on both machine types before committing.
Some buyers assume a small shot requires a separate low-output machine.
The real question is whether the metering system remains accurate at the low end. A machine with closed-loop servo control and the right pump range may handle 100 gram trials and larger pours cleanly. Ask the supplier to demonstrate repeatability at the smallest shot, not from a brochure number.
It depends on the material pair and the cleaning method.
Separate day tanks and metering loops make switching from a flexible to a rigid formula more practical, but residual cross-contamination remains the main risk. Automatic pour head cleaning shortens the turnaround. If you plan to alternate frequently, specify a machine with fast flushing and clear recipe storage rather than adapting one tank set to do both.
In programs I have supported, the most reliable check is a three-shot sequence.
Record component temperatures, pour into a calibration cup, then weigh and measure free rise density for each shot. If the three shots differ by more than the supplier’s stated repeatability, stop and resolve the metering or temperature issue before molding parts. This test catches problems that hardness testing alone will miss. Send your shot weight range and current trial data to [email protected] and we can confirm the metering and cleaning configuration that fits your program.
