Polyurethane vibration and acoustic products live or die less by the formulation on paper than by how the liquid is metered, mixed, and gelled under pressure. Most coverage of automotive NVH and industrial vibration components stays at the material property level; this article moves to the production floor, where hardness, rebound, and acoustic performance are really set. I have seen two lines running the same nominal formula produce parts with entirely different squeak, stiffness, and compression set behavior because one drifted in component ratio while the other held it. The difference sits in equipment selection and the processing limits built around it.
What Polyurethane Vibration and Acoustic Products Do in Automotive NVH
Automotive NVH work splits into vibration parts and acoustic parts, and the failure modes are not the same. Vibration parts such as jounce bumpers, body mounts, and engine mounts work in compression, shear, or a combination of both. Their job is to absorb irregular road and powertrain inputs without passing energy into the structure. Acoustic parts, such as foam seals, barrier pads, and cavity fillers, work differently: they block airborne noise or absorb panel resonance. A production line that is good at one can still fail the other because the performance-sensitive parameters are checked at different points in the process.
One point I look at first is how a part is expected to fail in validation. A jounce bumper that hardens too early changes the suspension load path; an acoustic seal with large or collapsed cells still fits but loses high-frequency insertion loss. That distinction should drive machine selection. A metering system that holds ratio within a narrow band matters more when the part sits in the suspension, whereas a mixing head that creates uniform cell structure matters more when the part must absorb sound.
Jounce bumpers and body mounts sit at the front of most automotive NVH programs, and their production consistency depends on disciplined mold flow and shot repeatability. <Polyurethane Turnkey Plants: Guide to Polyurethane Bumper Stopper Manufacturing> covers the line layout and process controls that prevent bumper stopper production from collapsing into the batch-to-batch variation that ruins spring curves.
Which Material Properties Control Damping and Acoustic Performance
The two numbers plant teams talk about most are Shore hardness and density, but damping does not follow either one in a straight line. A 60 Shore A microcellular polyurethane can show a higher loss factor than a 75 Shore A part if the softer part has a more controlled cell structure and a lower percentage of closed cells. Dynamic stiffness, rebound, compression set, and glass transition behavior all move with formulation, but they are also shaped by how thoroughly the reacting mixture is homogenized before it reaches the mold.
In acoustic parts, the priority shifts. Density still matters for mass barrier behavior, but cell size and cell size distribution usually drive absorption performance more than density alone. When a foam part is used as a seal, the force deflection curve becomes the part’s real specification, and that curve is very sensitive to small changes in mix ratio. I have seen seals pass Shore hardness checks and fail insertion force because the foam’s modulus was fine but the density gradient across the part was not.
Why Metering Accuracy Changes the Final Part More Than the Formula
Formulation gets too much credit in troubleshooting. On a polyurethane vibration or acoustic line, the liquid processing system sets the floor for repeatability before the chemistry has a chance to do its job. A ratio offset of one percentage point in a microcellular system can move final density by several kilograms per cubic meter, and on a thin acoustic seal that density shift changes fill pressure enough to fail an assembly test. The formula itself may be unchanged. The plant just did not hold the same recipe from shot to shot.

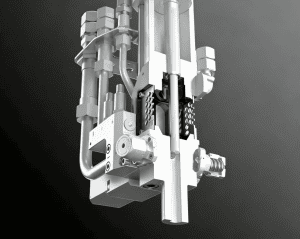

The equipment variables that matter most in this sequence are metering pump accuracy, pressure balance, material temperature stability, and dynamic mixing intensity. High-pressure impingement machines and low-pressure dynamic mixers fail differently. A high-pressure machine typically gives fast shot times and good self-cleaning at the head, but it depends on stable pressure balance across the two component streams. A low-pressure machine is more forgiving on some filled systems but requires careful control of shaft speed, residence time, and flush cycles. In both cases, the operator should watch repeatability over a shift, not just a single calibration shot.
Metering problems are easier to spot when you understand what the pumps and temperature loops are doing before material reaches the mixing head. <Guide to Low-Pressure Foaming Machines for PU Elastomers> covers the metering and mixing design choices that determine shot-to-shot repeatability on elastomer and vibration parts.
If your product family includes filled polyols, a hardness range wider than 15 Shore A across one mold set, or a foam seal that must hold insertion force over hundreds of thousands of cycles, confirm the metering window and temperature control before you fix the equipment scope. Send the part drawing and material TDS to [email protected].
What Industrial Applications Require From the Same Polyurethane Chemistry
Industrial vibration and acoustic products use the same urethane chemistry but place different demands on the production line. Rail pads need stable dynamic stiffness over millions of cycles. Mining screen panels and scraper dampers need wear resistance and damping, often with filled systems. Machinery mounts and bearing pads need predictable compression set under long-term static load. These parts are usually larger, produced in shorter campaigns, and less forgiving of hard spots or filler settling than small automotive acoustic parts.
| Application area | Typical part | Key performance property | Main processing risk |
|---|---|---|---|
| Automotive NVH | jounce bumpers, body mounts | dynamic stiffness, rebound | ratio drift during long shots |
| Rail transit | rail pads, baseplate pads | dynamic stiffness, fatigue life | density variation across the mold |
| Industrial machinery | vibration mounts, isolation pads | compression set, load rating | hard spots from poor mixing |
| Mining and processing | screen panels, scraper dampers | wear resistance, damping | filler settling in the metering line |
| Off-highway and defense | isolators, acoustic seals | broadband damping | narrow temperature window |
The same chemistry can serve both groups, but the machine layout changes. Industrial parts usually justify more attention to filler handling and larger day tanks, while automotive NVH parts push the line toward faster cycle times and tighter shot-size control. Overbuilding a line for a short campaign of rail pads creates maintenance and flush cost that the part price cannot support.
How to Specify a Vibration and Acoustic Product Line Without Overbuilding It
Start from the part drawing and the worst-case production shift, not from a machine brochure. The first variables to pin down are shot weight, cycle time, number of molds, and whether the foam or elastomer system is filled. Low-pressure dynamic mixing handles many filled and high-viscosity vibration parts well, but it carries solvent flush and pot life constraints. High-pressure impingement mixing builds pressure quickly and fits long runs of low-viscosity or high-throughput NVH foam, but it is less forgiving when the material stream contains abrasive fillers. In my experience, buying a high-pressure machine for a 400 part per day industrial isolator is a common way to spend twice as much without gaining a measurable quality benefit.
For short-run development and complex molded acoustic parts, the pressure rating is not the first thing to optimize. <Low Pressure PU Foam Injection Machine for Custom Molding: Process & Parameters> covers shot size control, temperature stability, and mold sequencing in the range where many vibration and acoustic parts actually operate. A low-pressure platform is often the better fit when annual volume and part geometry do not demand the throughput of a high-pressure line.
Once the part family and volumes are clear, the specification should include the metering accuracy you are willing to pay for, the temperature control range, the mixing head type, and the alarm logic for ratio and pressure. If you are being asked to quote a product family with multiple hardness grades or a new NVH part that must pass a vehicle-level test, the most useful next step is to send the part drawing, material TDS, required durometer range, and annual volume to Haifeng Polyurethane Machinery at [email protected] or WhatsApp 86 13566296633. That single packet lets us confirm the metering window, the mixing head configuration, and whether the line should be set up for filled or unfilled systems before you approve a final scope.
What Buyers Ask About Polyurethane Vibration and Acoustic Equipment
Can one formulation serve both automotive NVH and industrial vibration parts?
One formulation rarely crosses over cleanly. Automotive NVH parts are usually optimized around dynamic stiffness, rebound, and light weight, while industrial vibration parts often carry higher static loads and need better wear resistance or long-term compression set. A formula tuned for a car body mount may creep too much under a 20,000 kg machine base. The larger issue is not chemistry alone; the processing window changes with the application. You can sometimes share a raw material family, but validate the part on the same metering equipment that will run production. If your program spans both, send the load case and frequency range and we will confirm where the formula has to split.
Why do two parts with the same Shore hardness behave differently?
A common mistake is to treat Shore hardness as a complete specification. Hardness is a surface measurement, and it hides what happens inside the part. Two parts can both read 60 Shore A while one has a uniform microcellular core and the other has dense skin and coarse cells near the center. The second part compresses differently and loses energy differently. Shore hardness alone is a weak specification for vibration and acoustic parts. I ask for density distribution, rebound, compression set, and the force deflection curve when available. If the part is an isolator, the load-deflection slope often matters more than the hardness number on the drawing.
What matters more for acoustic parts, density or cell size?
The short question is density versus cell size, but the more precise question is which part of the frequency range matters. Density dominates mass barrier performance, where more mass per square meter blocks more sound. Cell size and cell size distribution dominate absorption, especially in the mid and high frequencies where many vehicle and enclosure noise problems appear. A foam with the right density but collapsed or oversized cells can pass a density check and still miss the insertion loss target. Before writing the specification, the buyer should know the frequency range, the installation pressure, and whether the part is a barrier, a seal, or an absorber.
When does a low-pressure machine work instead of a high-pressure machine?
In lines I have worked with, a low-pressure machine was the right choice when the annual volume was modest, the material was filled or high-viscosity, and the part family changed frequently. High-pressure impingement is harder to beat on long runs of low-viscosity automotive foam, where shot times are short and the self-cleaning head reduces flush cost. For many rail pads, machine mounts, and custom acoustic seals, a well-controlled low-pressure line gives the same part quality at much lower capital cost. The decision comes down to throughput, filler content, and changeover frequency. Share your part drawing, annual volume, and durometer range and we will confirm which platform matches the production requirement.
