Zero-pinhole PU spraying for footwear is usually framed as a surface finish target, but the real work happens in the metering and atomization chain. Most pinholes on sprayed PU shoe parts do not come from a bad polyurethane formulation. They come from trapped air, unstable component ratio, or a spray fan that breaks up unevenly. When a production manager asks me why a running line starts turning out pinhole-heavy midsoles, I look first at material temperature, metering accuracy, and gun path timing. The gap between an acceptable spray skin and a zero-pinhole skin normally sits in a handful of measurable parameters, not in the resin choice alone.
Where Do Footwear Pinholes Actually Come From?
Pinholes in sprayed PU are small circular voids that break the surface film. On footwear they show up most often on toe caps, heel counters, and smooth midsole skins where the eye catches them immediately. The mechanism is almost always gas or vapor trying to escape after the film has started to set. That gas can be atomizing air folded into a thick wet film, dissolved moisture in the polyol flashing off at reaction temperature, or air released from the substrate surface.
A formulation that works in open casting can still produce pinholes in spraying because the spray process itself introduces air under pressure. Off-ratio material makes the problem worse. When the isocyanate side runs low, the film can stay tacky long enough for bubbles to migrate to the surface and leave pinhole craters. When the polyol side is wet, the water reaction produces carbon dioxide inside the film. The first place to look is not the spray gun nozzle alone. It is the whole chain from day tank to gun tip.
What Does Zero-Pinhole PU Spraying Demand from the Mixing System?
Zero-pinhole PU spraying for footwear starts with a two-component metering unit that holds ratio under changing flow conditions. Footwear parts are small and irregular, so the spray gun starts and stops frequently. Each start-stop cycle tests the metering pumps. A gear pump system with closed-loop servo control will hold the A/B ratio within about ±1%, which keeps the reaction profile stable. The Haifeng Automation PU spraying machine meters raw material within ±1% and keeps the mix ratio adjustable from 0.8:1 to 1.2:1 for different skin and coating formulations. The patented nozzle holds coating thickness tolerance within ±2%.
Ratio error changes viscosity, gel time, and surface tension at the same moment the fan pattern is trying to lay down a smooth film. The mixing head has to shear the two components enough to avoid isolated droplets of unmixed material on the part. If droplets arrive at the surface with different reactivity, the film cures unevenly and pinholes appear at the boundaries.
Temperature control is the second requirement. Viscosity that swings with tank level or ambient temperature changes droplet formation at the nozzle, so material temperature must stay inside a narrow band. Recirculation and jacket control keep the material moving and stable while the gun is off.
Overspray from the same start-stop cycle is part of the pinhole and waste equation. <How to Reduce Waste in PU Shoe Production> covers how spray booth capture, ratio monitoring, and purge sequencing cut material loss per shift, which matters when the line has to justify a dedicated spray station.
Which Equipment Parameters Decide Pinhole Count?
Three equipment settings create most pinhole defects: ratio deviation, material temperature, and atomizing air pressure. All three interact with part size and line speed, so a parameter that works on a small toe cap can fail on a full-length midsole.
Ratio stability and metering
Off-ratio spraying is the fastest route to pinholes. A polyol-rich mix can foam later than expected, and an isocyanate-rich mix can set before the film levels. Closed-loop servomotor metering keeps the ratio deviation small enough that the reaction stays predictable across the entire shot. For footwear skins, a metering accuracy of ±1% is usually the minimum to specify.
Material temperature and viscosity
Temperature changes droplet breakup, fan width, and film flow. If the material arrives colder in the morning or after a drum change, the viscosity shift produces a different spray pattern at the same gun settings. A temperature-controlled jacket and recirculation loop keep the material at the setpoint while the gun waits for the next part index. A 5 °C drop in polyol temperature can turn a clean spray fan into a pebbled film that pinholes after demolding.
Atomizing air and gun path
Atomizing air pressure controls droplet size and kinetic energy. Too little pressure makes coarse droplets that do not flow together. Too much pressure drives air into the wet film and leaves pinholes when the film skins over. Gun distance and robot speed have the same effect: slow gun movement with high flow can deposit a film thick enough to trap solvent or air, while fast movement with low flow produces dry spray.
| Parameter | Pinhole failure mode | What to confirm |
|---|---|---|
| A/B ratio | Off-ratio material forms uncured or brittle domains | Metering accuracy ±1% or better |
| Material temperature | Viscosity shift changes droplet breakup | Setpoint held within ±2 °C |
| Atomizing air pressure | Low pressure creates coarse droplets; high pressure traps air | Fan pattern at working distance |
| Gun distance and speed | Dry spray or thick wet film traps gas | Robot path matched to flow rate |
| Substrate surface | Moisture flashes into pinhole craters | Dew point of part surface below 5 °C |
If your part includes deep undercuts or you are switching from cast to spray for a dual-density midsole, the atomization and fan pattern need confirmation against the part drawing before you lock the line specification. Send the part geometry and target film weight to [email protected] and we will check the gun and robot path configuration.
How Should You Match the Spraying System to the Part?
Spraying footwear parts requires a different gun path than flat panel coating. Toe caps curve in three directions, heel counters have tight radii, and midsoles often transition between densities. A fixed gun with a manual operator can hit those surfaces, but repeatability suffers.

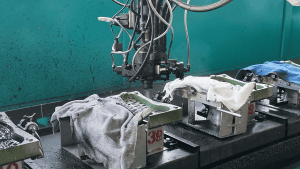

The practical solution for production is a six-axis robot carrying the spray gun. A robot with ±0.05 mm repeat positioning accuracy and a flow range from 50 to 5000 g/min holds the film thickness inside ±0.1 mm on complex surfaces. That is the range where zero-pinhole coverage stays stable because the gun keeps the same distance and angle to every point on the part.
The spray control program has to link robot speed to pump output. When the robot slows into a corner, the flow rate drops with it. Without that link, the gun pushes too much material into the corner and creates a thick, air-trapping deposit. The part fixture also matters. A part that flexes or shifts under spray pressure changes the effective gun distance and produces the same defect as a wrong fan setting.
Spraying is one station in a larger PU shoe line. <PU Shoe Manufacturing Process Step by Step> covers metering, mold flow, and cure handling in sequence, which matters when timing the spray cell so it does not become the bottleneck.
What Process Controls Keep Zero-Pinhole Footwear Coverage Repeatable?
Repeatability is the difference between one good shift and a season of pinhole-free output. A zero-pinhole PU spraying cell has to record every shot. The PLC should store recipe parameters, actual ratio, actual temperature, and shot count for each batch. If a defect appears, the first question is whether the line ran outside its normal window. A machine without that record turns a pinhole outbreak into a guess.
Automatic cleaning is the second control. Spray guns that sit idle between cycles begin to cure material in the nozzle. A one-key cleaning sequence that clears the gun in under three minutes reduces the chance of partially cured droplets arriving on the next part. Solvent flushing and air purge have to be sequenced so they do not leave residue inside the gun path.
Material recirculation is the third control. Polyol and isocyanate need slow agitation or recirculation to keep temperature and viscosity uniform while the gun is off. Static material in the line changes by the time the next shot comes through. On more connected lines, IoT monitoring tracks gun performance and flags flow drift before it shows up as pinholes. These controls do not add cycle time when they are designed into the line. They are what make a spray cell stable enough for footwear production.
The spray cell adds compressed air, heating, and robot power to the line load. <Energy Consumption of PU Shoe Production Lines> covers how drive, heating, and compressed air loads accumulate, which matters when calculating the utility envelope for a dedicated spray station.
When Should You Specify a Dedicated Zero-Pinhole PU Spraying Line?
If your current line is applying PU by hand, spraying through a converted casting machine, or fighting pinholes with release agents and slower cure, that is usually the moment to step back to process requirements. Retrofitting a general-purpose machine can mean living with the exact ratio and atomization limits that cause pinholes.
A dedicated zero-pinhole spray line is justified when the part has a visible surface, the current scrap from pinholes exceeds what a controlled spray cell would cost, or the production plan is moving toward multi-density parts and robot path control. The specification should start from part geometry, target film weight, cycle time, and material viscosity. From there, we match metering, temperature control, atomization, robot, and cleaning sequence to the part rather than forcing the part to fit a standard machine.
Send your part drawing, material TDS, and target output to [email protected] or WhatsApp +86 13566296633, and we will confirm the configuration and the spray trial plan before you commit to a line.
Common Questions About Zero-Pinhole PU Spraying for Footwear
Does zero-pinhole mean no bubbles at all in the PU film?
No. Zero-pinhole in production means no surface-breaking voids large enough to be seen or felt by the buyer, not a chemically bubble-free film. A sprayed PU skin can still contain microscopic cells below the surface and pass a visual inspection. The problem is gas escaping after the surface has started to set. That is why zero-pinhole work focuses on metering stability, atomization, and film thickness, not only on raw material choice. When the film skins over before trapped air can escape, the result is a pinhole crater. Keeping the surface open long enough for gas to leave is a process target, not a formulation promise.
Can I get zero-pinhole results by adjusting the formulation alone?
A common mistake is to treat every pinhole as a formulation defect. In many footwear lines, the same material that pinholes on one spray cell is acceptable on another. The difference is usually atomizing air, gun distance, ratio stability, or material temperature. That is why I ask for shot records and spray parameters before changing the formula. Adjusting catalyst or surfactant can reduce sensitivity, but it cannot fix a gun that traps air in a thick wet film. If the formulation runs well in an open pour test, the pinhole source is most likely in the spray equipment or the spray path.
Is zero-pinhole PU spraying only for high-end footwear?
It depends on the visible surface and the customer’s inspection standard. For a rough midsole sidewall that will be covered by a cupsole, a few small surface voids may be acceptable. For a smooth toe cap, heel counter, or clear skin, pinholes are a reject. The zero-pinhole bar should follow the part’s visual grade and the downstream finishing steps. A part that is sanded or buffed can tolerate defects that a final surface cannot. The key is to define the acceptance limit before specifying the spray cell, because that limit changes the metering accuracy, robot path, and cleaning design you need.
Is a six-axis robot required for zero-pinhole spraying?
The requirement is not a six-axis robot itself; it is repeatable gun distance and angle. For flat or nearly flat parts, a two-axis or three-axis traversing gun can hold the path well enough. For toe caps, heel counters, and curved midsoles, a six-axis robot is the practical way to keep the gun normal to the surface and the pitch consistent. Manual spraying can make good parts, but not shift after shift. If your part geometry changes from left to right or mixes several sizes, a robot cell is easier to justify. Share your part geometry and target film weight, and we will confirm whether a robot cell or a traversing gun fits the line.
